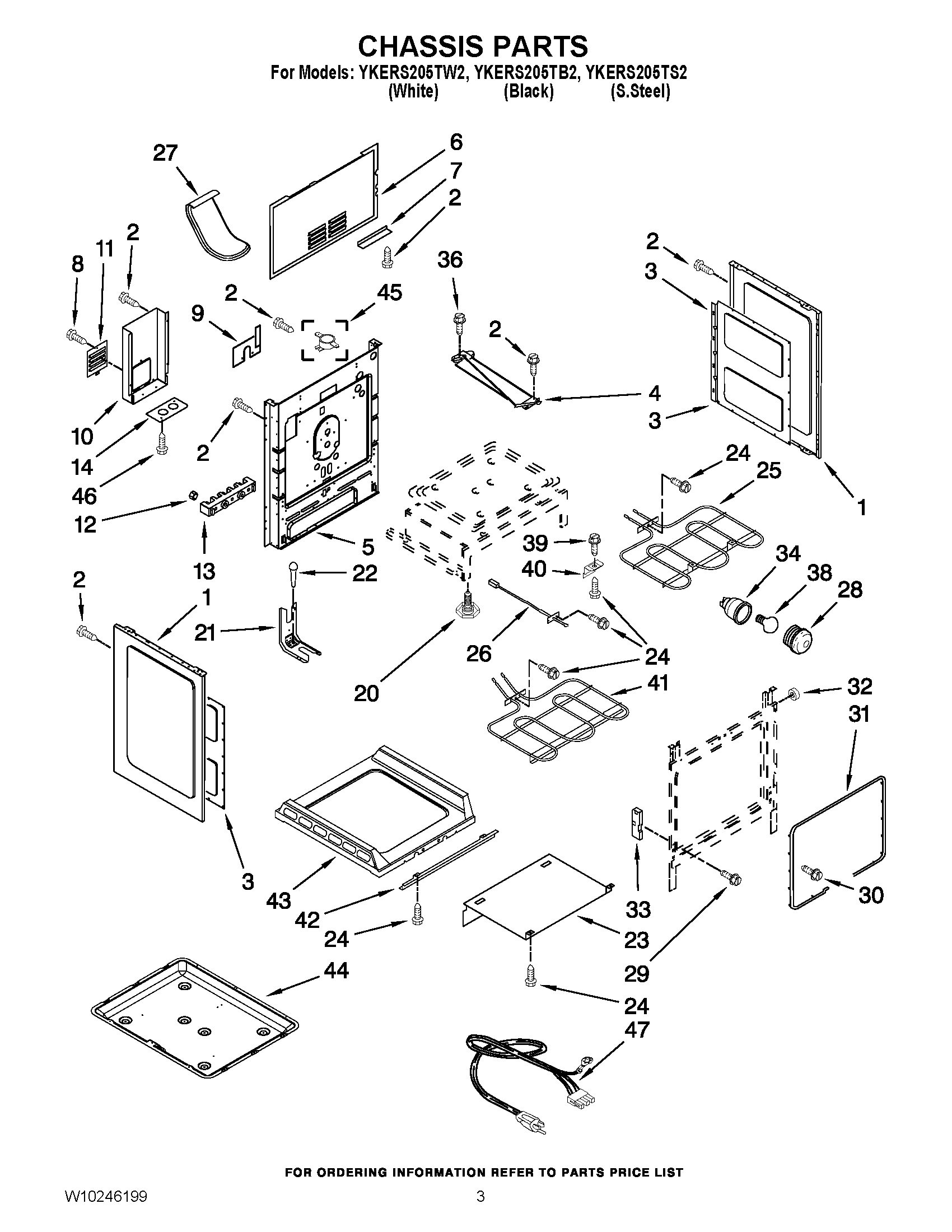

YKERS205TB2 03 – CHASSIS PARTSadmin2025-04-26T11:08:45+00:00YKERS205TB2 03 – CHASSIS PARTS
Products
| Position | Product |
|---|
| NI | Insulation, Wrap |
| NI | Retainer, Insulation |
| NI | Insulation, Back |
| 1 | Panel, Side (Black) |
| 1 | Panel, Side (White) |
| 2 | WP3196175 Whirlpool Screw |
| 4 | Latch Assembly |
| 5 | Main Back |
| 6 | Cover, Main Wire |
| 7 | Bottom Wire Cover |
| 8 | SCREW |
| 9 | Insulator, Cord |
| 10 | Cover, Wire (LWR) |
| 11 | Panel, Access |
| 12 | Nut |
| 13 | Block, Terminal |
| 14 | Plate, Conduit |
| 20 | FOOT, LEVELER |
| 21 | BRACKET, ANTI TIP |
| 22 | SCREW, ANTI-TIP KIT |
| 23 | Shield, Heat |
| 24 | Screw |
| 25 | Element, Broil |
| 26 | Sensor, Oven |
| 27 | Vent, Oven |
| 28 | Lens, Bulb |
| 29 | SCREW |
| 30 | Screw, Shoulder(6) |
| 31 | W11562931 Whirlpool Door Gasket |
| 32 | Spacer, Side Pnl. |
| 33 | Receiver, Hinge |
| 34 | Light Assembly |
| 36 | SCREW |
| 38 | BULB, LIGHT |
| 39 | SCREW |
| 40 | Support, Ov BTM |
| 41 | Element, Bake |
| 42 | Support, Oven |
| 43 | Bottom, Oven |
| 44 | Pan, Bake Brnr |
| 45 | Switch, Terminal |
| 46 | SCREW, HINGE |
| 47 | W11226497 Whirlpool Power Cord |
