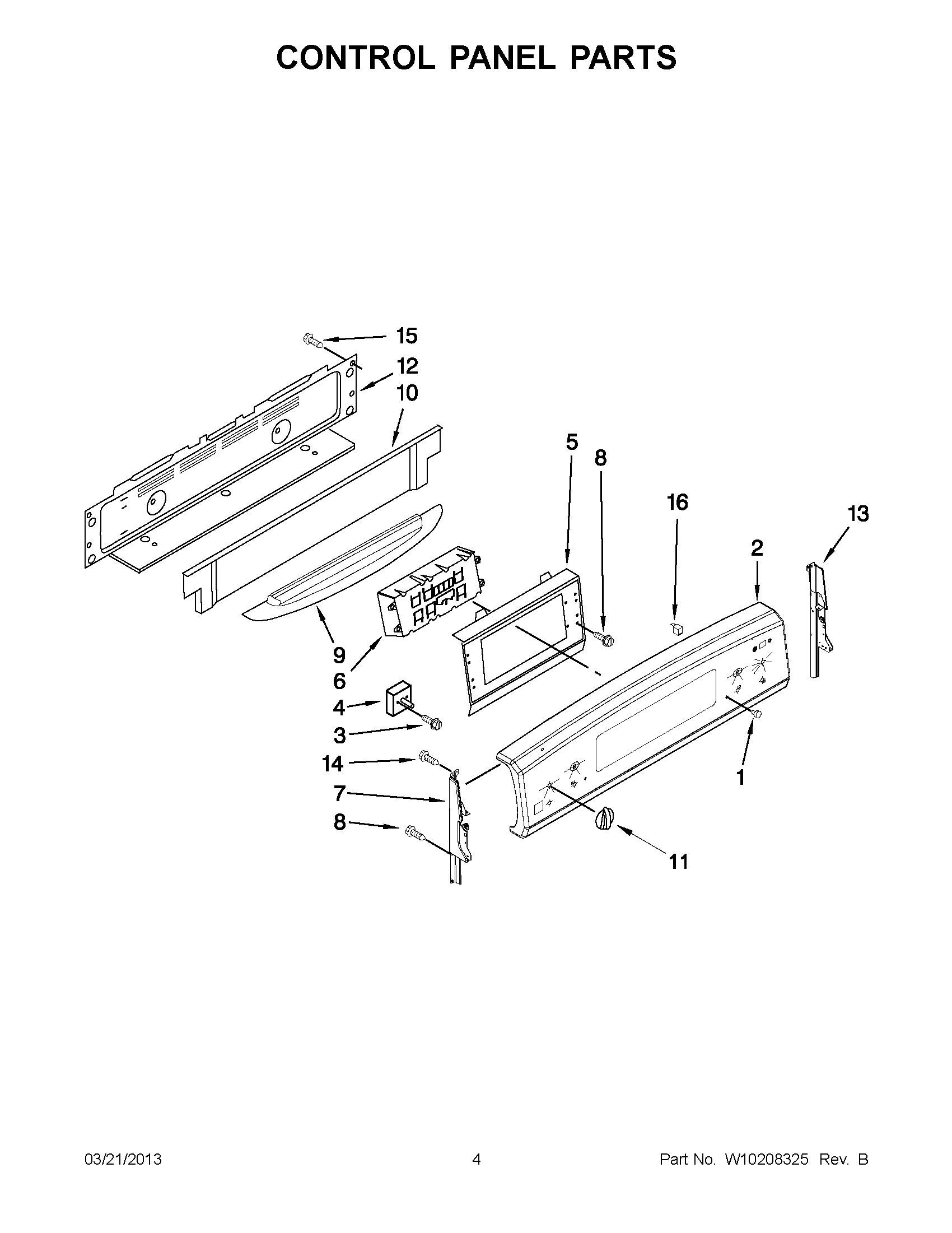

YKERS205TS0 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Lens
2Panel, Backguard Assy (Stainless Steel)
2Panel, Backguard Assy (White)
2Panel, Backguard Assy (Black)
3WPL 7101P30960
4SWITCH-ELMNT
4WP74008940 Whirlpool Infinite Switch
4Switch, Infinite 6“ (LF, RR)
5Bracket, Control
6Control
7ENDCAP (BLACK (LEFT))
7ENDCAP (WHITE (LEFT))
8WP74003976 Whirlpool Screw
9Shield, Heat Visor (Black)
9Shield, Heat Visor (White)
10Shield, Vent
11WPW10160371 Whirlpool Cooktop Stainless Steel Element Knob
11WPW10160368 Whirlpool Knob
11WPW10160370 Whirlpool Knob
12Cover, Rear Wire
13ENDCAP (BLACK (RIGHT))
13ENDCAP (WHITE (RIGHT))
14SCREW
15WP7101P434-60 Whirlpool Screw
16WP74004153 Whirlpool Indicator Light
