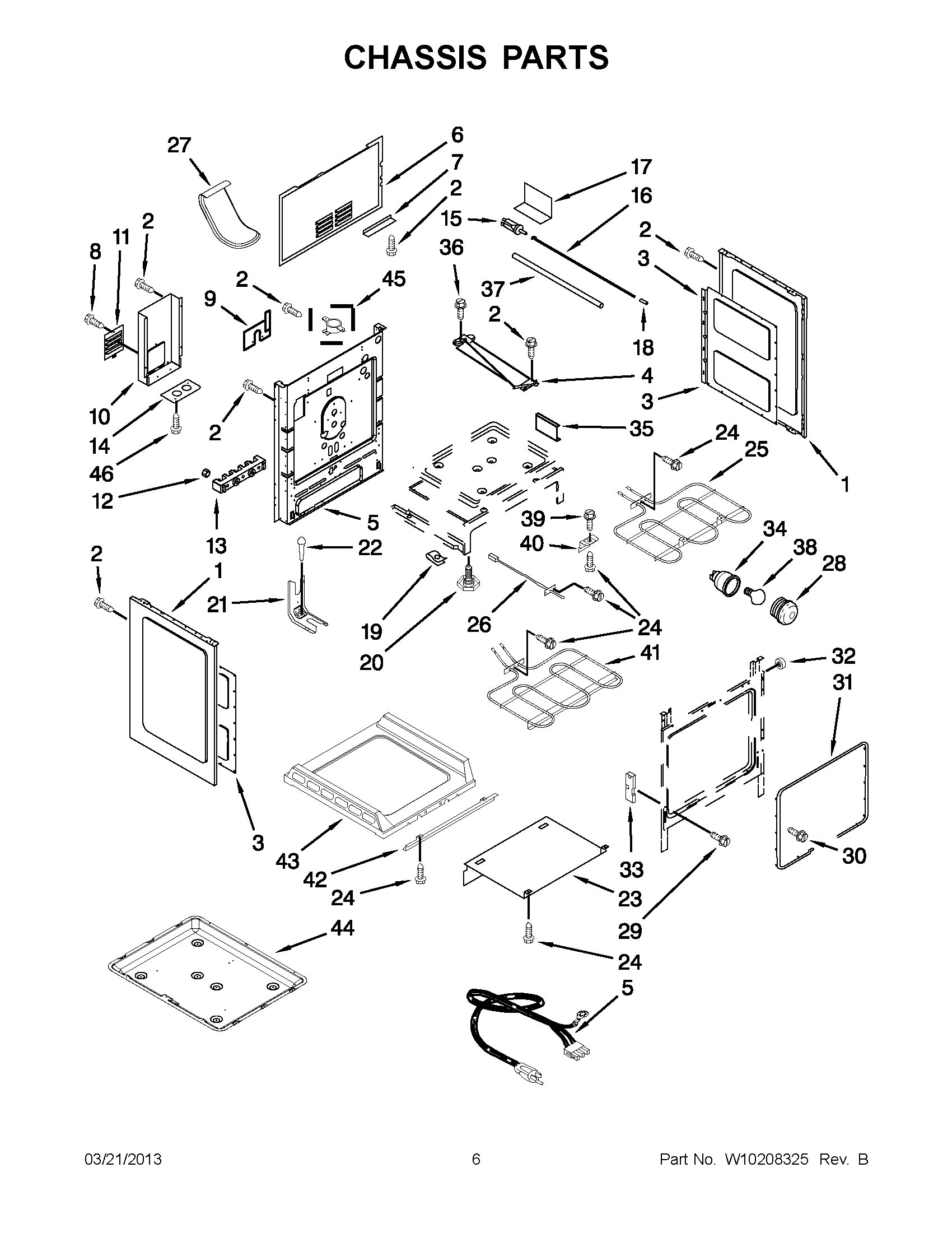

YKERS205TS0 03 – CHASSIS PARTS

Products

Position	Product
NI	Insulation, Wrap
NI	Retainer, Insulation
NI	Insulation, Back
1	Panel, Side (White)
1	Panel, Side (Black)
3	Retainer, Side
4	Latch Assembly
5	Cord, Power
6	Cover, Main Wire
7	Bottom Wire Cover
8	SCREW
9	INSULATOR, POWER CORD
10	Cover, Wire (LWR)
11	Panel, Access
12	Nut
13	Block, Terminal
14	Plate, Conduit
15	74008703 Whirlpool Door Switch
16	Rod, Door Switch
17	Insulator, Shield
18	74008707 Whirlpool Oven Bumper
19	74008835 Whirlpool Clip Retainer
20	W11665456 Whirlpool Range Level Foot
21	WP3801F656-51 Whirlpool Range Anti-Tip Bracket
22	SCREW, ANTI-TIP KIT
23	Shield, Heat
24	SCREW
25	Element, Broil
26	12001656 Whirlpool Range Oven Temperature Sensor
27	Vent, Oven
28	Lens, Bulb
29	SCREW
30	WP7101P434-60 Whirlpool Screw
31	W11562931 Whirlpool Door Gasket
32	74008690 Whirlpool Oven Spacer
33	WP74010551 Whirlpool Receiver
34	WP74011278 Whirlpool Light
35	Bracket, Oven
36	74003975 Whirlpool Screw P1 (8ABX3/8-BLK)
37	Rod, Door Sleeve
38	BULB, LIGHT
39	WP74003976 Whirlpool Screw
40	Support, Ov BTM
41	WPW10276482 Whirlpool Bake Element
42	Support, Oven
43	WPW10211368 Whirlpool Oven Bottom
44	Pan, Bake Brnr
45	74008715 Whirlpool Thermal Limiter Switch
46	SCREW, HINGE
