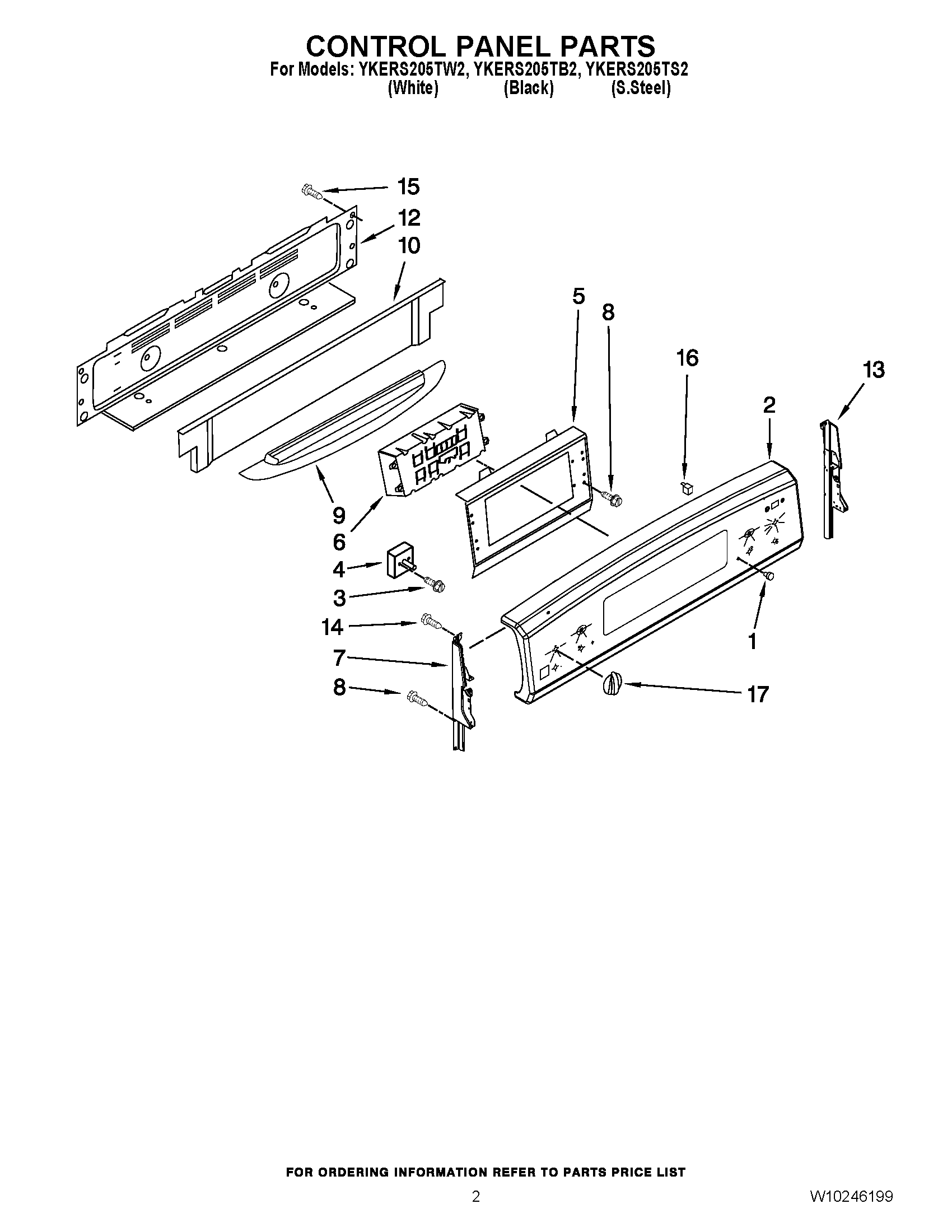

YKERS205TS2 02 – CONTROL PANEL PARTS
Written by
in
YKERS205TS2 02 – CONTROL PANEL PARTS
Products
Position
Product
1
WP3196068 Whirlpool Light Lens
2
Panel, Backguard Assy (Stainless Steel)
2
Panel, Backguard Assy (White)
2
Panel, Backguard Assy (Black)
3
WPL 7101P30960
4
Switch, Infinte (Low Heat)
4
Switch, Infinte (Dual RF/LR (2))
4
SWITCH, INFINITE (RIGHT REAR)
5
Bracket, Control
6
Control
7
End Cap, Left (White)
7
End Cap, Left (Black)
9
Shield, Heat Visor (Black)
9
Shield, Heat Visor (White)
10
Shield, Vent
12
Cover, Rear Wire
13
End Cap, Right (White)
13
End Cap, Right (Black)
14
Screw
15
SCREW
16
Light, Indicator
17
WPW10160371 Whirlpool Cooktop Stainless Steel Element Knob
17
WPW10160370 Whirlpool Knob
17
WPW10160368 Whirlpool Knob
←
