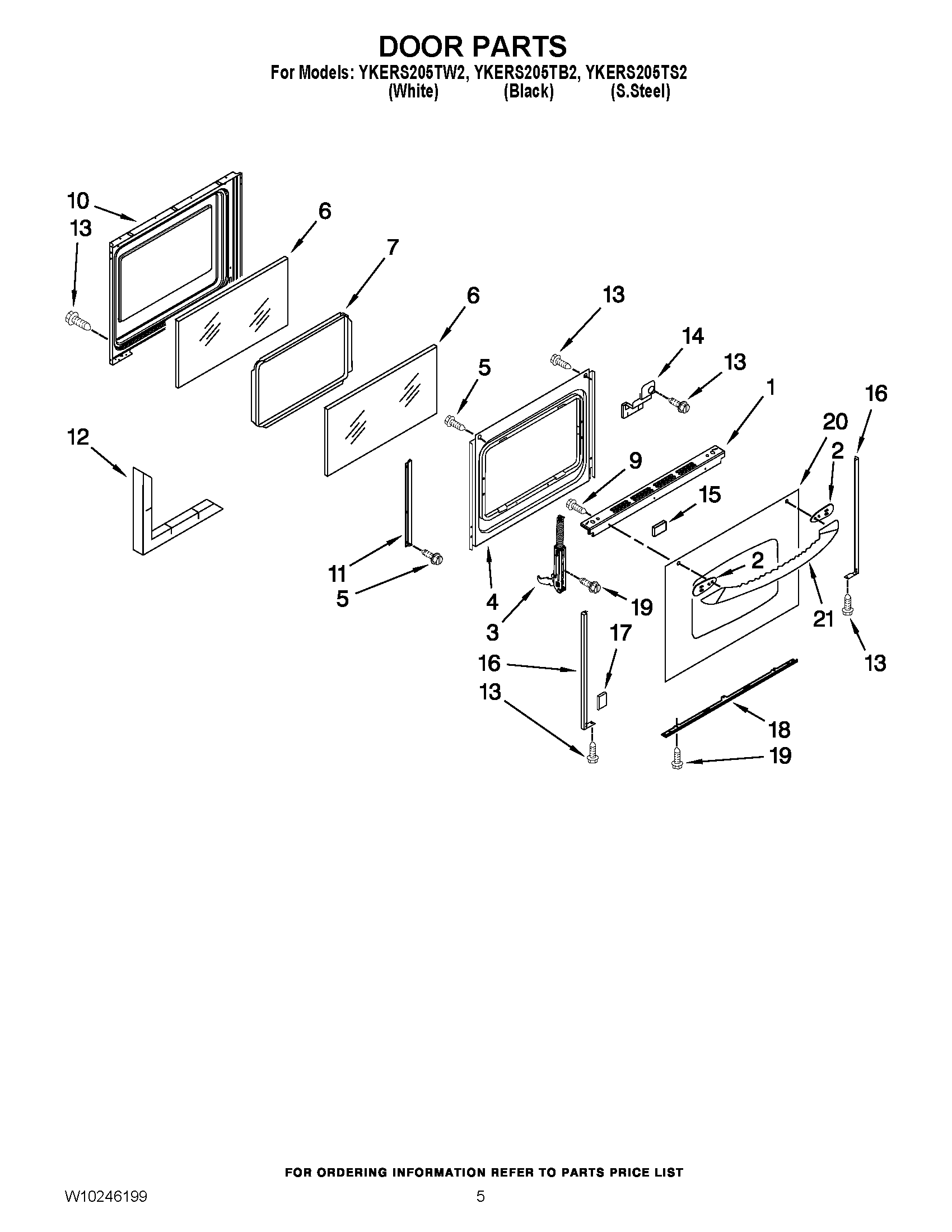

YKERS205TS2 04 – DOOR PARTS

Products

Position	Product
1	Trim, Door Top (White)
1	Trim, Door Top (Black)
2	Spacer, Handle (White)
3	Hinge, Door (2)
4	Baffel, Retainer
5	Screw
6	GLASS, INNER
9	W11164114 Whirlpool Screw
10	Lining, Door
11	Bracket, Glass
12	Insulation, Door
13	SCREW
14	Bracket, Handle (Right)
14	Bracket, Handle (Left)
15	Tape, White
16	Trim, Door Side (White)
16	Trim, Door Side (Black)
17	Tape, Double Sided (White)
17	TAPE, DOUBLE SIDED
18	Trim, Door Bottom (White)
18	Trim, Door Bottom (Black)
19	SCREW
20	GLASS, DOOR (WHITE)
20	GLASS, DOOR (BLACK) (ORDER ITEM No.15 WHEN REPLACING DOOR GLASS)
21	Handle, Door (White)
21	Handle, Door (Black)
21	Handle, Door (S.Steel)
