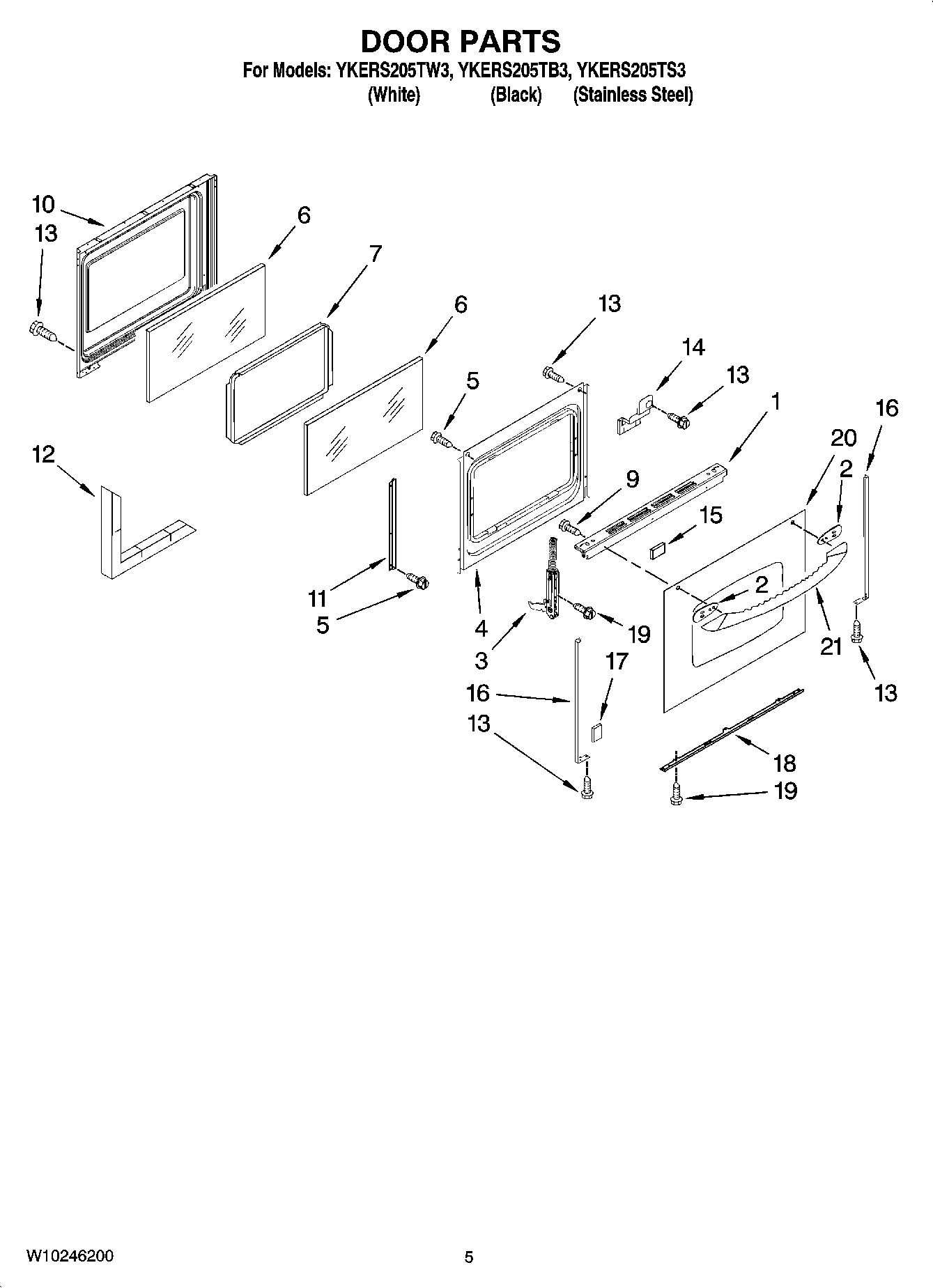

YKERS205TS3 04 – DOOR PARTS

Products

Position	Product
1	Trim, Door Top (White)
1	Trim, Door Top (Black)
2	Spacer, Handle (White)
3	Hinge, Door (2)
4	Baffel, Retainer
5	Screw
6	GLASS, INNER
9	W11164114 Whirlpool Screw
10	Lining, Door
11	Bracket, Glass
12	Insulation, Door
13	SCREW
14	Bracket, Handle (Left)
14	Bracket, Handle (Right)
16	Trim, Door Side (Black)
16	Trim, Door Side (White)
17	Tape, White
17	Tape, Double Sided (Black)
18	Trim, Door Bottom (White)
18	Trim, Door Bottom (Black)
19	SCREW
20	GLASS, DOOR (WHITE)
20	Glass, Door (Order Item 15 When Replacing Door Glass) (Black)
21	Handle, Door (White)
21	Handle, Door (Black)
21	Handle, Door (S.Steel)
