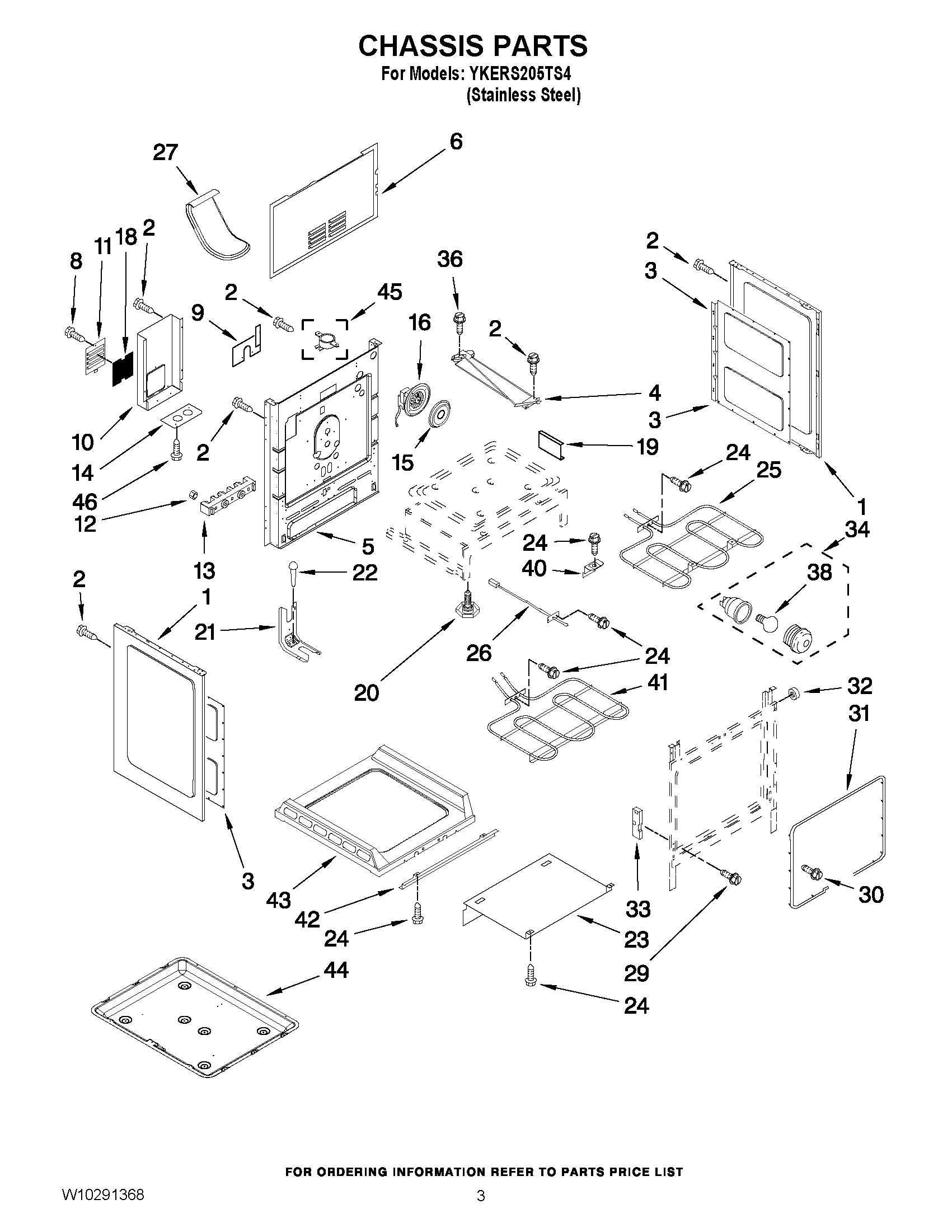

YKERS205TS4 03 – CHASSIS PARTS

Products

Position	Product
NI	Retainer, Insulation
NI	Insulation, Wrap
NI	INSULATION, BACK
NI	W10182346 Whirlpool Insulation Assembly
NI	STRAP, INSULATION
NI	INSULATION, BOTTOM
1	Panel, Side (Black)
2	WP3196175 Whirlpool Screw
3	RETAINER, INSUL.
4	Latch Assembly
5	MAIN BACK
6	COVER, MAIN WIRE
8	W10491985 Whirlpool Screw
9	Insulator, Cord
10	COVER, WIRE (LWR)
11	Panel, Access
12	Nut
13	BLOCK, TERMINAL
14	Plate, Conduit
15	PLATE, CONVECTION
16	FAN, CONVECTION
18	SCREEN, ACCESS
19	BRACKET, OVEN
20	FOOT, LEVELER
21	BRACKET, ANTI TIP
22	SCREW, ANTI-TIP KIT
23	Shield, Heat
24	SCREW
25	Element, Broil
26	WPW10181986 Whirlpool Oven Sensor
27	Vent, Oven
29	SCREW
30	Screw, Shoulder(6)
31	W11562931 Whirlpool Door Gasket
32	Spacer, Side Pnl.
33	Receiver, Hinge
36	W11594027 Whirlpool Range Oven Light Socket
38	BULB, LIGHT
40	Support, Ov BTM
41	Element, Bake
42	Support, Oven
43	WPW10211368 Whirlpool Oven Bottom
44	Pan, Bake Brnr
45	Switch, Terminal
46	SCREW, HINGE
