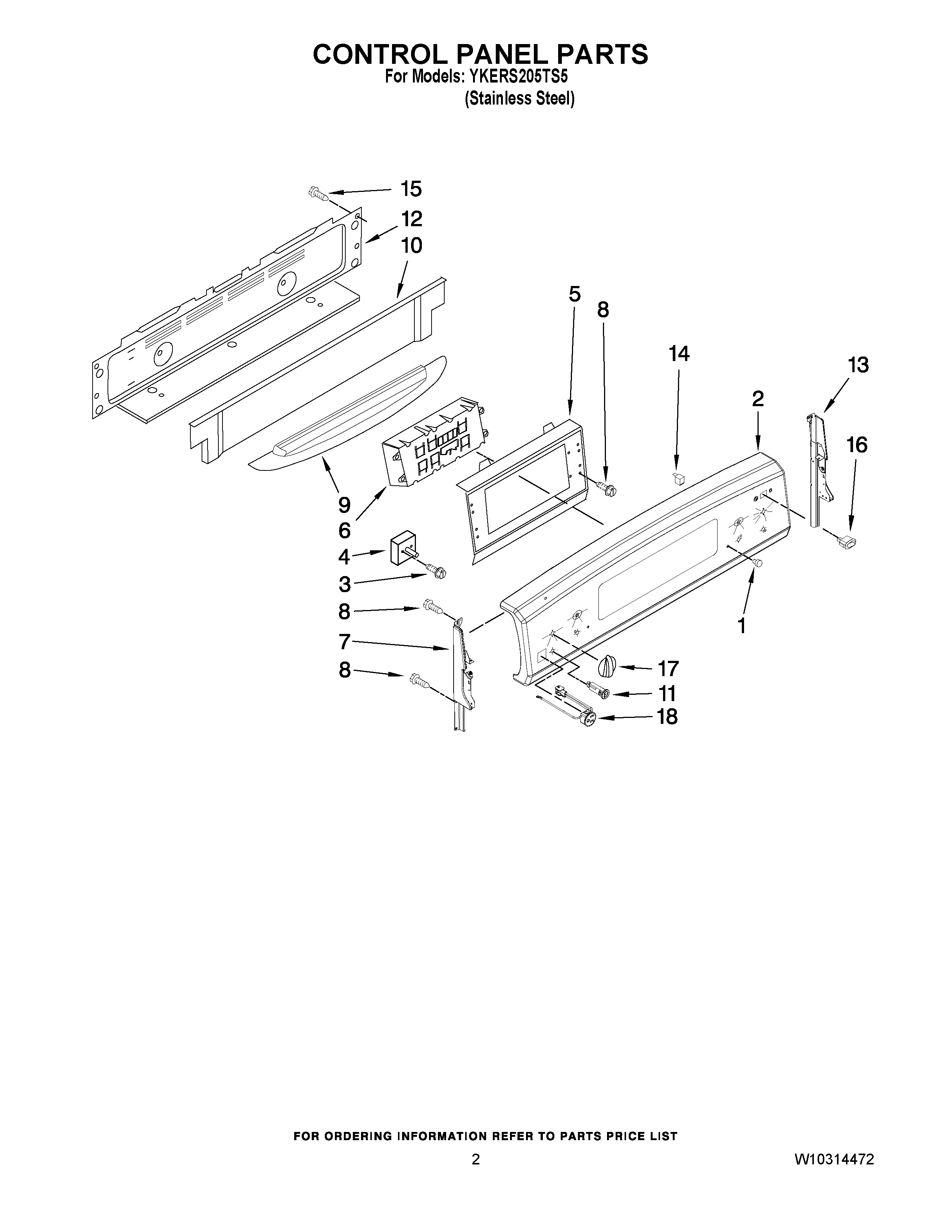

YKERS205TS5 02 – CONTROL PANEL PARTS

Products

PositionProduct
1WP3196068 Whirlpool Light Lens
2Panel, Backguard Assy (Stainless Steel)
3WP3400882 Whirlpool Screw
4SWITCH, INFINITE (LEFT FRONT & RIGHT FRONT)
4SWITCH, INFINITE (RIGHT REAR)
5Bracket, Control
6Control
7End Cap, Left (Black)
9Shield, Heat Visor (Black)
10Shield, Vent
11BREAKER, CIRCUIT
12Cover, Rear Wire
13End Cap, Right (Black)
14WP8523265 Whirlpool Indicator Light
15SCREW
16Switch, Rocker
17WPW10160371 Whirlpool Cooktop Stainless Steel Element Knob
18RECEPTACLE
