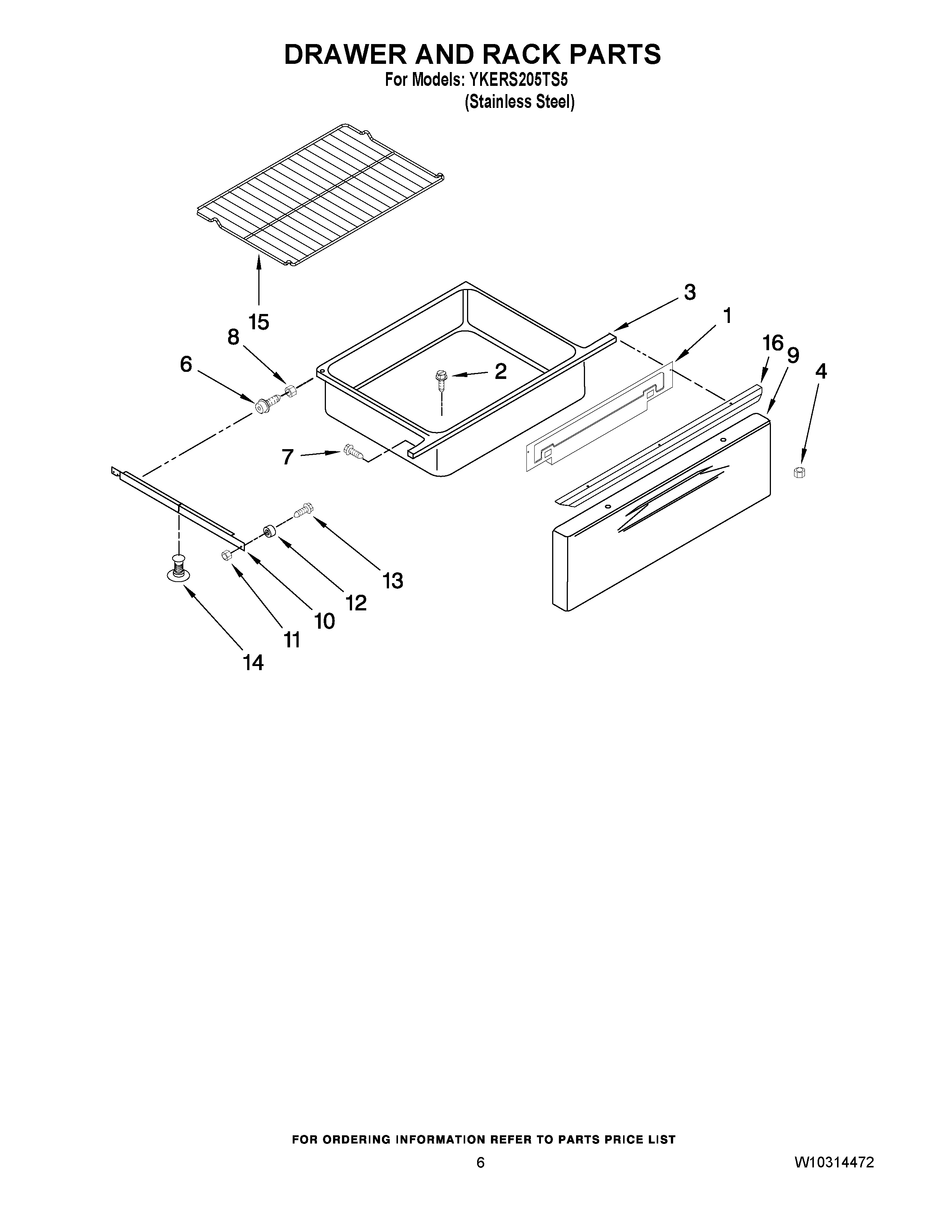

YKERS205TS5 05 – DRAWER AND RACK PARTS

Written by

Products

Position	Product
1	PANEL, INNER
3	Drawer, Storage
7	WP3196175 Whirlpool Screw
8	Nut
9	PANEL, DRAWER
10	Runner, Drawer
11	Nut, Lock
12	ROLLER, DRAWER
13	Shaft, Roller
14	Stop, Drawer
15	WPW10256908 Whirlpool Oven Range Rack
16	HANDLE, DOOR
