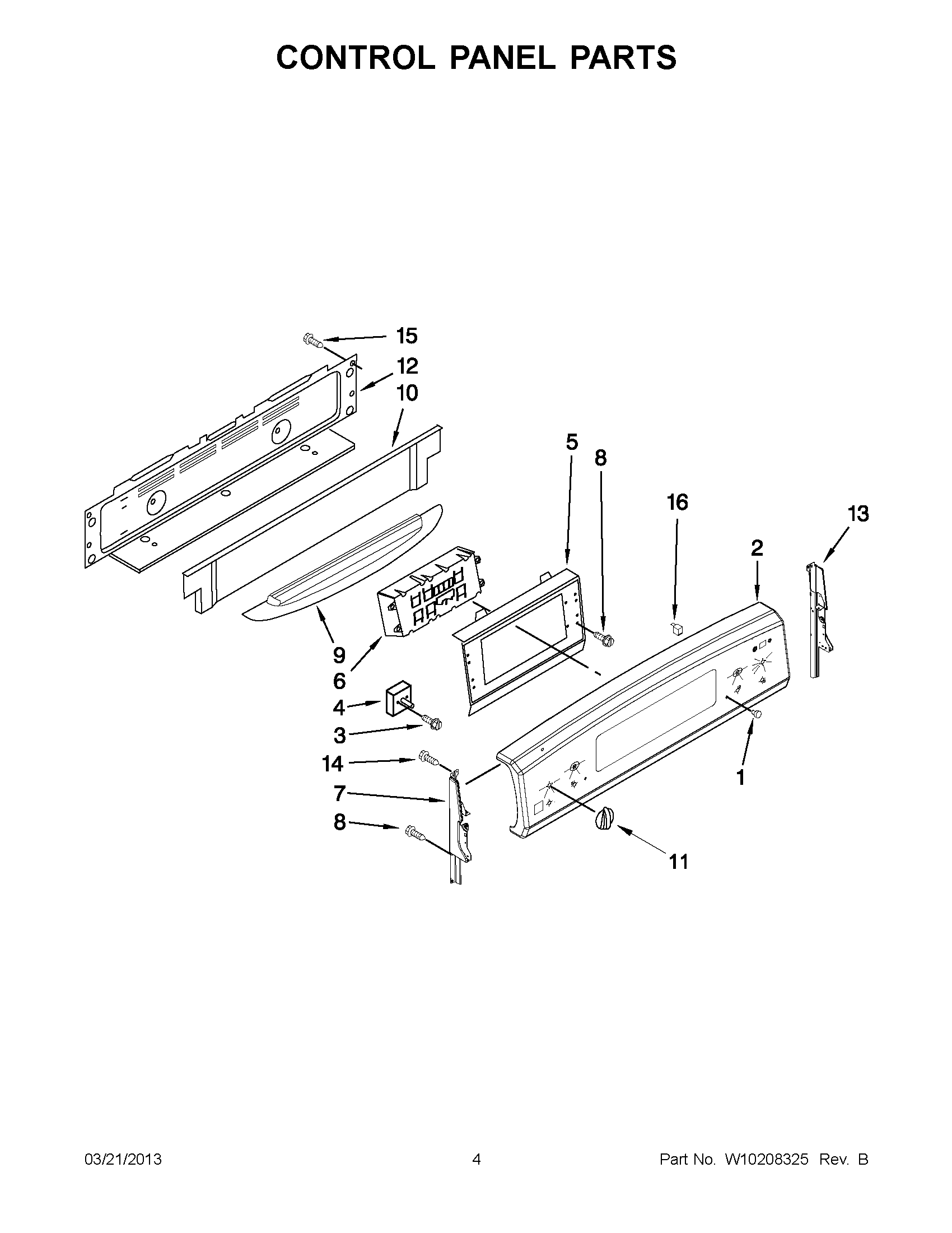

YKERS205TW0 02 – CONTROL PANEL PARTSadmin2025-04-26T11:08:18+00:00YKERS205TW0 02 – CONTROL PANEL PARTS
Products
| Position | Product |
|---|
| 1 | Lens |
| 2 | Panel, Backguard Assy (Stainless Steel) |
| 2 | Panel, Backguard Assy (White) |
| 2 | Panel, Backguard Assy (Black) |
| 3 | WPL 7101P30960 |
| 4 | SWITCH-ELMNT |
| 4 | WP74008940 Whirlpool Infinite Switch |
| 4 | Switch, Infinite 6`` (LF, RR) |
| 5 | Bracket, Control |
| 6 | Control |
| 7 | ENDCAP (BLACK (LEFT)) |
| 7 | ENDCAP (WHITE (LEFT)) |
| 8 | WP74003976 Whirlpool Screw |
| 9 | Shield, Heat Visor (Black) |
| 9 | Shield, Heat Visor (White) |
| 10 | Shield, Vent |
| 11 | WPW10160371 Whirlpool Cooktop Stainless Steel Element Knob |
| 11 | WPW10160368 Whirlpool Knob |
| 11 | WPW10160370 Whirlpool Knob |
| 12 | Cover, Rear Wire |
| 13 | ENDCAP (BLACK (RIGHT)) |
| 13 | ENDCAP (WHITE (RIGHT)) |
| 14 | SCREW |
| 15 | WP7101P434-60 Whirlpool Screw |
| 16 | WP74004153 Whirlpool Indicator Light |
