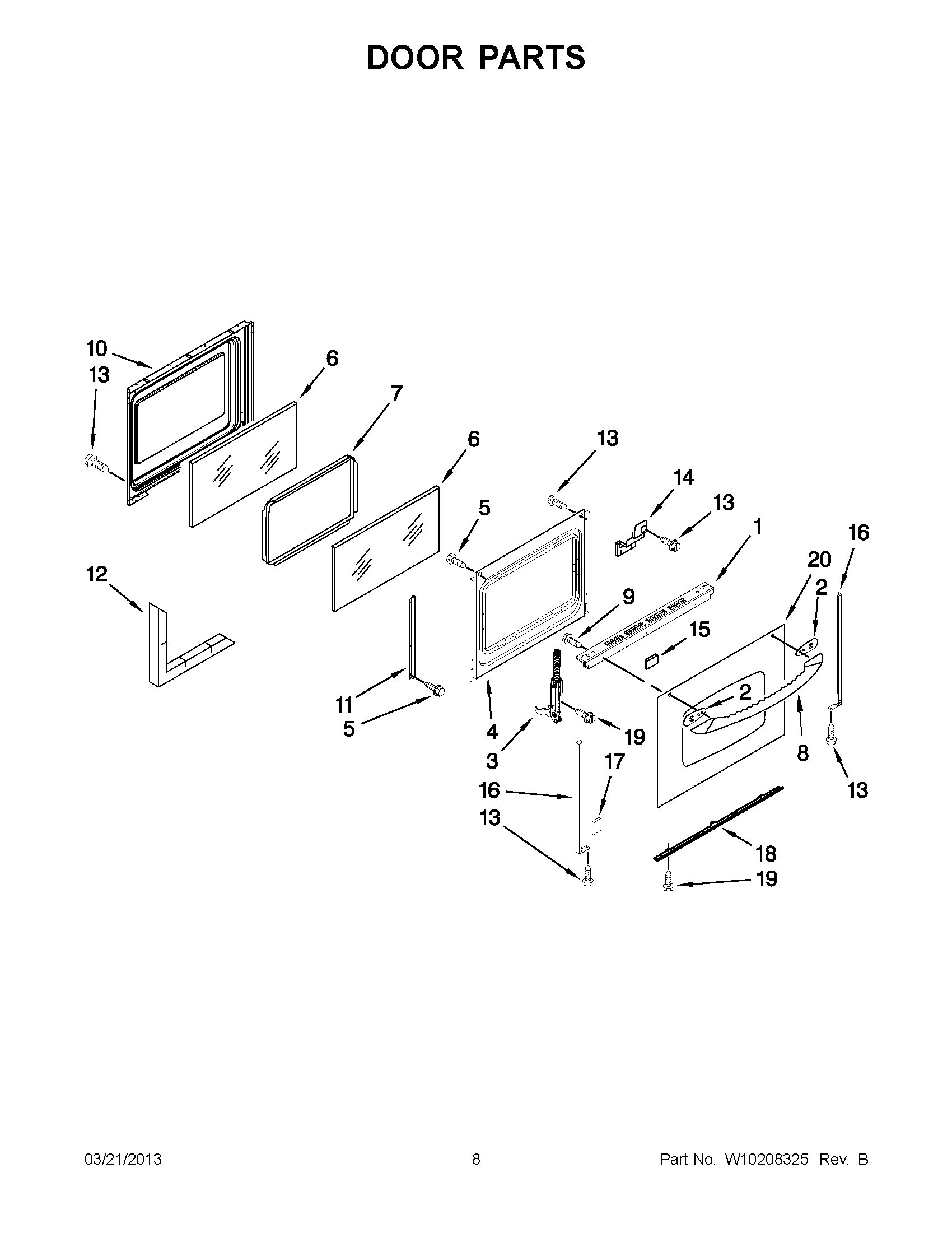

YKERS205TW0 04 – DOOR PARTS

Products

Position	Product
1	Trim, Door Top (White)
1	Trim, Door Top (Black)
2	Spacer, Handle (Black)
2	Spacer, Handle (White)
3	74010546 Whirlpool Range Oven Door Hinge
4	Baffel, Retainer
5	SCREW
6	74003645 Whirlpool Range Oven Door Inner Glass
7	Frame, Glass Inner
8	Handle, Door (S.Steel)
8	Handle, Door (Black)
8	Handle, Door (White)
9	W11164114 Whirlpool Screw
10	Lining, Door
11	3801F886-51 Whirlpool Mounting Bracket
12	Insulation, Door
13	WPY706189 Whirlpool Stove Screw
14	Bracket, Handle (Right)
14	Bracket, Handle (Left)
15	Tape, White
16	Trim, Door Side (Black)
16	Trim, Door Side (White)
17	WP74009025 Whirlpool Double Sided Tape
17	Tape, Double Sided (White)
18	Trim, Door Bottom (White)
18	TRIM, DOOR BOTTOM (BLACK)
19	SCREW
20	GLASS, DOOR (WHITE)
20	GLASS, DOOR (BLACK) (ORDER ITEM No.15 WHEN REPLACING DOOR GLASS)
