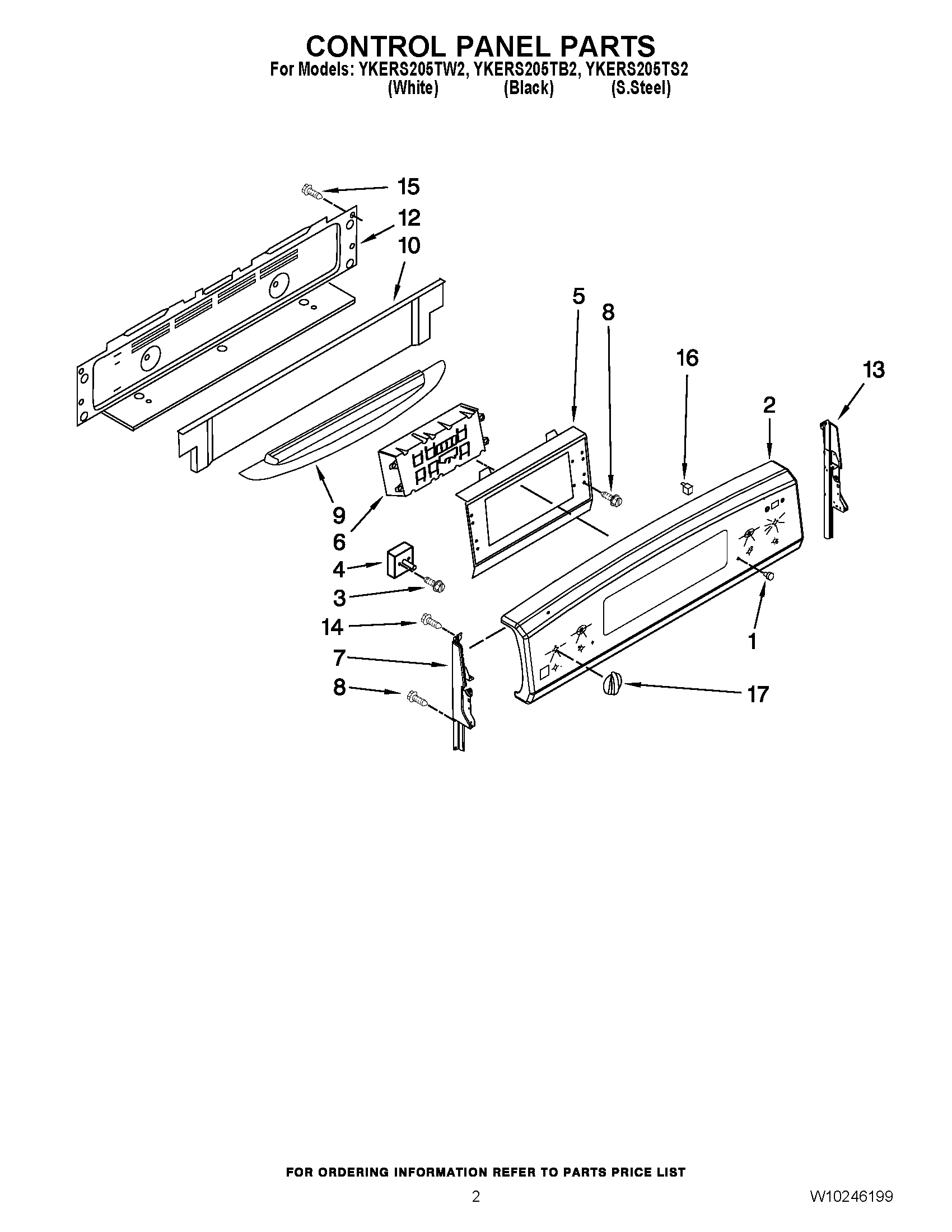

YKERS205TW2 02 – CONTROL PANEL PARTSadmin2025-04-26T11:09:51+00:00YKERS205TW2 02 – CONTROL PANEL PARTS
Products
| Position | Product |
|---|
| 1 | WP3196068 Whirlpool Light Lens |
| 2 | Panel, Backguard Assy (Stainless Steel) |
| 2 | Panel, Backguard Assy (White) |
| 2 | Panel, Backguard Assy (Black) |
| 3 | WPL 7101P30960 |
| 4 | Switch, Infinte (Low Heat) |
| 4 | Switch, Infinte (Dual RF/LR (2)) |
| 4 | SWITCH, INFINITE (RIGHT REAR) |
| 5 | Bracket, Control |
| 6 | Control |
| 7 | End Cap, Left (White) |
| 7 | End Cap, Left (Black) |
| 9 | Shield, Heat Visor (Black) |
| 9 | Shield, Heat Visor (White) |
| 10 | Shield, Vent |
| 12 | Cover, Rear Wire |
| 13 | End Cap, Right (White) |
| 13 | End Cap, Right (Black) |
| 14 | Screw |
| 15 | SCREW |
| 16 | Light, Indicator |
| 17 | WPW10160371 Whirlpool Cooktop Stainless Steel Element Knob |
| 17 | WPW10160370 Whirlpool Knob |
| 17 | WPW10160368 Whirlpool Knob |
