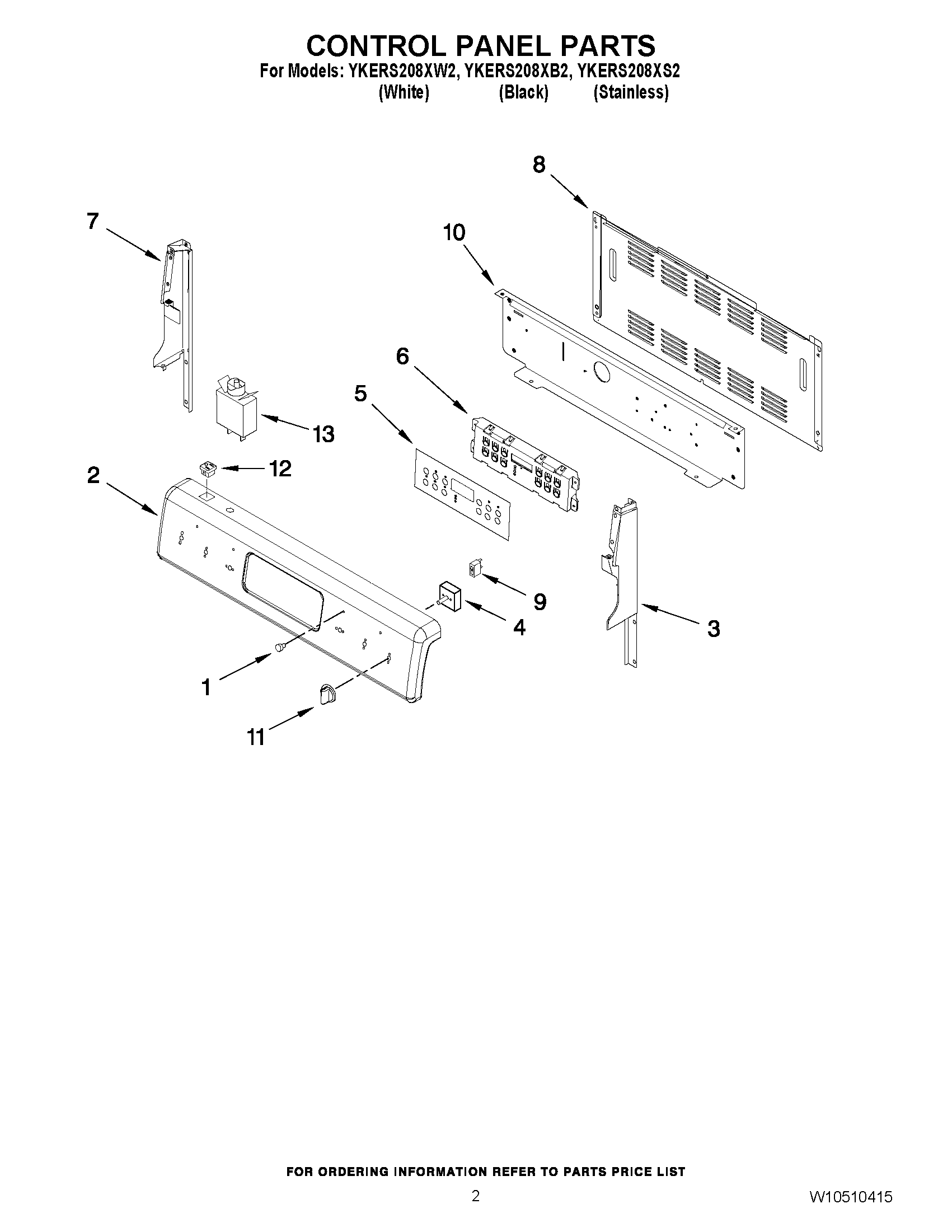

YKERS208XS2 02 – CONTROL PANEL PARTSadmin2025-04-26T11:08:35+00:00YKERS208XS2 02 – CONTROL PANEL PARTS
Products
| Position | Product |
|---|
| 1 | LENS |
| 2 | PANEL & MEMBRANE SWITCH (WHITE) |
| 2 | PANEL & MEMBRANE SWITCH (BLACK) |
| 2 | PANEL & MEMBRANE SWITCH (STAINLESS) |
| 3 | END CAP, RIGHT (BLACK) |
| 3 | END CAP, RIGHT (WHITE) |
| 4 | SWITCH, INFINTE (RADIAN DUAL RF/LF) |
| 4 | SWITCH, INFINTE (WARMER) |
| 4 | W10350098 Whirlpool Infinite Switch |
| 5 | OVERLAY, CONTROL |
| 6 | CONTROL |
| 7 | END CAP, LEFT (BLACK) |
| 7 | END CAP, LEFT (WHITE) |
| 8 | COVER, REAR WIRE |
| 9 | LIGHT/LAMP, INDICATOR, 125V |
| 10 | SHIELD, HEAT (WHITE) |
| 10 | SHIELD, HEAT (BLACK) |
| 11 | KNOB (BLACK) |
| 11 | KNOB (WHITE) |
| 11 | WPW10350602 Whirlpool Knob |
| 12 | OUTLET-ELECTRICAL (WHITE) |
| 12 | OUTLET-ELECTRICAL (BLACK) |
| 13 | BREAKER, CIRCUIT (WHITE) |
| 13 | BREAKER, CIRCUIT (BLACK) |
