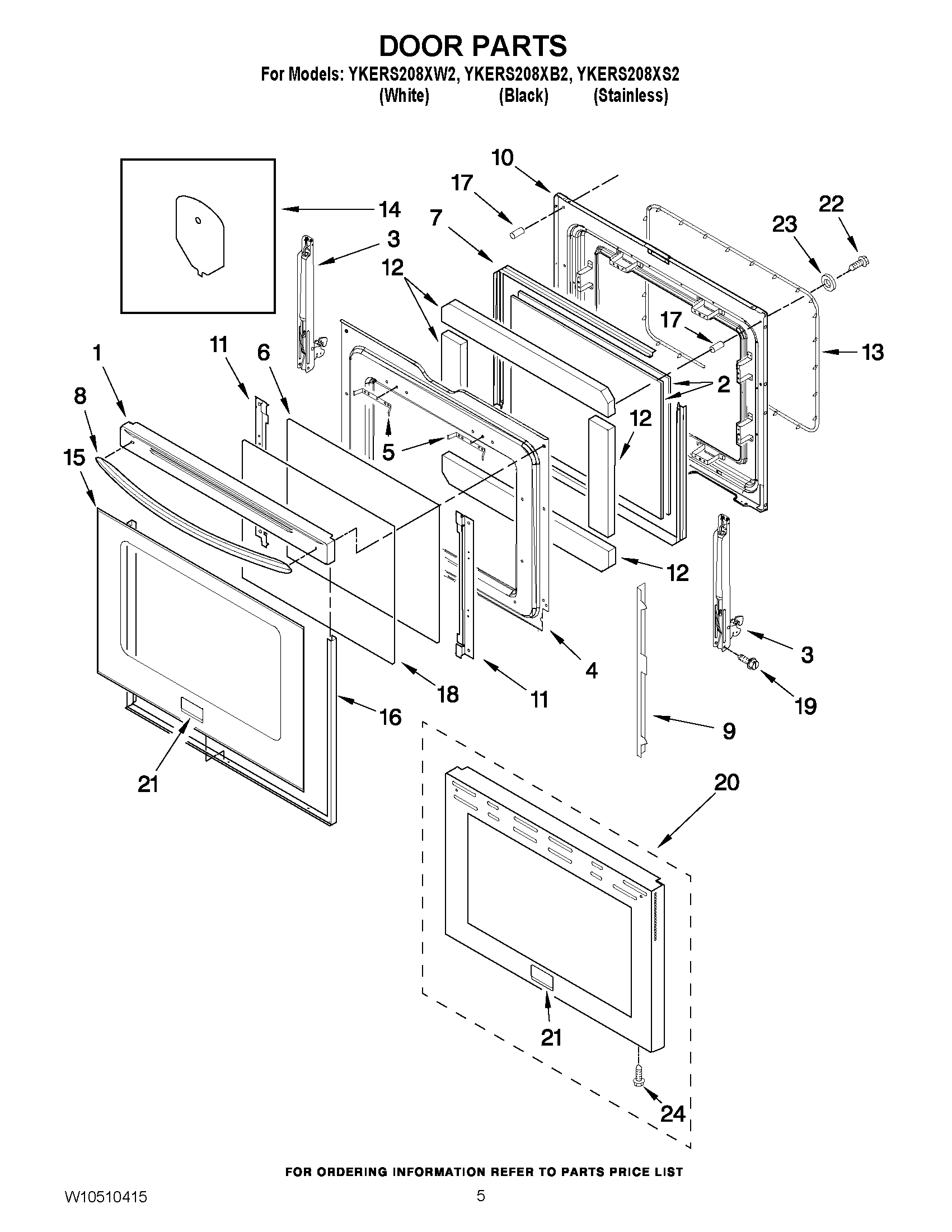

YKERS208XS2 04 – DOOR PARTSadmin2025-04-26T11:09:34+00:00YKERS208XS2 04 – DOOR PARTS
Products
| Position | Product |
|---|
| 1 | TRIM, DOOR TOP (BLACK) |
| 1 | TRIM, DOOR TOP (WHITE) |
| 2 | GLASS, INNER |
| 2 | GLASS, INNER |
| 3 | HINGE, DOOR |
| 4 | RETAINER, DOOR INSULATION |
| 5 | BRACKET, GLASS SPACER (STAINLESS MODEL ONLY) |
| 6 | GLASS, AIRWASH (BLACK) |
| 6 | GLASS, AIRWASH (STAINLESS) |
| 7 | FRAME, GLASS INNER |
| 8 | HANDLE, DRAWER (BLACK) |
| 8 | HANDLE, DOOR (STAINLESS) |
| 8 | HANDLE, DOOR (WHITE) |
| 9 | BRACKET, GLASS DOOR (STAINLESS MODEL ONLY) |
| 10 | LINING, DOOR |
| 11 | BRACKET, GLASS |
| 12 | INSULATION, DOOR |
| 13 | SEAL, DOOR |
| 14 | CLIP, DOOR GLASS |
| 15 | GLASS, DOOR WITH BADGE (BLACK) |
| 15 | GLASS, DOOR WITH BADGE (WHITE) |
| 16 | TRIM, DOOR (BLACK) |
| 16 | TRIM, DOOR (WHITE) |
| 17 | SPACER, DOOR HANDLE STAINLESS MODEL ONLY) |
| 18 | GLASS, OVEN DOOR BLACK WITH FOIL (STAINLESS MODEL ONLY) |
| 19 | SCREW |
| 20 | PANEL, DOOR-OUTER WITH BADGE (STAINLESS MODEL ONLY) |
| 21 | Nameplate (White) |
| 21 | W10852683 Whirlpool Nameplate |
| 22 | SCREW, DOOR |
| 22 | SCREW, DOOR (BLACK) |
| 22 | SCREW, DOOR (WHITE) |
| 23 | WASHER, DOOR |
| 24 | SCREW, DOOR PANEL |
