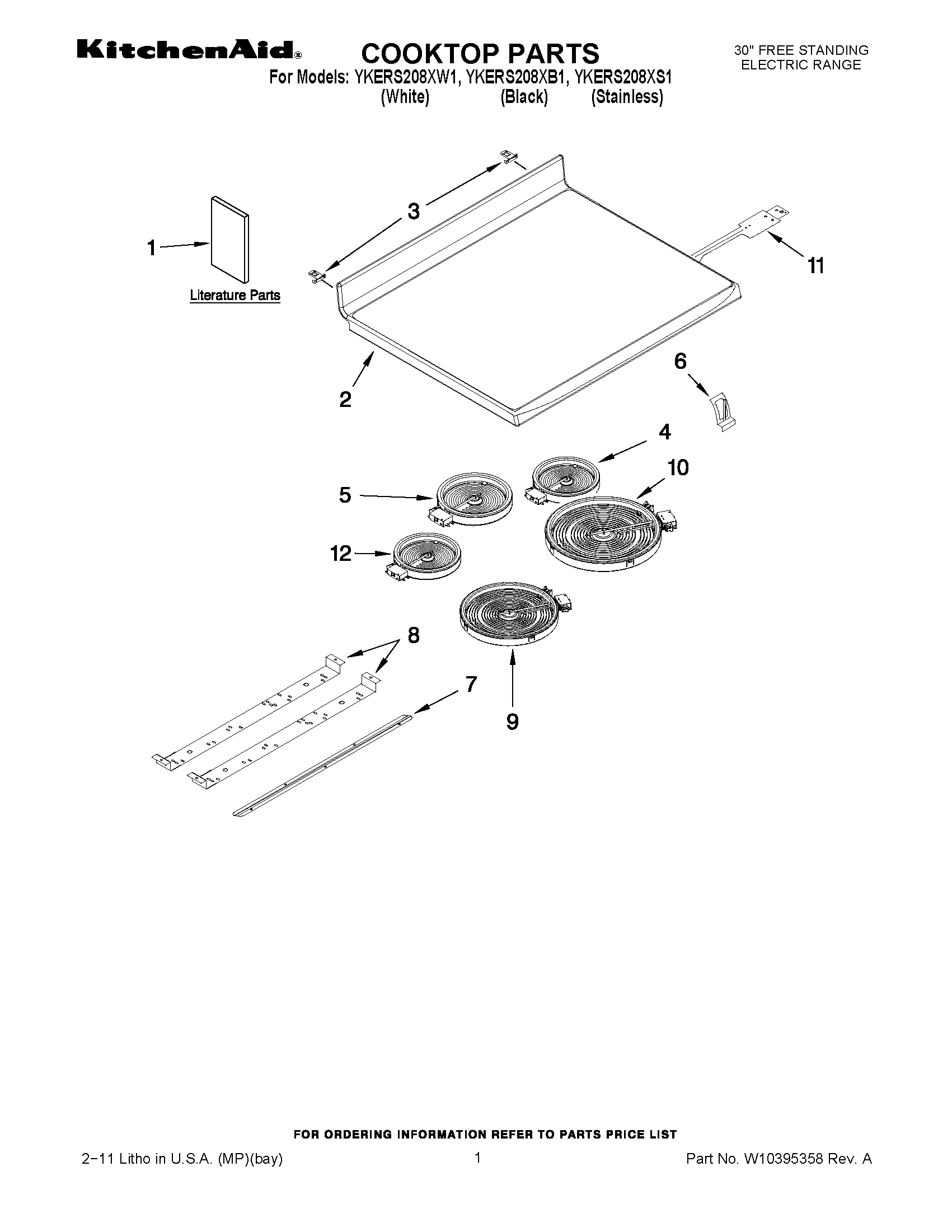

YKERS208XW1 01 – COOKTOP PARTS

Products

Position	Product
1	INSTALLATION INSTRUCTIONS
1	TECH SHEET
1	USE & CARE GUIDE (FRENCH)
1	USE & CARE GUIDE (ENGLISH)
2	COOKTOP (BLACK)
2	COOKTOP (STAINLESS)
2	WPW10362863 Whirlpool Cooktop
3	HINGE BRACKET COOKTOP
4	ELEMENT, LR/RR
5	ELEMENT, WARM
6	CLIP, ELEMENT
7	BRACKET, SUPPORT COOKTOP, FRONT
8	CHANNEL, ELEMENT SUPPORT
9	W11517959 Whirlpool Electric Range Radiant Surface Element
10	ELEMENT, RF
11	BRACKET, SUPPORT ELEMENT
12	ELEMENT, LR
