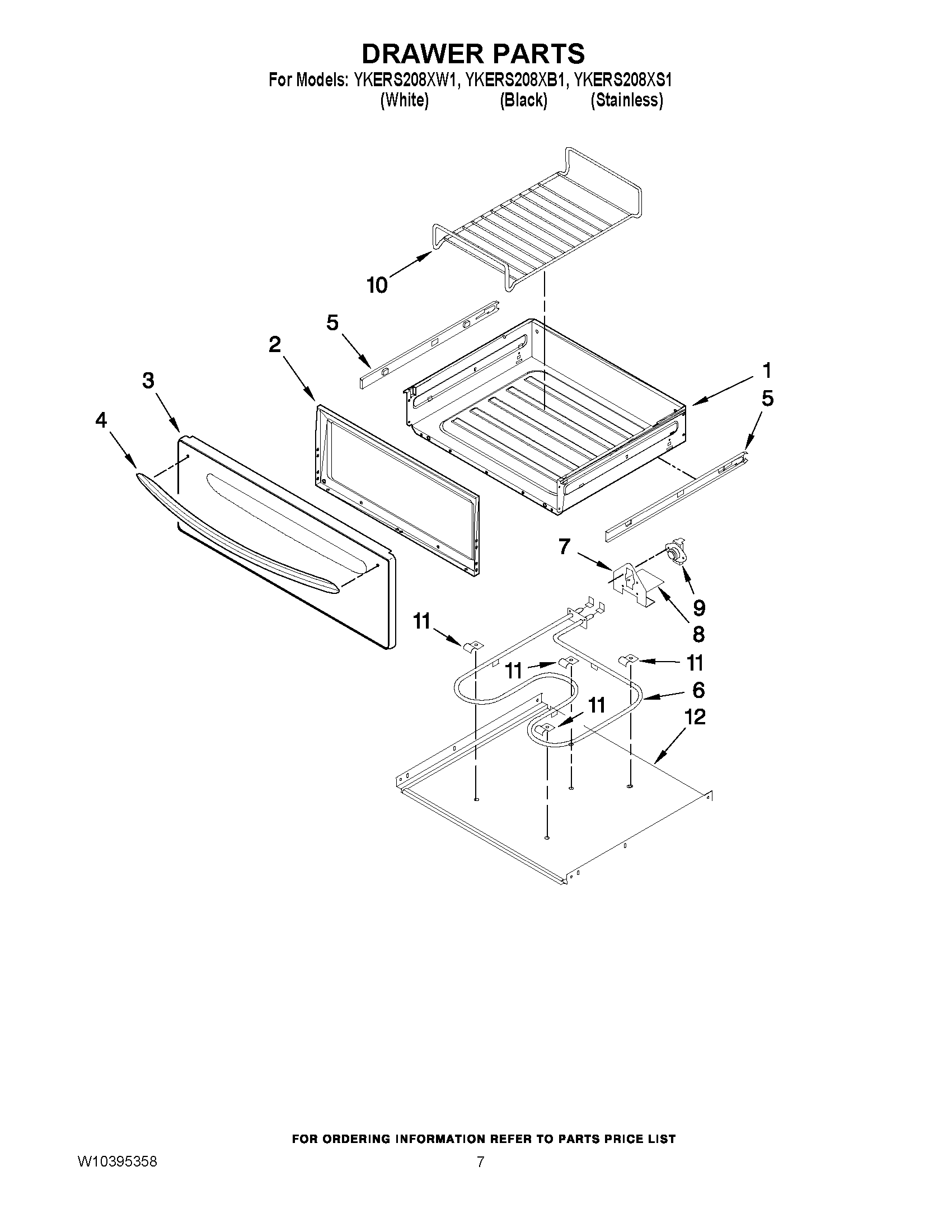

YKERS208XW1 05 – DRAWER PARTS

YKERS208XW1 05 – DRAWER PARTS

Written by

in

YKERS208XW1 05 – DRAWER PARTS

Products

PositionProduct
1DRAWER, UTILITY
2LINER, DRAWER
3FRONT FRAME PANEL, DRAWER (WHITE)
3FRONT FRAME PANEL, DRAWER (STAINLESS)
3PANEL, DRAWER (BLACK)
4HANDLE, DRAWER (BLACK)
4HANDLE, DOOR (WHITE)
4HANDLE, DOOR (STAINLESS)
5GLIDE, DRAWER (LH)
5GLIDE, DRAWER (RH)
6ELEMENT-BAKE WARMING DRAWER
7BRACKET, ELEMENT
8SHIELD-TERMINAL WARMING DRAWER
9THERMO DISC
10RACK, WARMING DRAWER
11CLIP, HOLD DOWN
12BASE, WARMING DRAWER
