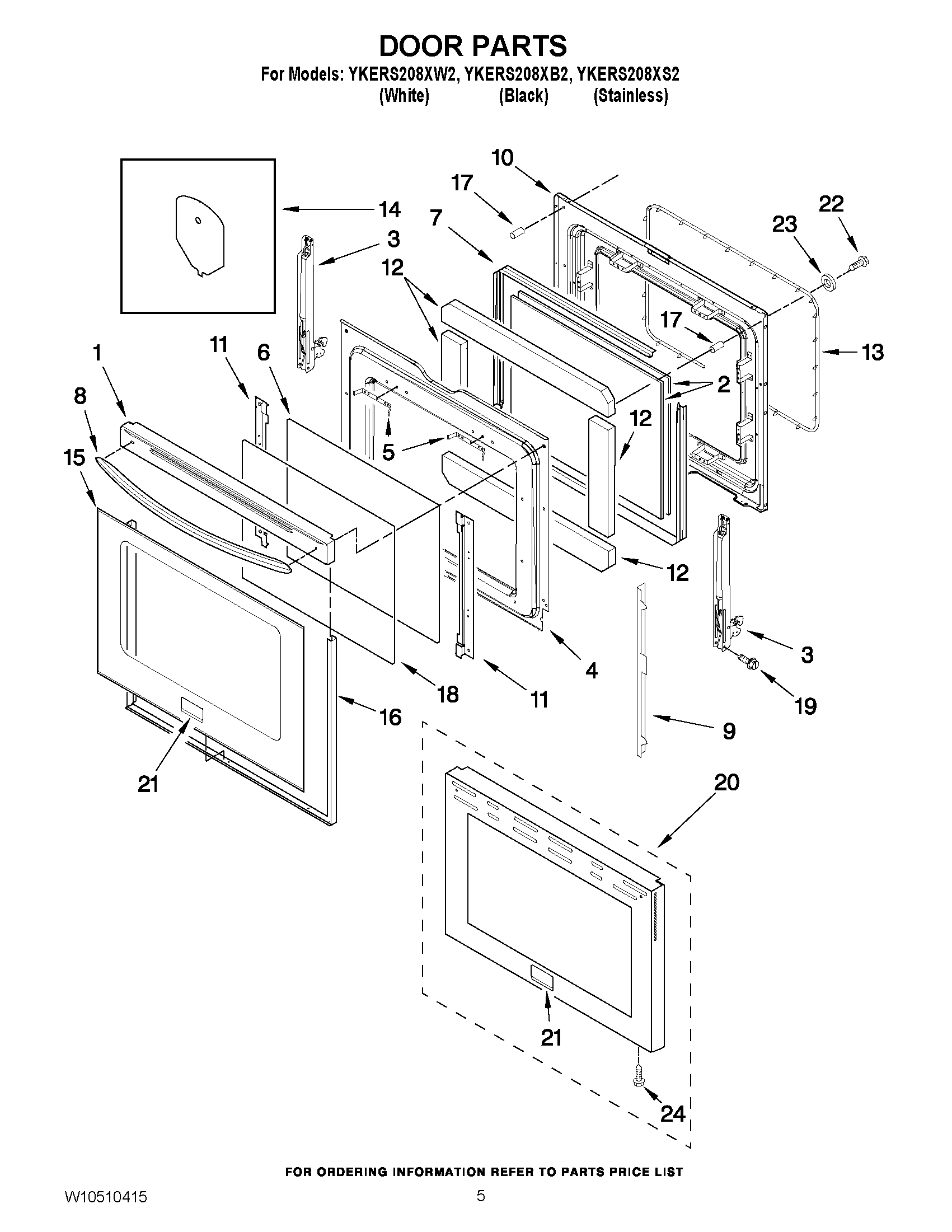

YKERS208XW2 04 – DOOR PARTS

Products

Position	Product
1	TRIM, DOOR TOP (BLACK)
1	TRIM, DOOR TOP (WHITE)
2	GLASS, INNER
2	GLASS, INNER
3	HINGE, DOOR
4	RETAINER, DOOR INSULATION
5	BRACKET, GLASS SPACER (STAINLESS MODEL ONLY)
6	GLASS, AIRWASH (BLACK)
6	GLASS, AIRWASH (STAINLESS)
7	FRAME, GLASS INNER
8	HANDLE, DRAWER (BLACK)
8	HANDLE, DOOR (STAINLESS)
8	HANDLE, DOOR (WHITE)
9	BRACKET, GLASS DOOR (STAINLESS MODEL ONLY)
10	LINING, DOOR
11	BRACKET, GLASS
12	INSULATION, DOOR
13	SEAL, DOOR
14	CLIP, DOOR GLASS
15	GLASS, DOOR WITH BADGE (BLACK)
15	GLASS, DOOR WITH BADGE (WHITE)
16	TRIM, DOOR (BLACK)
16	TRIM, DOOR (WHITE)
17	SPACER, DOOR HANDLE STAINLESS MODEL ONLY)
18	GLASS, OVEN DOOR BLACK WITH FOIL (STAINLESS MODEL ONLY)
19	SCREW
20	PANEL, DOOR-OUTER WITH BADGE (STAINLESS MODEL ONLY)
21	Nameplate (White)
21	W10852683 Whirlpool Nameplate
22	SCREW, DOOR
22	SCREW, DOOR (BLACK)
22	SCREW, DOOR (WHITE)
23	WASHER, DOOR
24	SCREW, DOOR PANEL
