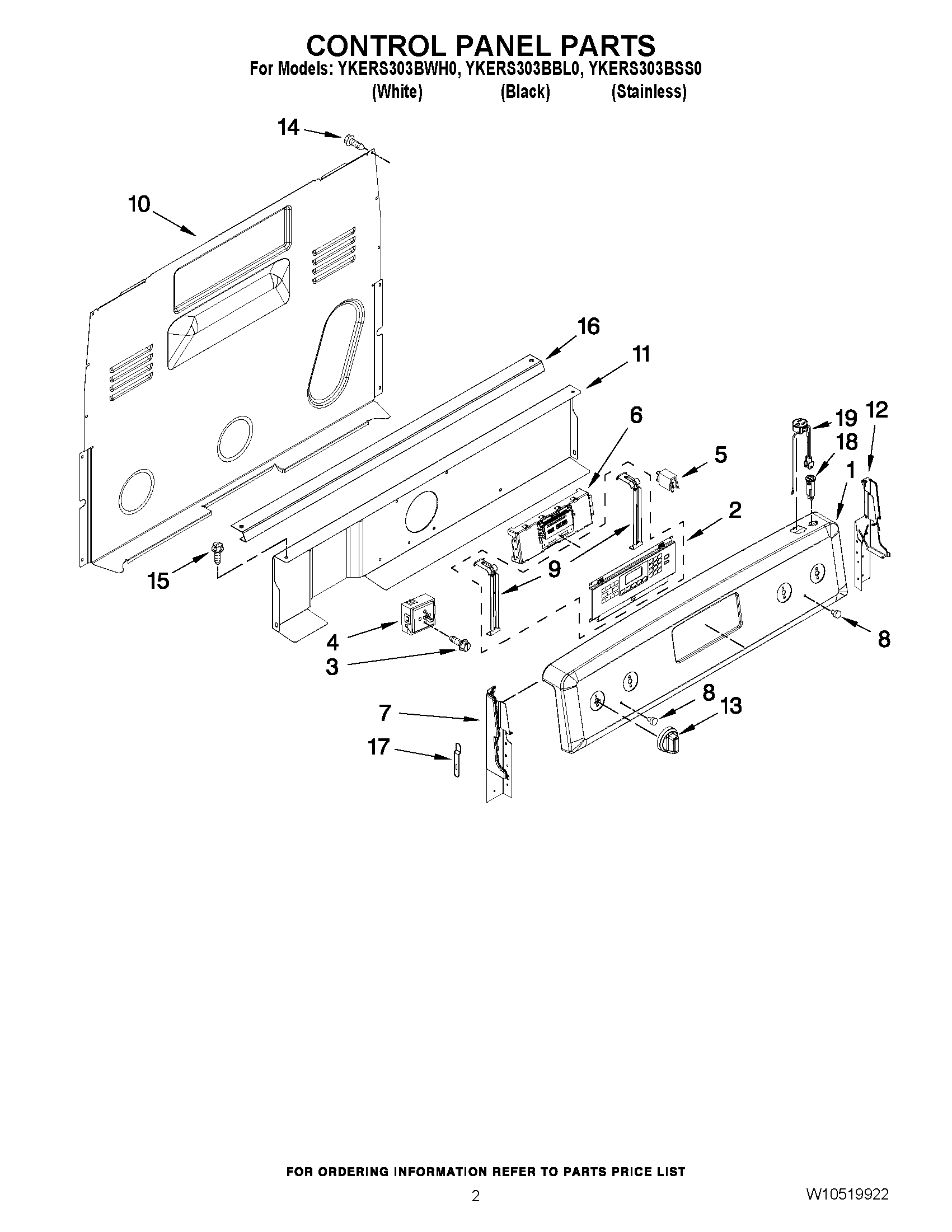

YKERS303BBL0 02 – CONTROL PANEL PARTS

Products

PositionProduct
1PANEL, BACKGUARD (STAINLESS)
1CONSOLE, PANEL (WHITE)
1CONSOLE, PANEL (BLACK)
2ASSEMBLY, ACTIVE OVERLAY
3WP3400882 Whirlpool Screw
4WPW10411934 Whirlpool Infinite Switch
4WP3149404 Whirlpool Oven Surface Element Switch
4WPW10391743 Whirlpool Infinite Switch
5WP8523265 Whirlpool Indicator Light
6WPW10340695 Whirlpool Electronic Control Board + Core
7W11219365 Whirlpool Panel Endcap
7W11219664 Whirlpool Endcap Panel
8WP3196068 Whirlpool Light Lens
9BRACKET, CONTROL
10WP8272473 Whirlpool Rear Cover
11W10134247 Whirlpool Heat Shield
12W11219370 Whirlpool Endcap Panel
12W11219665 Whirlpool Panel Endcap
13W10524672 Whirlpool Knob Assembly
13W10524673 Whirlpool Knob
13W10854052 Whirlpool Knob
14WP3196175 Whirlpool Screw
15SCREW
16W10525121 Whirlpool Control Bracket
173196200 Whirlpool Clip
18WP9757602 Whirlpool Breaker
18WP9757601 Whirlpool Breaker
19W10849725 Whirlpool Electrical Outlet
19W10861164 Whirlpool Electrical Outlet
