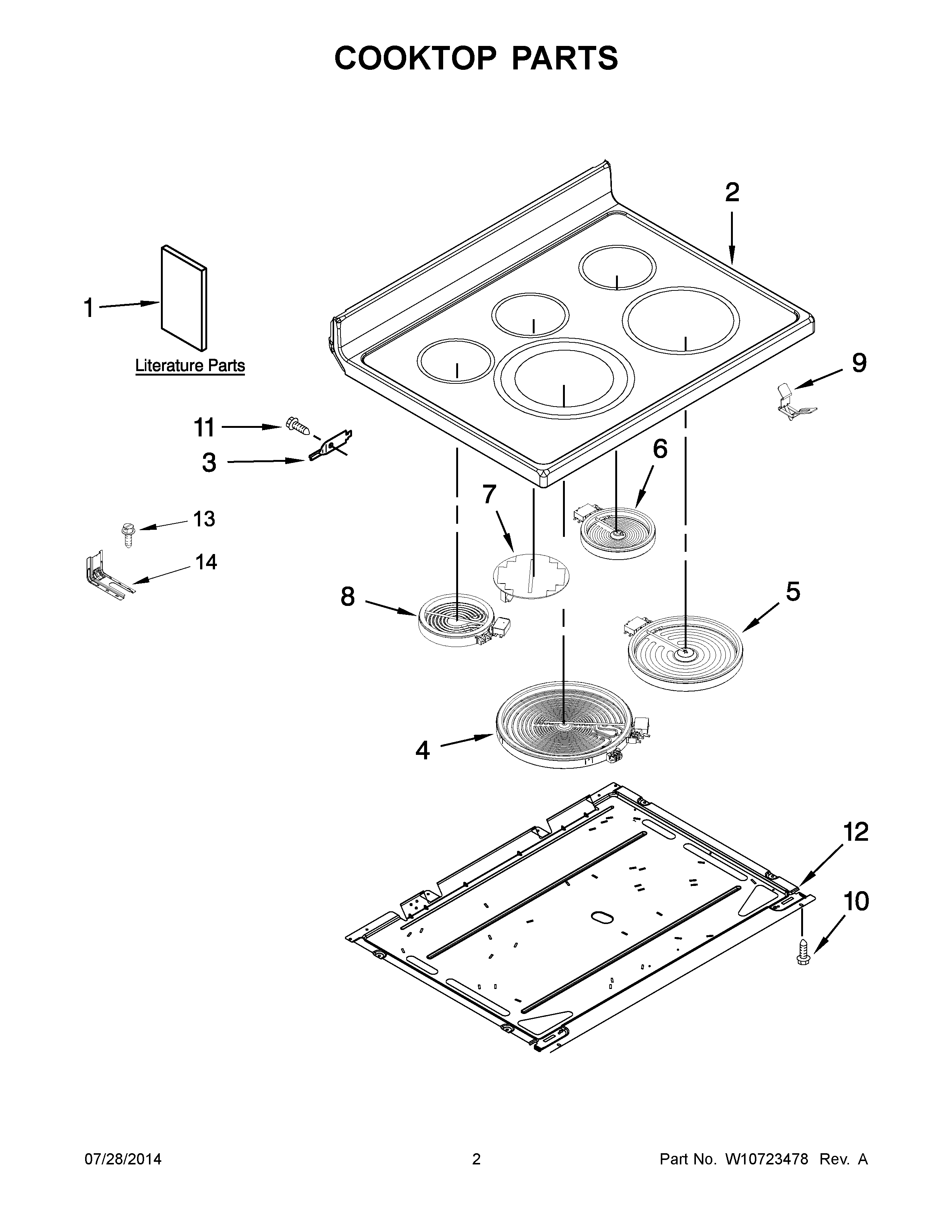

YKERS303BWH1 02 – COOKTOP PARTS

Products

Position	Product
NI	SCREW
NI	HARNESS, COOKTOP LEFT
NI	HARNESS, WIRE (COOKTOP RIGHT)
NI	W11212183 Whirlpool Wire Harness
NI	W11134592 Whirlpool Wire Harness
NI	HARNESS, MAIN
NI	CABINET (NOT A SERVICEABLE PART)
1	USE AND CARE GUIDE
1C	INSTRUCTIONS, INSTALLATION
1E	Safer Cooking Tips (French)
1D	SAFER COOKING TIPS (ENGLISH
1A	TECH SHEET, (ENGLISH)
1G	QUICK START GUIDE (FRENCH)
1F	QUICK START GUIDE
1B	TECH SHEET, (FRENCH)
2	W10524413 Whirlpool Cooktop
2A	COOKTOP (BLACK)
3	WP3195060 Whirlpool Cooktop Pin
4	WPW10162041 Whirlpool Surface Element
5	WPW10251108 Whirlpool Range Cooktop 3200W Radiant Surface Element
6	ELMNT-SURF
7	W11047668 Whirlpool Surface Element
8	WPW10342780 Whirlpool Surface Element
9	WPW10225448 Whirlpool Spring Assembly
10	WP3196175 Whirlpool Screw
11	3196172 Whirlpool Oven Screw
12	PAN
13	SCREW, ANTI-TIP KIT
14	W11447673 Whirlpool Range Tip Anchor
