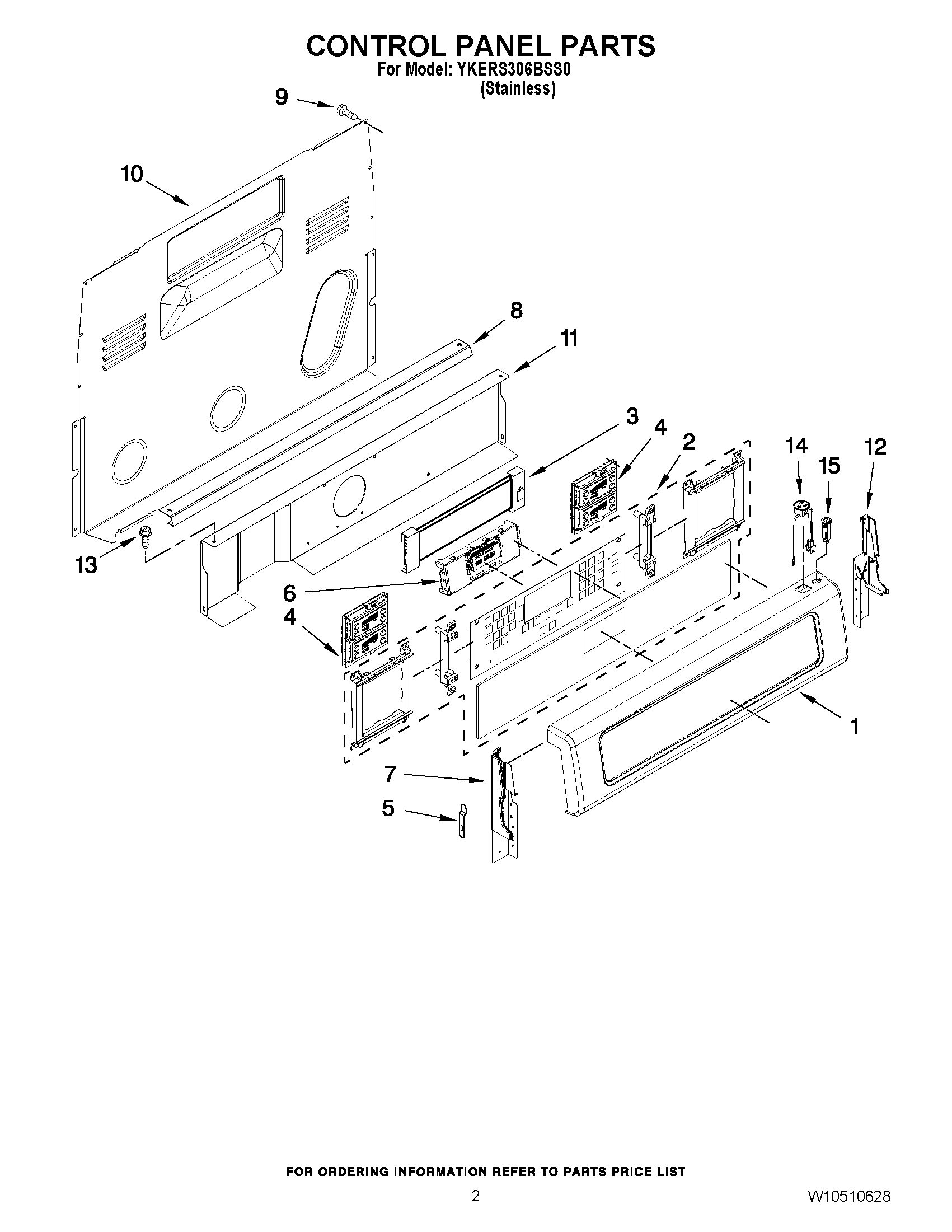

YKERS306BSS0 02 – CONTROL PANEL PARTS

YKERS306BSS0 02 – CONTROL PANEL PARTS

Written by

in

YKERS306BSS0 02 – CONTROL PANEL PARTS

Products

PositionProduct
1PANEL, BACKGUARD
2WPW10726779 Whirlpool Membrane Switch
3WPW10318787 Whirlpool Wire Harness
4WPW10553762-includeCORE Whirlpool WPW10553762 Refrigerator Electronic Control Board + Core
4WPW10341243-includeCORE Whirlpool WPW10341243 Washer Electronic Control Board + Core
53196200 Whirlpool Clip
6WPW10686474 Whirlpool Electronic Control Board + Core
7W11404310 Whirlpool Panel Endcap
8W10525121 Whirlpool Control Bracket
9WP3196175 Whirlpool Screw
10WP8272473 Whirlpool Rear Cover
11W10134247 Whirlpool Heat Shield
12W10409003 Whirlpool Endcap Panel
13SCREW
14W10861164 Whirlpool Electrical Outlet
15WP9757602 Whirlpool Breaker
