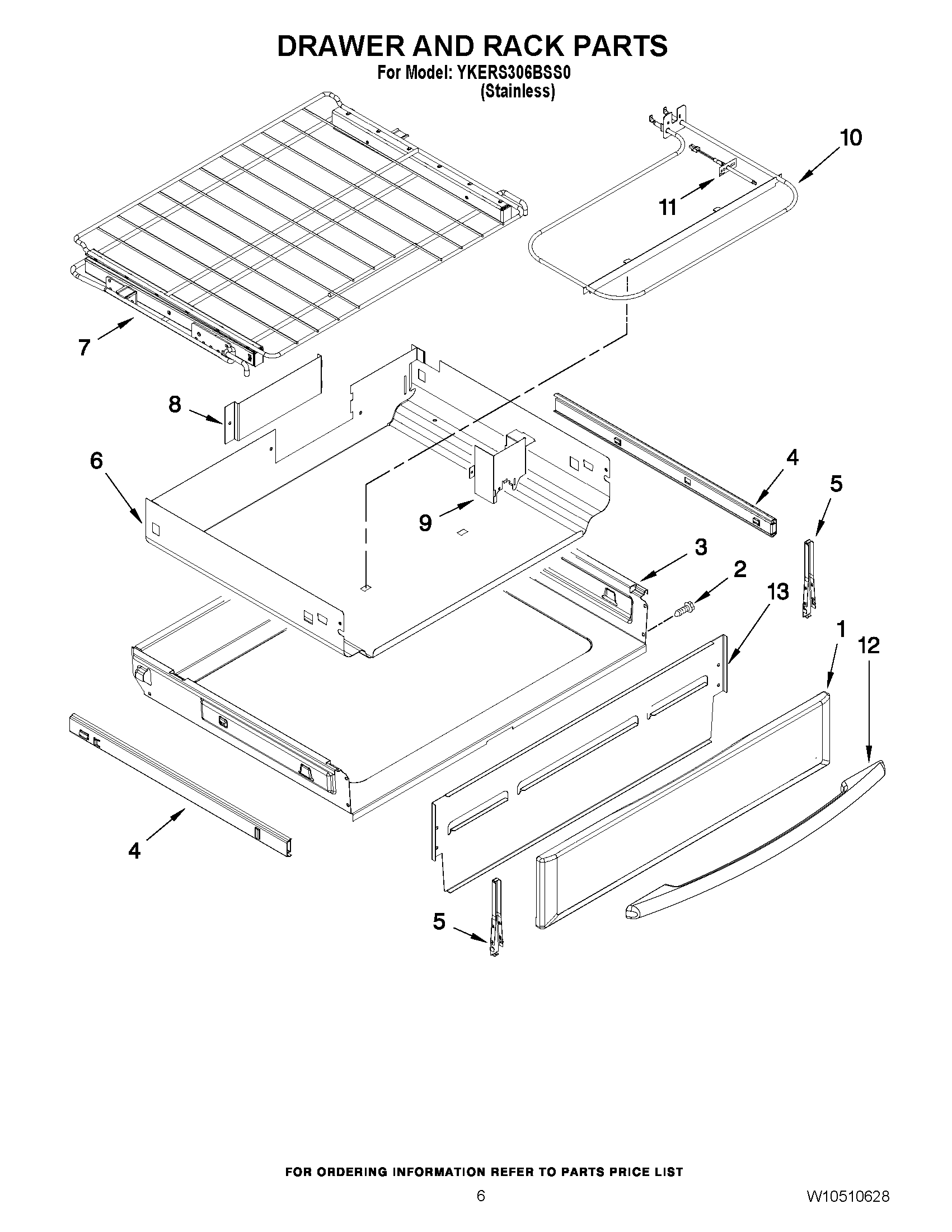

YKERS306BSS0 05 – DRAWER AND RACK PARTS

YKERS306BSS0 05 – DRAWER AND RACK PARTS

Written by

in

YKERS306BSS0 05 – DRAWER AND RACK PARTS

Products

PositionProduct
1W11334144 Whirlpool Drawer Panel
2WP3196175 Whirlpool Screw
3W10813962 Whirlpool Utility Drawer
4WPW10441805 Whirlpool Slide Drawer
4WPW10441804 Whirlpool Drawer Slide
5WPW10318027 Whirlpool Mounting Bracket
6W10634260 Whirlpool Utility Drawer
7WPW10514709 Whirlpool Oven Rack
8W10325438 Whirlpool Cover Panel
9W10634259 Whirlpool Wire Cover
10WPW10323181 Whirlpool Surface Element
11WPW10131827 Whirlpool Sensor
12WPW10289076 Whirlpool Door Handle
13W10324878 Whirlpool Panel Drawer
