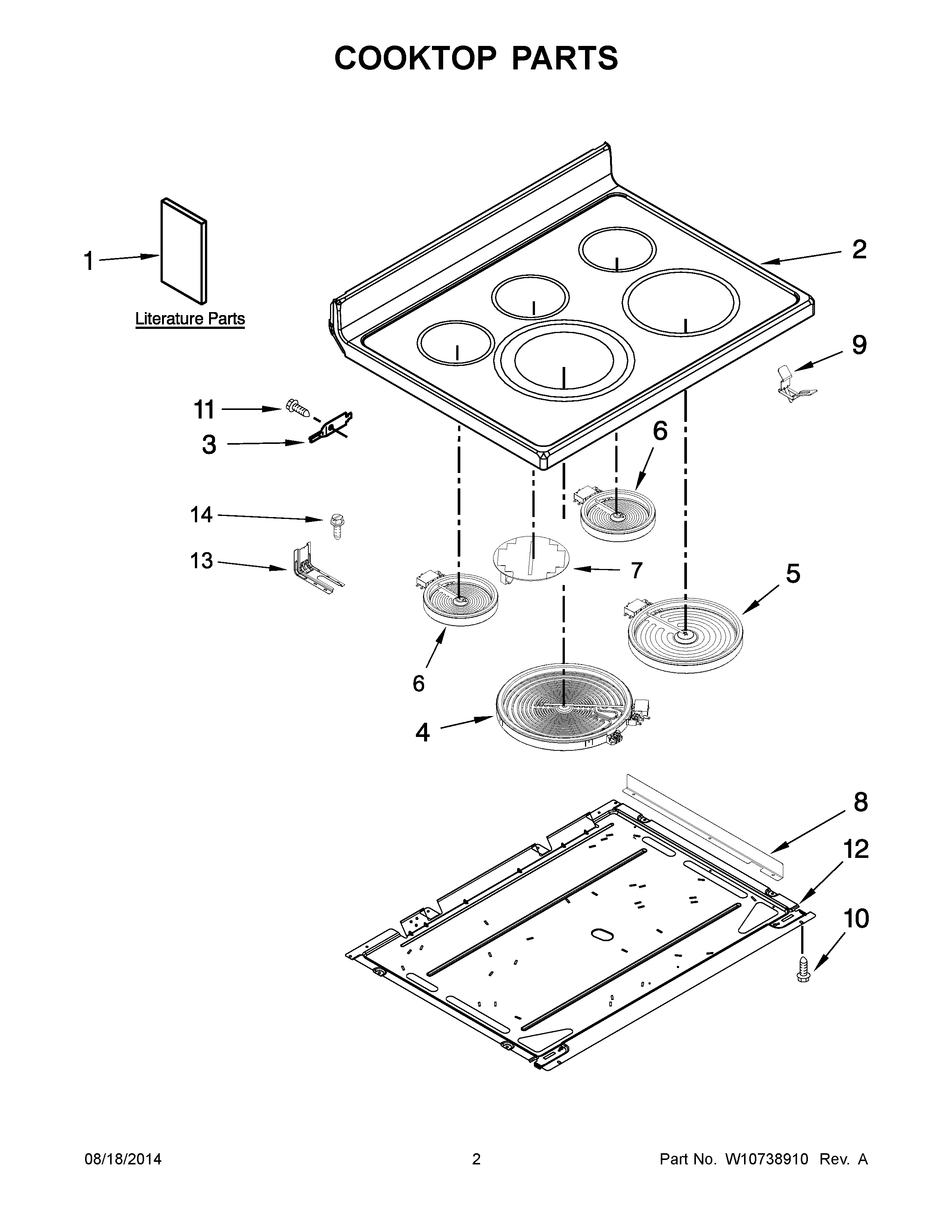

YKERS306BSS1 02 – COOKTOP PARTS

Products

Position	Product
NI	SCREW
NI	HARNESS, WIRE (COOKTOP LEFT)
NI	HARNESS, WIRE (COOKTOP RIGHT)
NI	W10349733 Whirlpool Wire Harness
NI	W10324946 Whirlpool Wire Harness
NI	W11134592 Whirlpool Wire Harness
NI	3400964 Whirlpool Oven Clip
NI	HARNESS, MAIN
NI	CABINET (NOT A SERVICEABLE PART)
1F	SAFER COOKING TIPS (ENGLISH
1G	Safer Cooking Tips (French)
1E	INSTRUCTIONS, INSTALLATION
1D	TECH SHEET (FRENCH)
1C	TECH SHEET (ENGLISH)
1	USE AND CARE GUIDE
1B	QUICK START GUIDE (FRENCH)
1A	QUICK START GUIDE
2	W10524416 Whirlpool Cooktop Assembly
3	WP3195060 Whirlpool Cooktop Pin
4	WPW10298145 Whirlpool Surface Element
5	WPW10251108 Whirlpool Range Cooktop 3200W Radiant Surface Element
6	ELMNT-SURF
7	W11047668 Whirlpool Surface Element
8	BRACKET, L-BRIDGE
9	WPW10225448 Whirlpool Spring Assembly
10	WP3196175 Whirlpool Screw
11	3196172 Whirlpool Oven Screw
12	PAN
13	W11447673 Whirlpool Range Tip Anchor
14	SCREW, ANTI-TIP KIT
