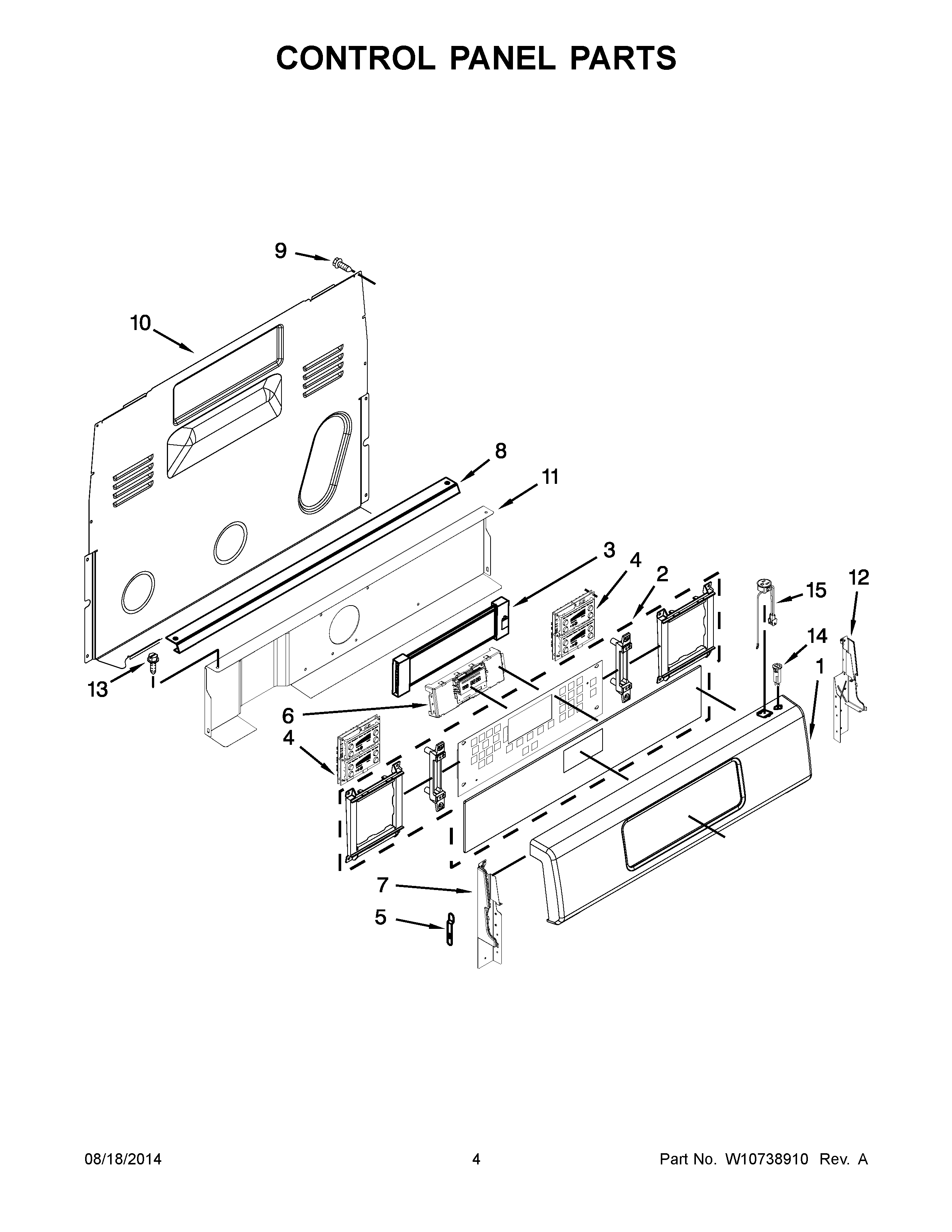

YKERS306BSS1 03 – CONTROL PANEL PARTS

YKERS306BSS1 03 – CONTROL PANEL PARTS

Written by

in

YKERS306BSS1 03 – CONTROL PANEL PARTS

Products

PositionProduct
1WPW10614438 Whirlpool Control Panel
2WPW10726779 Whirlpool Membrane Switch
3WPW10318787 Whirlpool Wire Harness
4AWPW10553762-includeCORE Whirlpool WPW10553762 Refrigerator Electronic Control Board + Core
4WPW10341243-includeCORE Whirlpool WPW10341243 Washer Electronic Control Board + Core
53196200 Whirlpool Clip
6WPW10686474 Whirlpool Electronic Control Board + Core
7W11404310 Whirlpool Panel Endcap
8W10525121 Whirlpool Control Bracket
9SCREW
10WP8272473 Whirlpool Rear Cover
11W10134247 Whirlpool Heat Shield
12W10409003 Whirlpool Endcap Panel
14WP9757602 Whirlpool Breaker
15W10861164 Whirlpool Electrical Outlet
