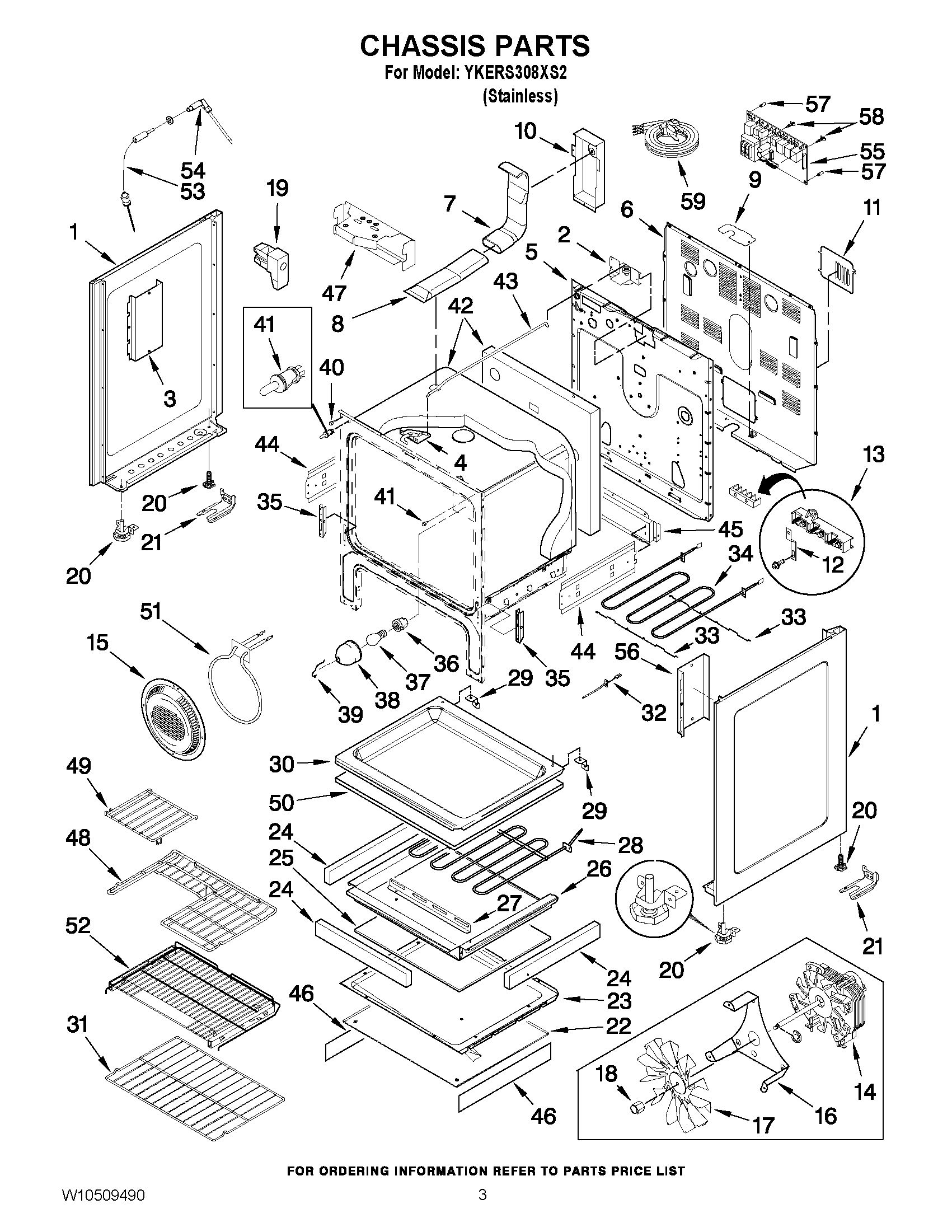

YKERS308XS2 03 – CHASSIS PARTS

Products

Position	Product
1	PANEL, SIDE (BLACK-LH)
1	PANEL, SIDE (BLACK-RH)
2	WPW10350466 Whirlpool Latch Motor
3	SIDE SHIELD
4	DOOR LATCH
5	COVER, INNER REAR
6	MAIN BACK
7	TUBE, VENT UPPER OVEN
8	TUBE, VENT WITH CATALYST
9	BRACKET, CORD
10	SHIELD, WIRE VENT TUBE
11	PANEL, ACCESS
12	GROUND STRAP
13	TERMINAL-BLOCK KIT
14	WPW10350467 Whirlpool Fan Motor
15	COVER, FAN
16	BRACKET, MOTOR
17	WPW10355276 Whirlpool Appliance Fan Blade
18	NUT, FAN BLADE
19	CLIP-OVEN BODY
20	LEG, LEVELING (FRONT METAL)
20	LEG, LEVELING (REAR PLASTIC)
21	W10544996 Whirlpool Anchor Tip
22	SHIELD, HEAT OVEN LOWER
23	SHIELD, HEAT WOOL LOWER
24	INSULATION, OVEN BOTTOM
25	INSULATION, LOWER SHIELD
26	TRAY, BAKE ELEMENT
27	BRACKET, SUPPORT BAKE ELEMENT
28	BAKE ELEMENT, 3000 W
29	BRACKET, SUPPORT OVEN BOTTOM
30	OVEN BOTTOM
31	OVEN RACK
32	OVEN SENSOR
33	SUPPORT, BROIL ELEMENT
34	BROIL ELEMENT
35	BRACKET, HINGE OVEN DOOR
36	SOCKET, LIGHT
37	RANGE ONLY 40W 120V APPL BULB
38	LENS-LIGHT
39	RETAINER, OVEN LIGHT LENS
40	SPACER, OVEN DOOR
41	SWITCH, OVEN LIGHT
42	INSULATION (OVEN WRAPPER)
42	INSULATION (OVEN BACK)
43	ROD, AUTO LATCH
44	SHIELD-SIDE
45	SHIELD, REAR
46	GLIDE-OUTER
47	BRACKET-PANEL
48	HALF RACK
49	HALF RACK-INSERT
50	INSULATION, BAKE ELEMENT
51	ELEMENT, CONVECT 350W
52	RACK, SLIDING
53	PROBE, MEAT
54	RECEPTAC
55	WPW10355201 Whirlpool Electronic Control Board
56	WPL W10356912
57	WPL W10361465
58	WPL W10361466
59	POWER CORD
