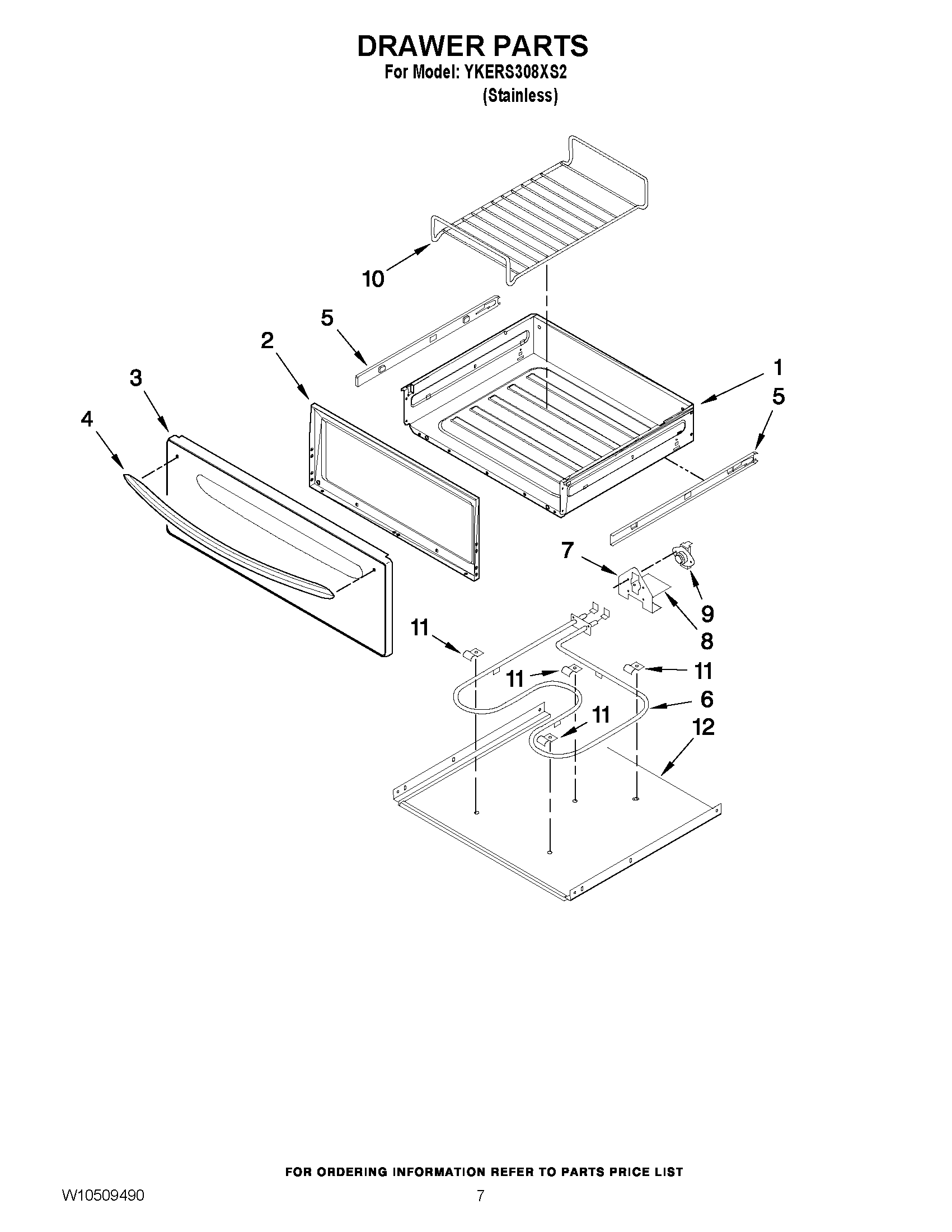

YKERS308XS2 05 – DRAWER PARTS

Written by

Products

Position	Product
1	DRAWER, UTILITY
2	LINER, DRAWER
3	PANEL, DRAWER
4	HANDLE, DOOR (STAINLESS)
5	GLIDE, DRAWER (RH)
5	GLIDE, DRAWER (LH)
6	ELEMENT-BAKE WARMING DRAWER
7	BRACKET, ELEMENT
8	SHIELD-TERMINAL WARMING DRAWER
9	THERMO DISC
10	RACK, WARMING DRAWER
11	CLIP, HOLD DOWN
12	BASE, WARMING DRAWER
