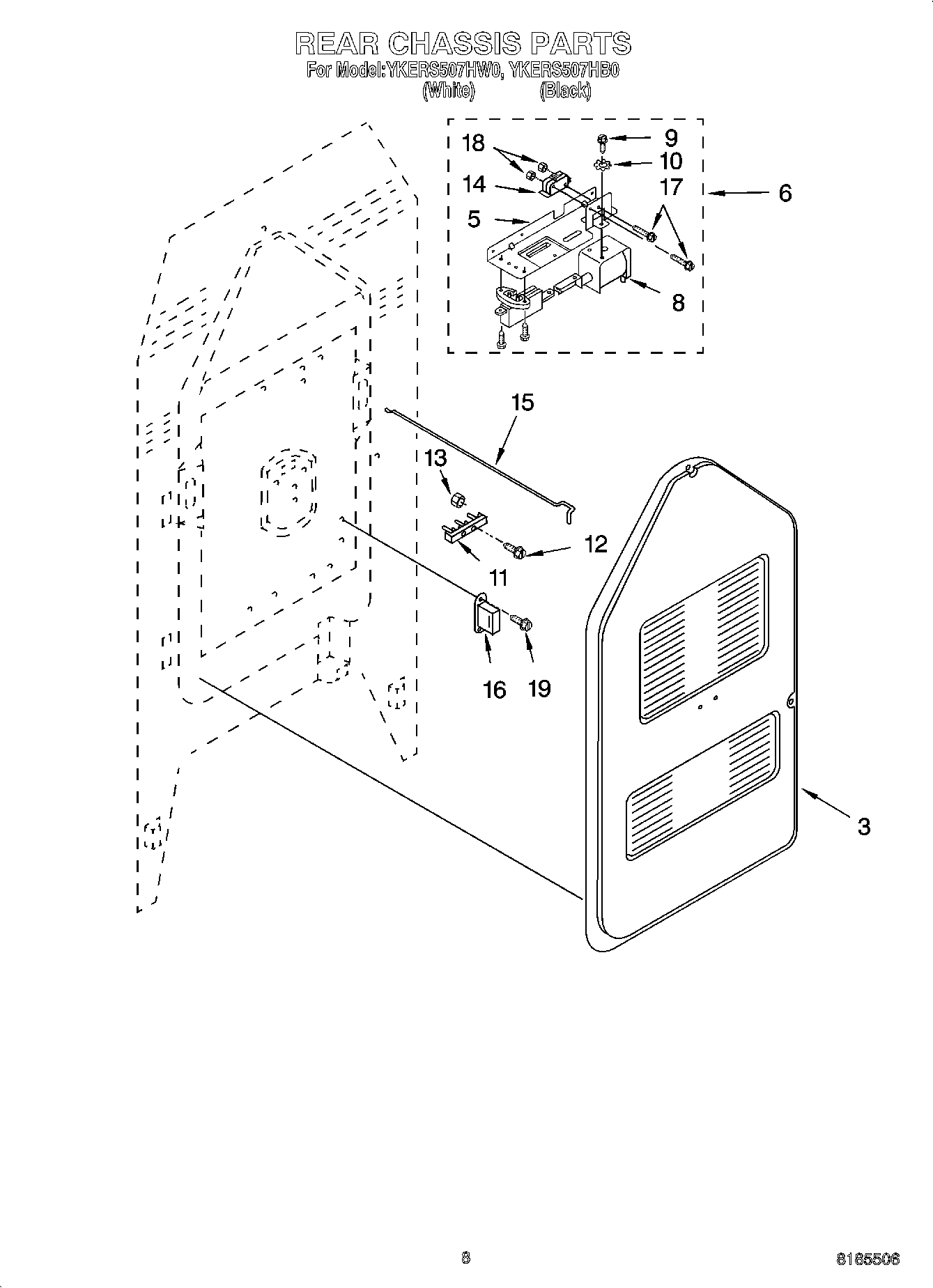

YKERS507HB0 06 – REAR CHASSIS PARTS

Written by

Products

Position	Product
3	Panel, Rear
5	Bracket, Lock
6	Oven Lock Assembly (Includes No.21)
8	Solenoid
9	Screw (2) 10-32 x 5/16
10	Washer (2)
11	WP8203546 Whirlpool Terminal Block
12	Screw, (2) 10-16 x 1
13	WP112432 Whirlpool Nut Assembly
14	Switch, Interlock
15	Rod, Lock
16	Ballast, Lamp
17	Screw, (2)
18	Nut (2)
19	WP4159387 Whirlpool Compactor Screw
