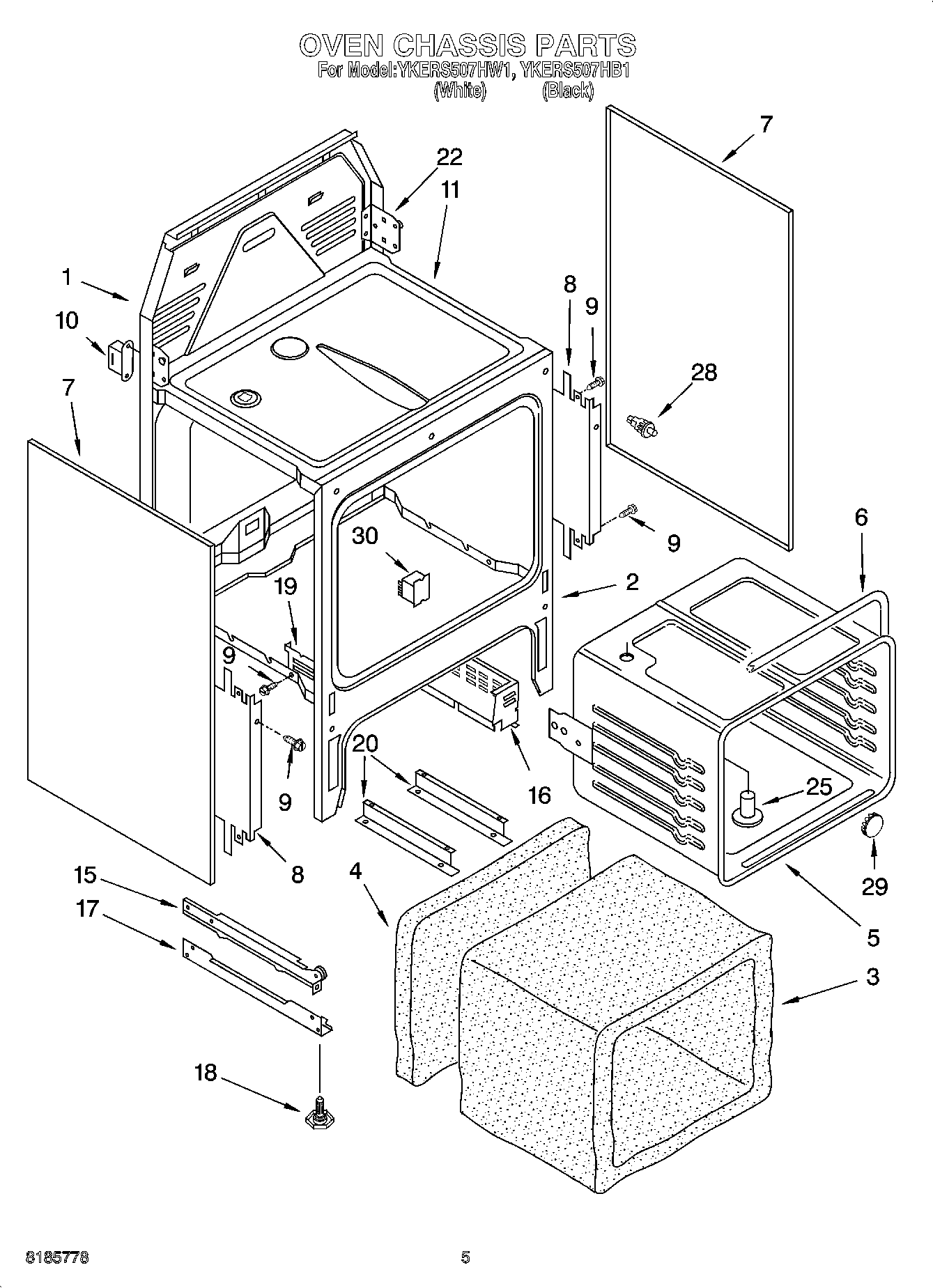

YKERS507HB1 04 – OVEN CHASSIS PARTS

Products

Position	Product
1	Main Chassis, Back
2	Chassis, Front
3	Insulation, Wrap
4	Insulation, Rear
5	Oven Liner
6	Gasket, Oven
7	Body, Side (Black)
7	Body, Side (White)
8	Shield, Insulation
9	WP4159387 Whirlpool Compactor Screw
10	Transformer, Control
11	Burner Box
11	Washer (3)
15	Rail, Drawer (Right)
15	Drawer Rail, Left
16	Support, Fan
17	Bottom Rail (2)
18	WPW10058460 Whirlpool Appliance Levelling Leg
19	Hinge, Base L or R
20	Support Rail
22	Hinge, Cktp.-Left
22	Hinge, Cktp.-Right
25	Vent Tube
28	Switch, Door
29	Button, Plug
30	Oven Lock Assembly (Includes No.21)
