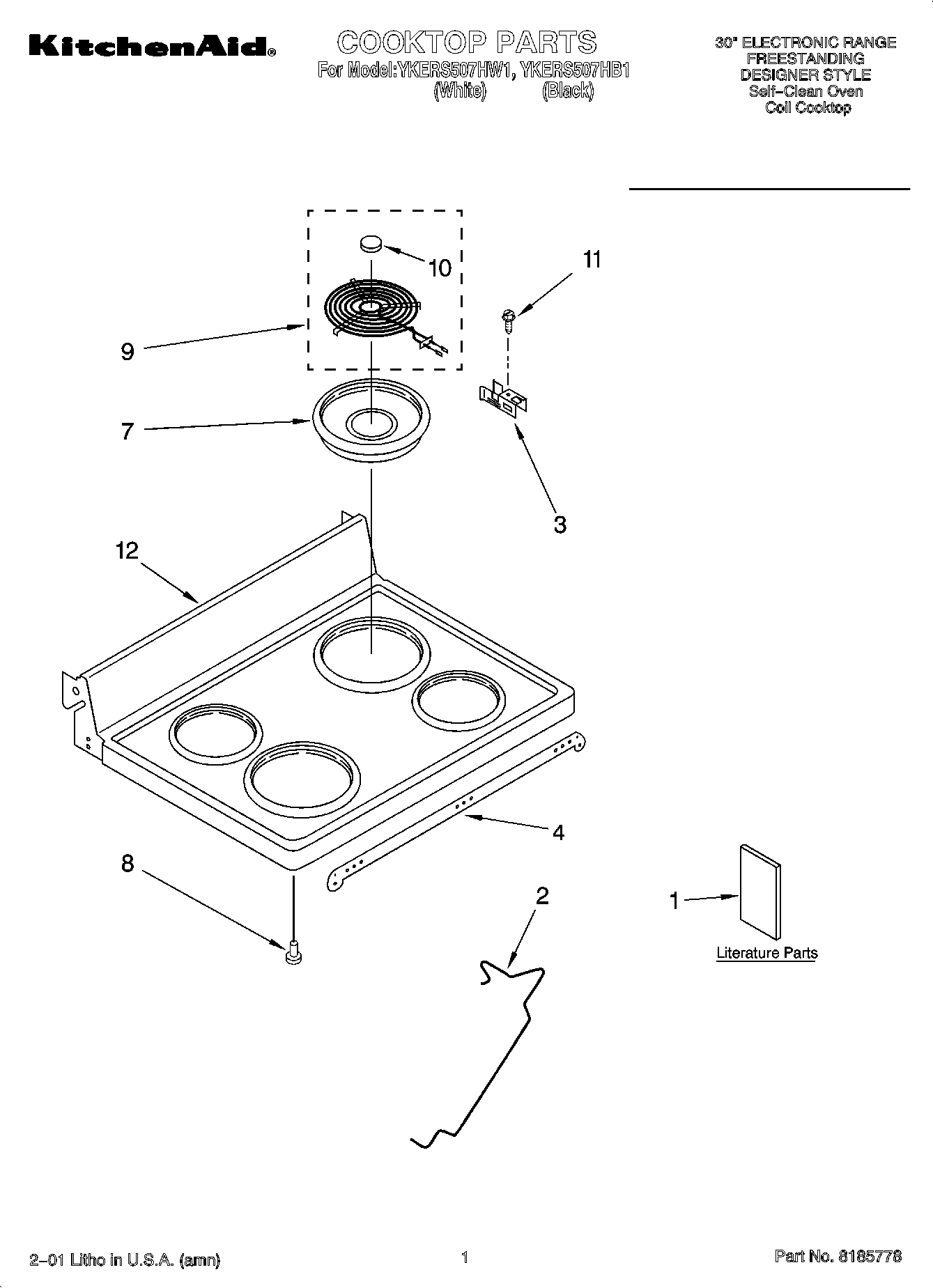

YKERS507HW1 01 – COOKTOP PARTS

Products

Position	Product
1	USE & CARE GUIDE, WIRING DIAGRAM
1	WPL LIT9752776
1	Literature Parts (Installation Instructions)
1	Literature Parts (Use & Care Guide)
1	Literature Parts (Easy Set Guide)
2	Cooktop Rod
3	Receptacle, Clip
4	Guard, Wire
7	WPW10290350 Whirlpool Stove Drip Bowl
7	WPW10290353 Whirlpool Drip Bowl 6" ClimaTek
8	238614 Whirlpool Bumper Hinge
9	Element, Surface (Coil, 6“ LR (Accu Simmer))
9	Element, Surface (Coil, 6“ RF)
9	Element, Surface (Coil 8“ RF-LR)
10	Medallion, (1) (Accu-Simmer)
10	Medallion, (4)
11	WP313808 Whirlpool Screw
12	Cooktop, Coil
12	Cooktop, Coil (Black)
