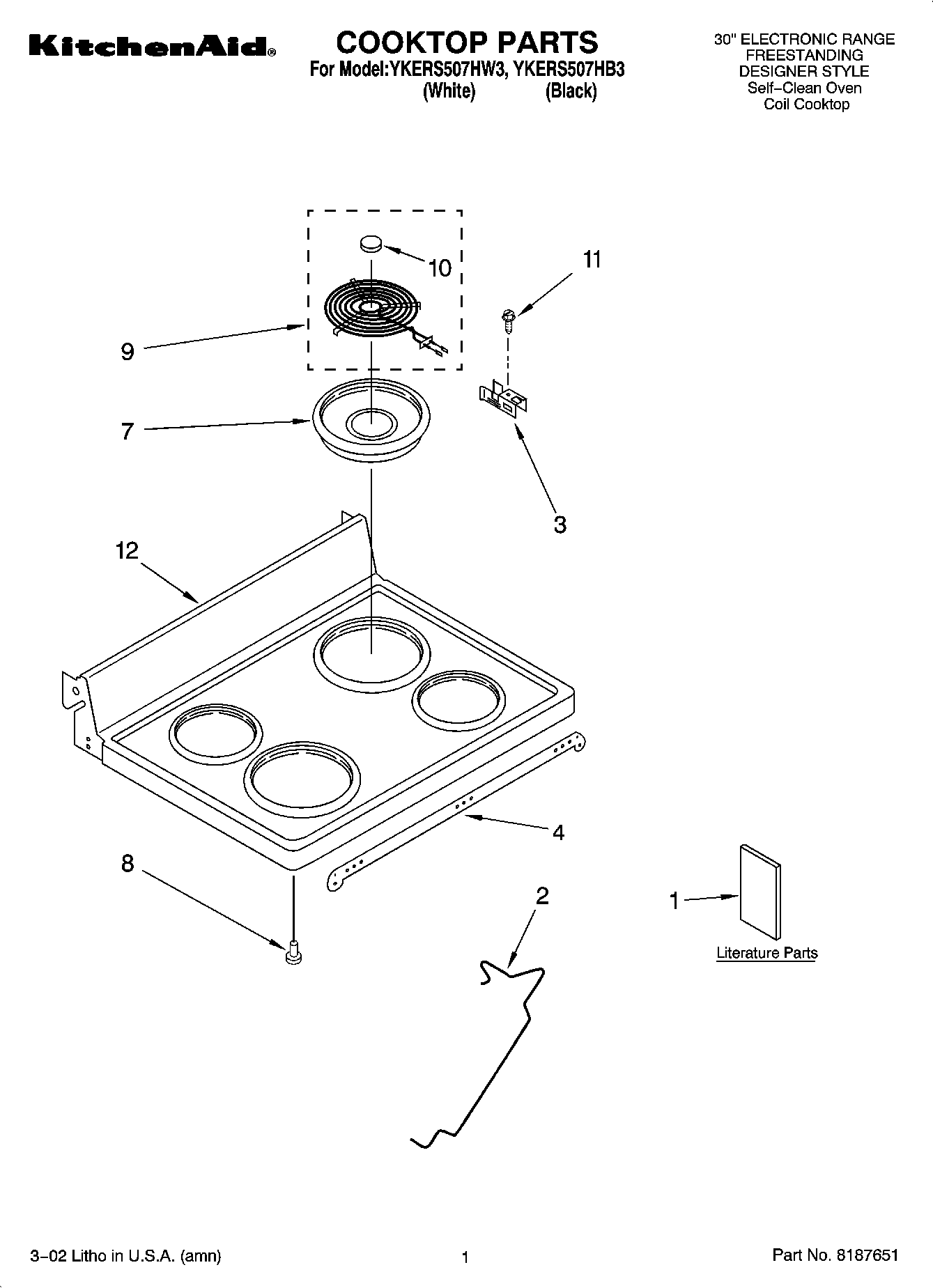

YKERS507HW3 01 – COOKTOP PARTS

YKERS507HW3 01 – COOKTOP PARTS

Written by

in

YKERS507HW3 01 – COOKTOP PARTS

Products

PositionProduct
1LITERATURE PARTS
1WPL LIT9752776
1Literature Parts (Wiring Diagram)
1Literature Parts (Use & Care Guide)
1Literature Parts (Easy Set Guide)
1Literature Parts (Installation Instructions)
1Literature Parts (Easy Set Guide (French))
1USE & CARE GUIDE (FRENCH)
2Cooktop Rod
3Receptacle, Clip
4Guard, Wire
7WPW10290353 Whirlpool Drip Bowl 6" ClimaTek
7WPW10290350 Whirlpool Stove Drip Bowl
8238614 Whirlpool Bumper Hinge
9Element, Surface (Coil, 6“ LR (Accu Simmer))
9Element, Surface (Coil, 6“ RF)
9Element, Surface (Coil 8“ RF-LR)
10Medallion, (1) (Accu-Simmer)
10Medallion, (4)
11WP313808 Whirlpool Screw
12Cooktop, Coil (Black)
12Cooktop, Coil
