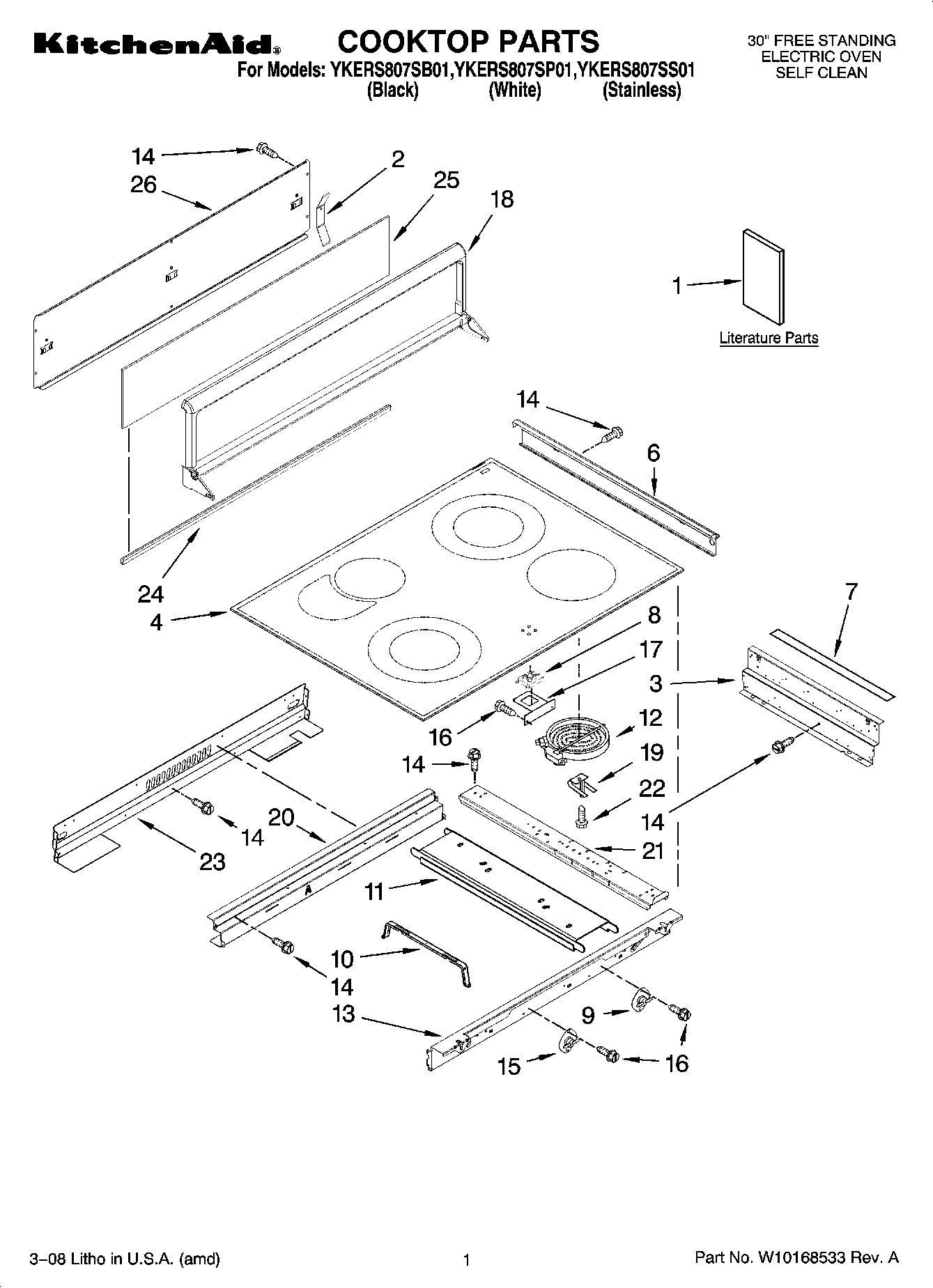

YKERS807SB01 01 – COOKTOP PARTS

YKERS807SB01 01 – COOKTOP PARTS

Written by

in

YKERS807SB01 01 – COOKTOP PARTS

Products

PositionProduct
1Anti-Tip Instruct.
1INSTALLATION INSTRUCTIIONS
1Tech Sheet
1Easy Set Guide
1Tech Sheet (French)
1Use & Care Guide (French)
1Safer Cooking Tips (French)
1SAFER COOKING TIPS (ENGLISH
1Use & Care Guide
2Clip, Retainer (3)
3Bracket, Mounting
4Cooktop (Black/Stainless)
4Cooktop (White)
6Trim, Cooktop Right (Stainless)
6Trim, Cooktop Left (Stainless)
6Trim, Cooktop Right (Black)
6Trim, Cooktop Right (White)
6Trim, Cooktop Left (Black)
6Trim, Cooktop Left (White)
7Gasket (2)
8Light, Indicator (Hot Surface)
9WP9759944 Whirlpool Thermostat
10WP9756821 Whirlpool Support
11Rail, Element (2) (Center (1))
12W10823698 Whirlpool Surface Element Right Rear
12W10823692 Whirlpool Dual Radiant Element
12W10823730 Whirlpool Surface Element
13Frame, Cooktop Front
14WP3196557 Whirlpool Screw
15Thermostat SPST (205)
16W10491985 Whirlpool Screw
17Bracket, Ind. Lamp
18Backsplash
18Backsplash (Black)
18Backsplash (White)
199759094 Whirlpool Spring
20Bracket, Rear Sprt
21Rail, Element (3)
22WP486754 Whirlpool Compactor Screw
23Cover, Cktp Rear
24Gasket (Gray)
24Gasket, Backsplash
25Glass, Backsplash (White)
25Glass, Backsplash
26Panel, Backsplash
