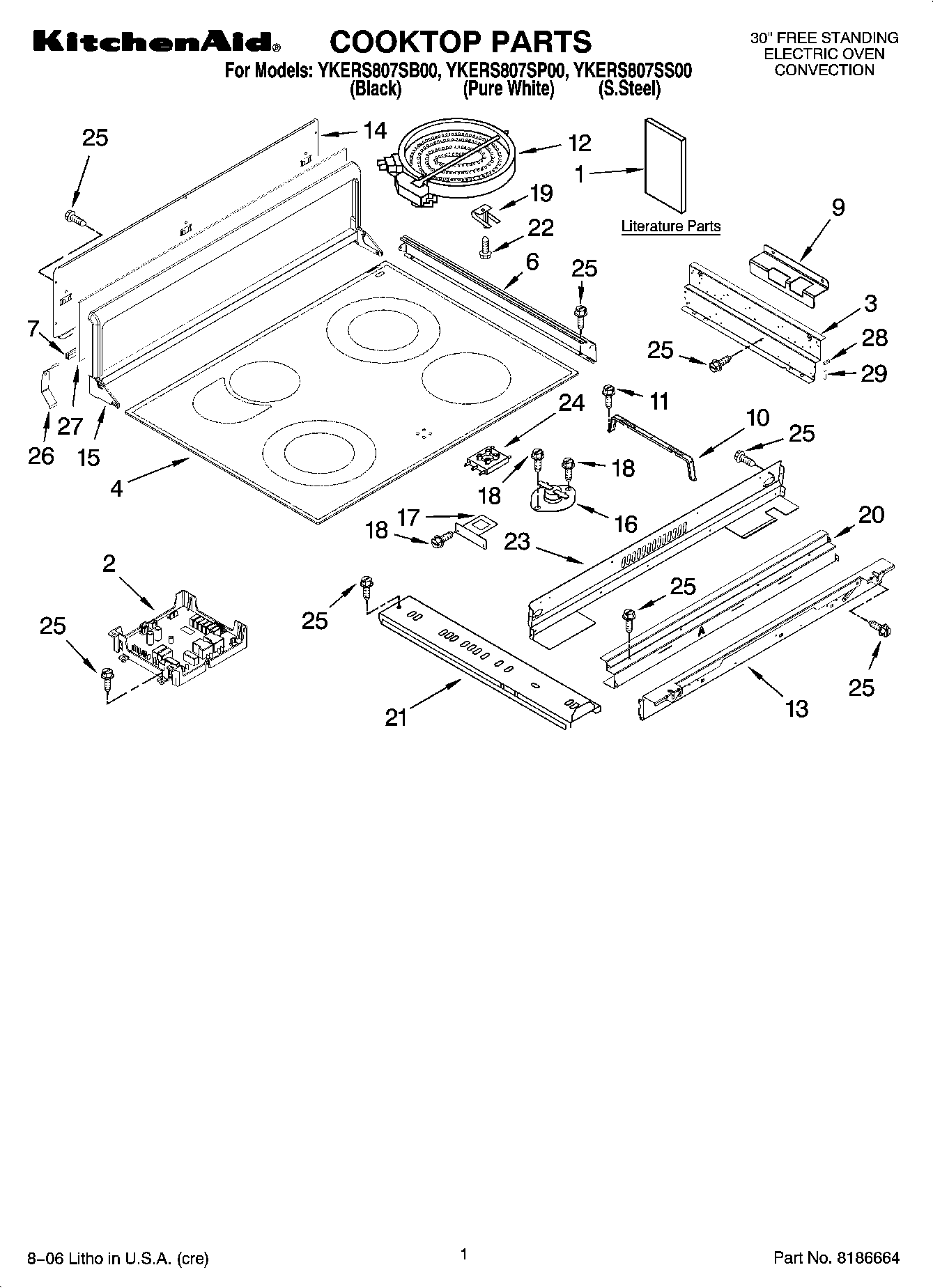

YKERS807SP00 01 – COOKTOP PARTS

Products

Position	Product
7	Gasket
9	Support (L.Hand)
9	Support (R.Hand)
10	WP9756821 Whirlpool Support
11	WP4449809 Whirlpool Screw
12	Element, Surface (1800/1000W)
12	W10823698 Whirlpool Surface Element Right Rear
12	W10823692 Whirlpool Dual Radiant Element
13	Frame, Cooktop Front
14	Panel, Backsplash
15	Backsplash (Black)
15	Backsplash (White)
15	Gasket (Gray)
15	Gasket, Backsplash
15	Backsplash
16	WP9759944 Whirlpool Thermostat
17	Bracket, Ind. Lamp
18	W10491985 Whirlpool Screw
19	9759094 Whirlpool Spring
20	Bracket, Rear Sprt
21	Rail, Element (3)
21	Rail, Element (2) (Center (1))
22	WP486754 Whirlpool Compactor Screw
23	Cover, Cktp Rear
24	Light, Indicator (Hot Surface)
25	WP3196557 Whirlpool Screw
26	Clip, Retainer (3)
27	Glass, Backsplash
27	Glass, Backsplash (White)
28	Grommet (19mm)
29	Grommet (38mm)
