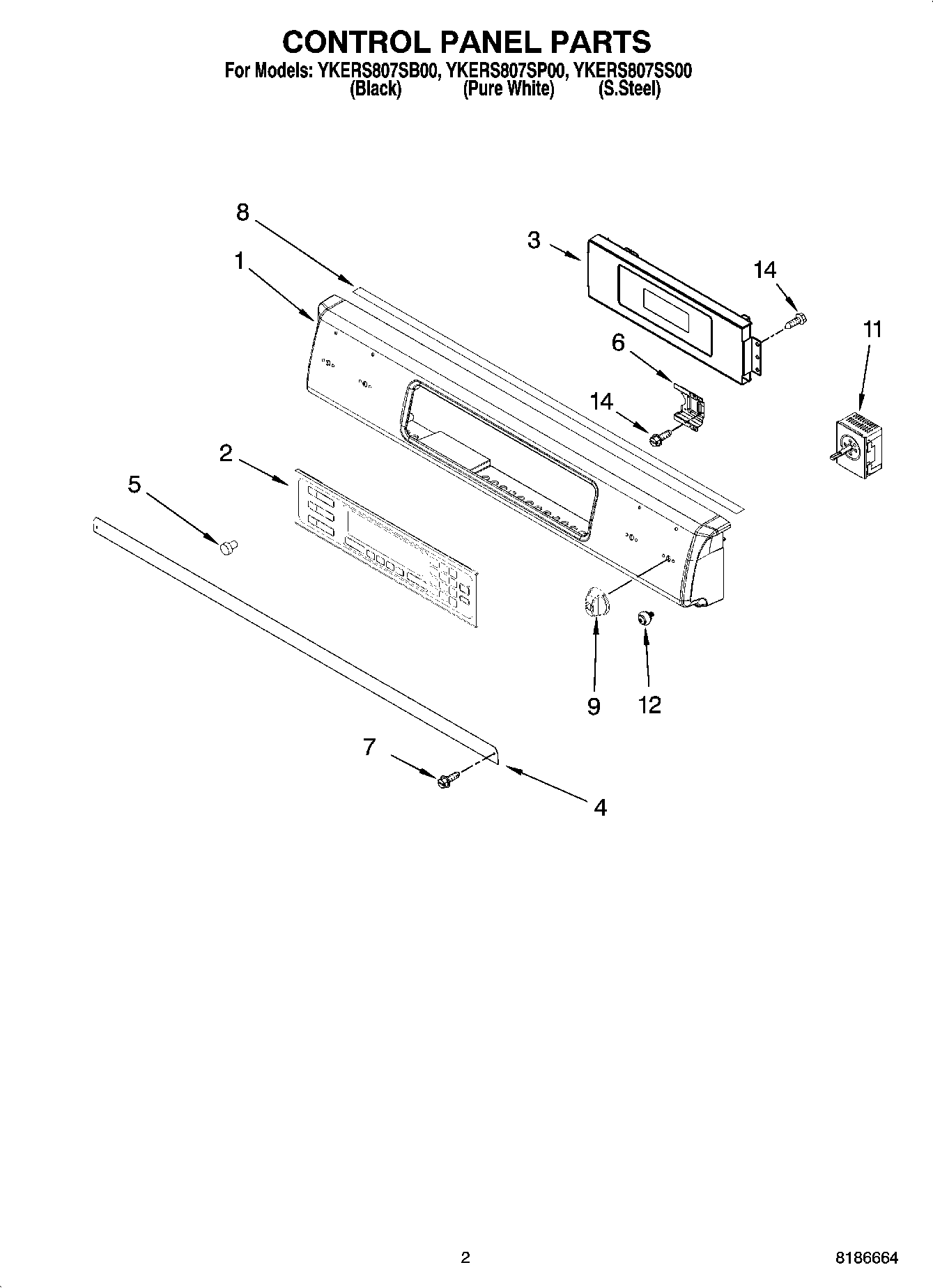

YKERS807SP00 02 – CONTROL PANEL PARTS

YKERS807SP00 02 – CONTROL PANEL PARTS

Written by

in

YKERS807SP00 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Control Panel (White)
1Control Panel (Nickel Plated)
1Control Panel (Black)
2WP9761566 Whirlpool Membrane Switch
3Control, Interface
4Shield, Console Vent
5WP3196068 Whirlpool Light Lens
6Bracket, Thermostat (2)
7W10491985 Whirlpool Screw
8GASKET
9WPW10193255 Whirlpool Range Black Knob – Left Rear, Front, Right Rear
9WPW10156260 Whirlpool Stainless Knob
9Knob (RF) (Nickel Plated)
9Knob (RF) (Black)
9WPW10193253 Whirlpool Burner Knob
9WPW10193257 Whirlpool Right Front White Knob
11WP9763761 Whirlpool Infinite Switch
11WP9763762 Whirlpool Washer Infinite Switch Left Rear Front Right
129757778 Whirlpool Oven Bushing
14WP3196557 Whirlpool Screw
