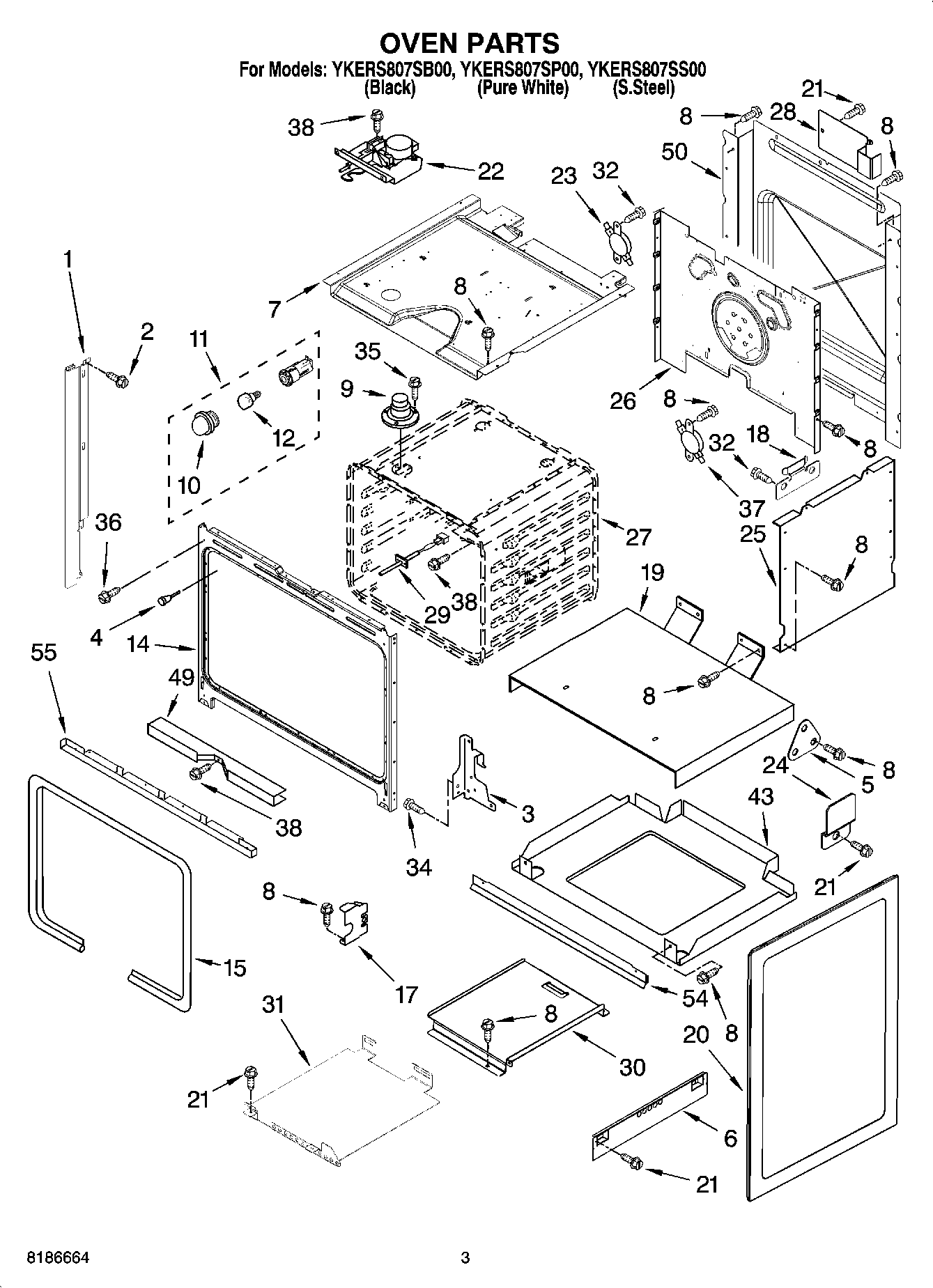

YKERS807SP00 03 – OVEN PARTSadmin2025-04-26T11:09:32+00:00YKERS807SP00 03 – OVEN PARTS
Products
| Position | Product |
|---|
| 1 | TRIM, SIDE (LEFT) (WHITE) |
| 1 | Trim, Side (Right) |
| 1 | Trim, Side Right (White) |
| 1 | Trim, Side Right (Black) |
| 1 | Trim, Side (Left) |
| 1 | TRIM, SIDE (LEFT) (BLACK) |
| 2 | WP3400832 Whirlpool Screw |
| 3 | WP4455606 Whirlpool Right Hand Hinge |
| 3 | WP4455605 Whirlpool Left Hand Hinge |
| 4 | W10105790 Whirlpool Bumper |
| 5 | BRACKET,SIDE PANEL |
| 6 | Brace, Side Panel |
| 7 | Top Chassis |
| 8 | WP4449809 Whirlpool Screw |
| 9 | W10861715 Whirlpool Vent Tube |
| 10 | Lens, Light (2) |
| 11 | WPW10734065 Whirlpool Light |
| 12 | WP4173175 Whirlpool Light Bulb |
| 14 | WPW10115831 Whirlpool Front Frame |
| 15 | W11675844 Whirlpool Oven Gasket |
| 17 | 4452152 Whirlpool Oven Mounting Bracket |
| 18 | WP9757685 Whirlpool Guide Panel |
| 19 | Support, Insulation |
| 20 | BODY, SIDE BLACK |
| 20 | Body, Side (White) |
| 21 | WP3196557 Whirlpool Screw |
| 22 | WP9760889 Whirlpool Door Latch |
| 23 | Thermostat SPST (205) |
| 24 | Clip, Side Panel |
| 25 | W10782197 Whirlpool Side Panel |
| 26 | Back, Chassis |
| 27 | Liner, Oven (Not serviceable) |
| 28 | Cover, Rear Standoff |
| 29 | WPW10131825 Whirlpool Oven Temperature Sensor |
| 30 | Bracket, GOC |
| 31 | W10083460 Whirlpool Slide Assembly |
| 32 | W10491985 Whirlpool Screw |
| 34 | WP4449743 Whirlpool Screw |
| 35 | SCREW |
| 36 | Screw |
| 37 | WP9759242 Whirlpool Thermostat |
| 38 | WP4449154 Whirlpool Screw |
| 43 | Base, Chassis |
| 49 | WP4448933 Whirlpool Retainer |
| 50 | WPL 9758583 |
| 54 | Vent, Bottom Upper (S. Steel) |
| 54 | Ve |
| 54 | Vent, Bottom Upper (Black) |
| 55 | Vent, Bottom Lower (White) |
| 55 | Vent, Bottom Lower (Black) |
| 55 | Trim, Btm Vent (S.Steel) |
| 55 | WPL 9756470 |
| 55 | WPL 9756817 |
| 55 | FOLLOWING PARTS NOT ILLUSTRATED INSULATION |
