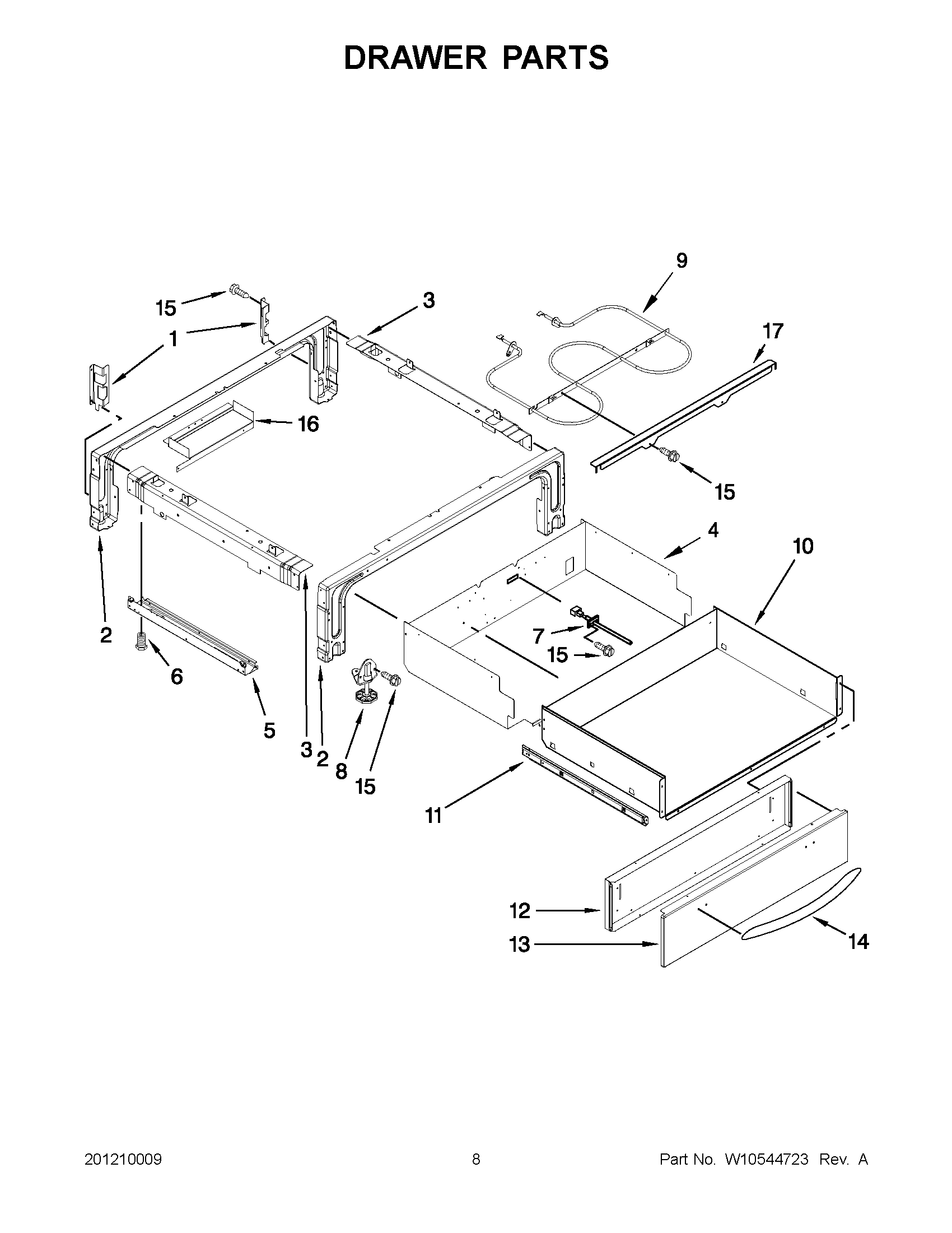

YKERS807SP04 04 – DRAWER PARTS

YKERS807SP04 04 – DRAWER PARTS

Written by

in

YKERS807SP04 04 – DRAWER PARTS

Products

PositionProduct
1Support (L.Hand)
1Support (R.Hand)
2Support, Front & Rear
3Brace, Drawer (Left)
3Brace, Drawer (Right)
4Enclosure, Warming Drawer
5Side, Base (L.Side)
5Side, Base (R.Side)
6WPW10058460 Whirlpool Appliance Levelling Leg
7WP8274149 Whirlpool Sensor Assembly
8WP3196037 Whirlpool Leveling Foot
9ELEMENT, WARMING DRAWER
10DRAWER
11WPW10155632 Whirlpool Slide Drawer Assembly
11WPW10155633 Whirlpool Drawer Slide Rail
12PANEL, DRAWER
13Front, Drawer (White)
14HANDLE, DRAWER (WHITE)
15SCREW
16Cover, Terminal
17Support, Element
