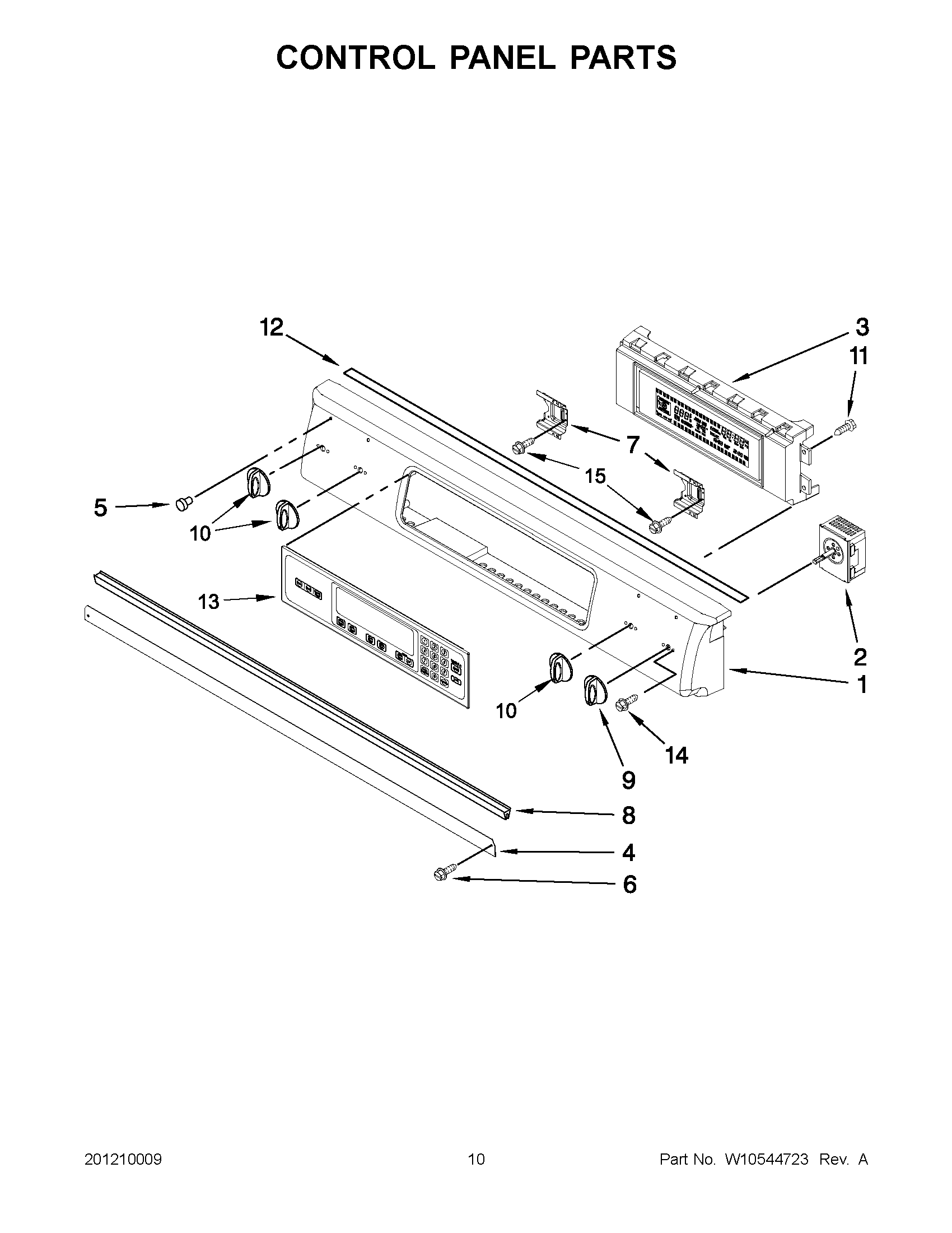

YKERS807SP04 05 – CONTROL PANEL PARTS

YKERS807SP04 05 – CONTROL PANEL PARTS

Written by

in

YKERS807SP04 05 – CONTROL PANEL PARTS

Products

PositionProduct
1Control Panel (White)
2WP9763761 Whirlpool Infinite Switch
2WP9763762 Whirlpool Washer Infinite Switch Left Rear Front Right
3Control, Electric
4Shield, Console Vent
5WP3196068 Whirlpool Light Lens
6W10491985 Whirlpool Screw
7Bracket, Thermostat (2)
8W10116195 Whirlpool Vent Gasket
9WPW10193257 Whirlpool Right Front White Knob
10WPW10193253 Whirlpool Burner Knob
11Screw
12GASKET
13WP9761566 Whirlpool Membrane Switch
14W10061760 Whirlpool Screw
15SCREW
