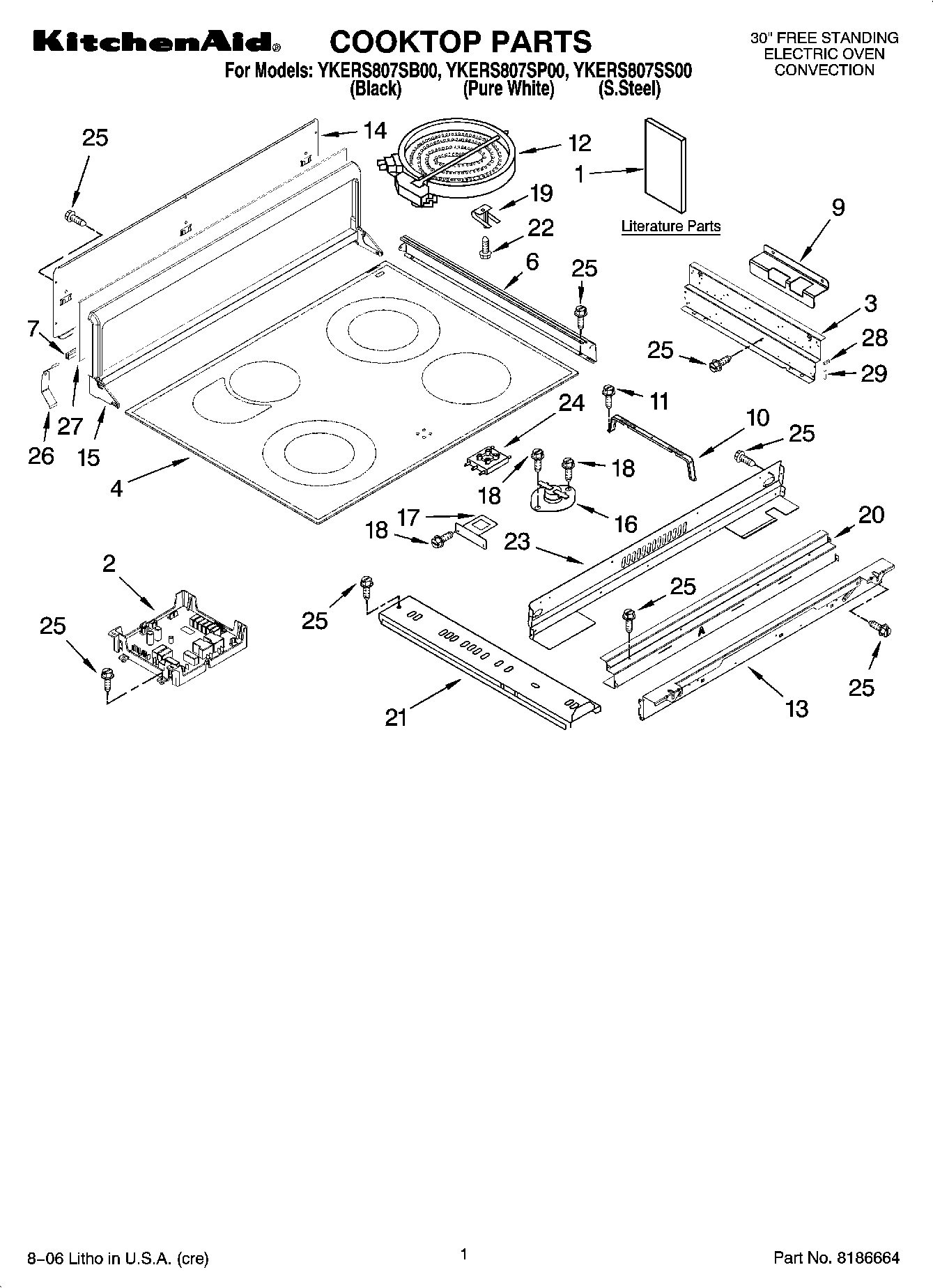

YKERS807SS00 01 – COOKTOP PARTS

Products

PositionProduct
7Gasket
9Support (L.Hand)
9Support (R.Hand)
10WP9756821 Whirlpool Support
11WP4449809 Whirlpool Screw
12Element, Surface (1800/1000W)
12W10823698 Whirlpool Surface Element Right Rear
12W10823692 Whirlpool Dual Radiant Element
13Frame, Cooktop Front
14Panel, Backsplash
15Backsplash (Black)
15Backsplash (White)
15Gasket (Gray)
15Gasket, Backsplash
15Backsplash
16WP9759944 Whirlpool Thermostat
17Bracket, Ind. Lamp
18W10491985 Whirlpool Screw
199759094 Whirlpool Spring
20Bracket, Rear Sprt
21Rail, Element (3)
21Rail, Element (2) (Center (1))
22WP486754 Whirlpool Compactor Screw
23Cover, Cktp Rear
24Light, Indicator (Hot Surface)
25WP3196557 Whirlpool Screw
26Clip, Retainer (3)
27Glass, Backsplash
27Glass, Backsplash (White)
28Grommet (19mm)
29Grommet (38mm)
