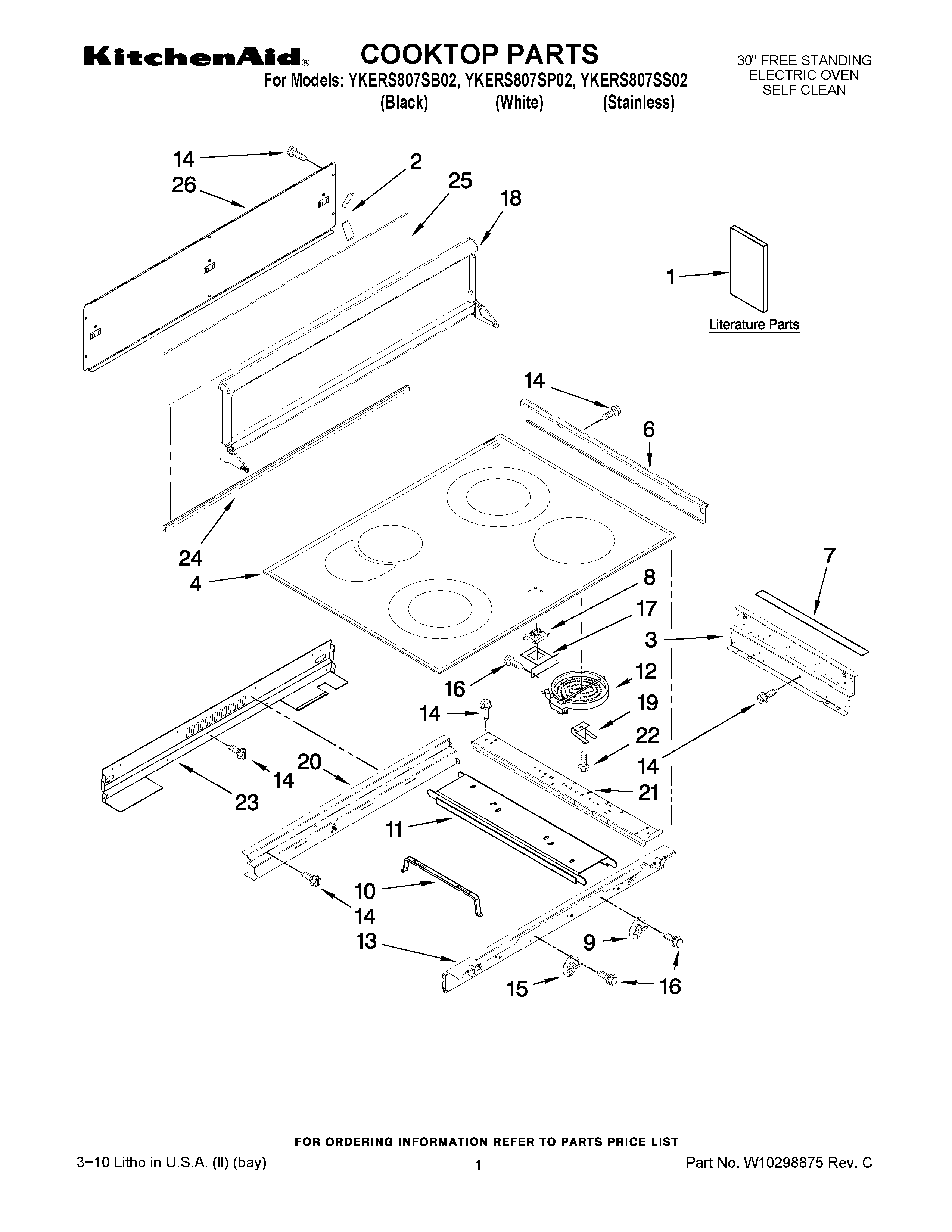

YKERS807SS02 01 – COOKTOP PARTS

Products

Position	Product
1	TECH SHEET
1	Use & Care Guide
1	INSTALLATION INSTRUCTIONS (BI-LINGUAL)
1	Anti-Tip Instruct.
1	Easy Set Guide
1	Use & Care Guide (French)
1	TECH SHEET (FRENCH)
1	Safer Cooking Tips (French)
1	SAFER COOKING TIPS (ENGLISH
2	Clip, Retainer (3)
3	Bracket, Mounting
4	Cooktop (White)
4	Cooktop (Black/Stainless)
6	Trim, Cooktop Right (Stainless)
6	Trim, Cooktop Left (Stainless)
6	Trim, Cooktop Right (Black)
6	Trim, Cooktop Right (White)
6	Trim, Cooktop Left (Black)
6	Trim, Cooktop Left (White)
7	Gasket (2)
8	Light, Indicator (Hot Surface)
9	WP9759944 Whirlpool Thermostat
10	WP9756821 Whirlpool Support
11	Rail, Element (2) (Center (1))
12	ELEMENT, SURFACE (LR/1000W)
12	W10823692 Whirlpool Dual Radiant Element
12	W10823698 Whirlpool Surface Element Right Rear
13	Frame, Cooktop Front
14	SCREW
15	Thermostat SPST (205)
16	W10491985 Whirlpool Screw
17	Bracket, Ind. Lamp
18	Backsplash (Black)
18	Backsplash (White)
18	Backsplash
19	9759094 Whirlpool Spring
20	Bracket, Rear Sprt
21	Rail, Element (3)
22	WP486754 Whirlpool Compactor Screw
23	Cover, Cktp Rear
24	Gasket, Backsplash
24	Gasket (Gray)
25	Glass, Backsplash (White)
25	Glass, Backsplash
26	Panel, Backsplash
