YKERS807SS03 01 – COOKTOP PARTS

YKERS807SS03 01 – COOKTOP PARTS

Written by

in

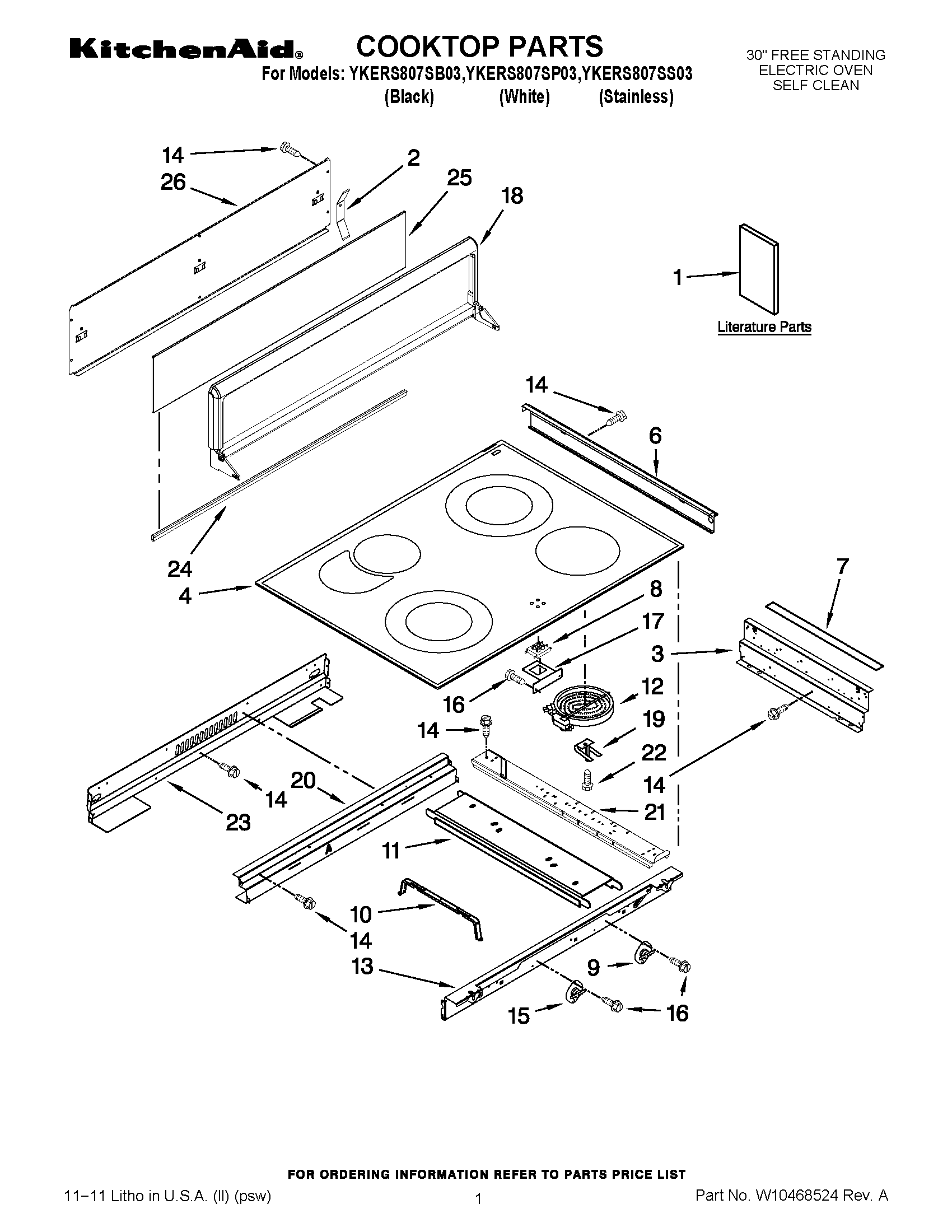

YKERS807SS03 01 – COOKTOP PARTS

Products

PositionProduct
1USE & CARE GUIDE
1INSTALLATION INSTRUCTIIONS
1TECH SHEET
1INSTALLATION INSTRUCTIONS (BI-LINGUAL)
1Anti-Tip Instruct.
1Easy Set Guide
1Use & Care Guide (French)
1TECH SHEET (FRENCH)
1Safer Cooking Tips (French)
1SAFER COOKING TIPS (ENGLISH
2Clip, Retainer (3)
3Bracket, Mounting
4Cooktop (Black/Stainless)
4Cooktop (White)
6Trim, Cooktop Right (Black)
6Trim, Cooktop Left (Black)
6Trim, Cooktop Right (Stainless)
6Trim, Cooktop Left (White)
6Trim, Cooktop Left (Stainless)
6Trim, Cooktop Right (White)
7Gasket (2)
8Light, Indicator (Hot Surface)
9WP9759944 Whirlpool Thermostat
10WP9756821 Whirlpool Support
11Rail, Element (2) (Center (1))
12ELMNT-SURF
12WP8273993 Whirlpool Surface Element
12WPW10248257 Whirlpool Surface Element
13Frame, Cooktop Front
14SCREW
15Thermostat SPST (205)
16W10491985 Whirlpool Screw
17Bracket, Ind. Lamp
18Backsplash
18Backsplash (Black)
18Backsplash (White)
199759094 Whirlpool Spring
20Bracket, Rear Sprt
21Rail, Element (3)
22WP486754 Whirlpool Compactor Screw
23Cover, Cktp Rear
24Gasket (Gray)
24Gasket, Backsplash
25Glass, Backsplash
25Glass, Backsplash (White)
26Panel, Backsplash
