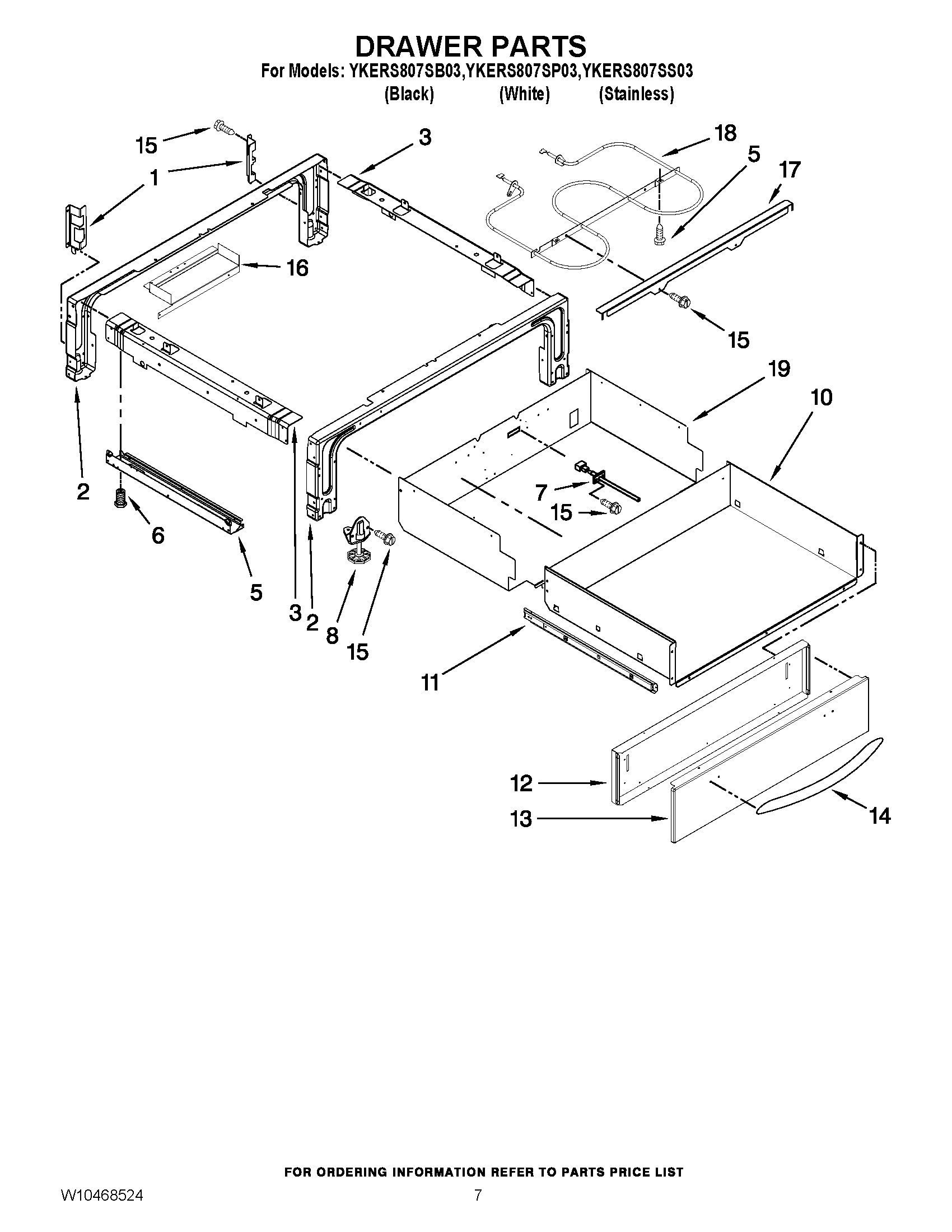

YKERS807SS03 04 – DRAWER PARTS

YKERS807SS03 04 – DRAWER PARTS

Written by

in

YKERS807SS03 04 – DRAWER PARTS

Products

PositionProduct
1Support (R.Hand)
1Support (L.Hand)
2Support, Front & Rear
3Brace, Drawer (Right)
3Brace, Drawer (Left)
5Side, Base (R.Side)
5Side, Base (L.Side)
6WPW10058460 Whirlpool Appliance Levelling Leg
7WP8274149 Whirlpool Sensor Assembly
8WP3196037 Whirlpool Leveling Foot
10DRAWER
11WPW10155633 Whirlpool Drawer Slide Rail
11WPW10155632 Whirlpool Slide Drawer Assembly
12PANEL, DRAWER
13Front, Drawer (Stainless)
13Front, Drawer (White)
13Front, Drawer (Black)
14HANDLE, DRAWER (WHITE)
14HANDLE, DRAWER
14HANDLE, DRAWER (BLACK)
15SCREW
16Cover, Terminal
17Support, Element
18ELEMENT, WARMING DRAWER
19Enclosure, Warming Drawer
