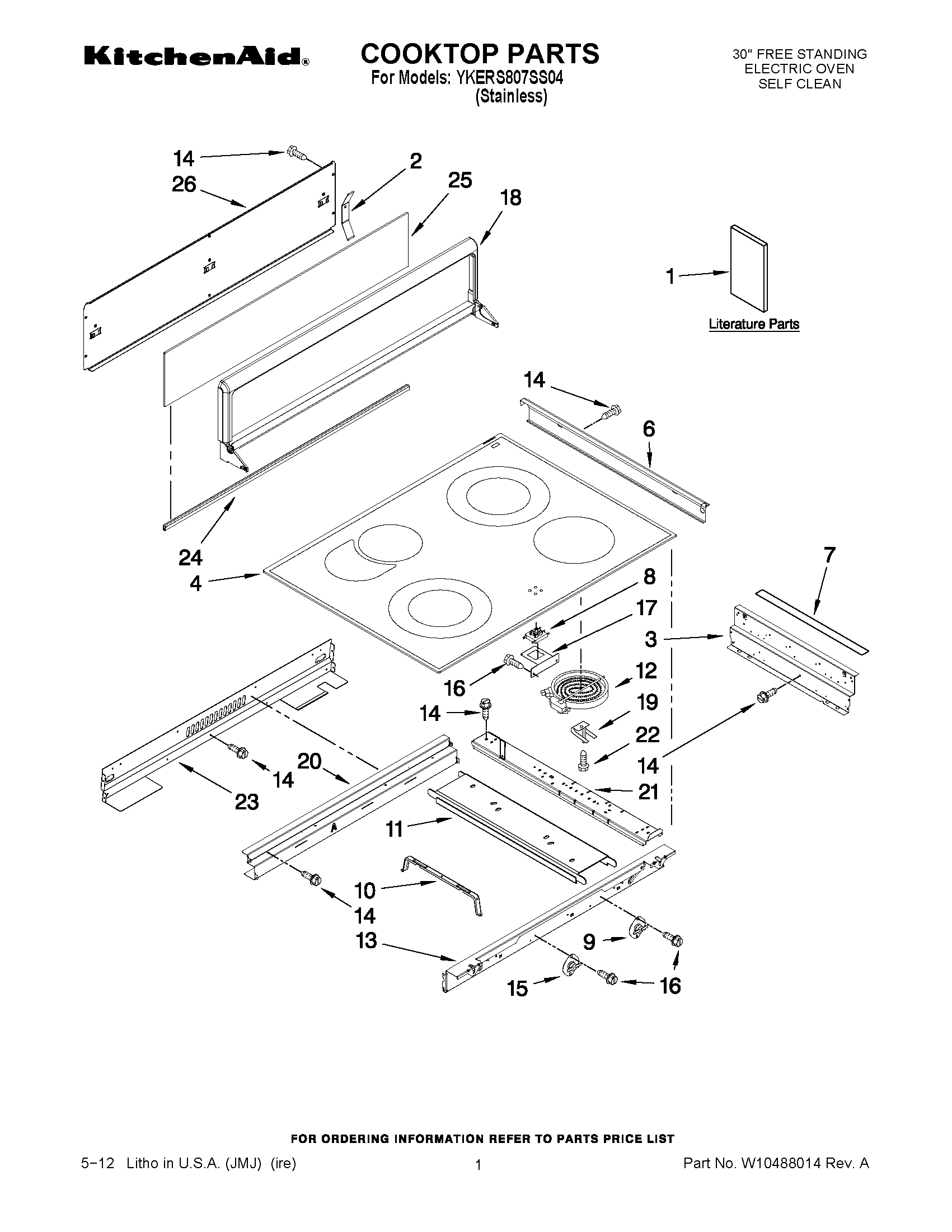

YKERS807SS04 01 – COOKTOP PARTS

Products

Position	Product
1	SAFER COOKING TIPS (ENGLISH
1	INSTALLATION INSTRUCTIONS
1	TECH SHEET (FRENCH)
1	TECH SHEET
1	USE & CARE GUIDE
1	USE & CARE GUIDE (FRENCH)
1	Easy Set Guide
1	INSTALLATION INSTRUCTIONS (BI-LINGUAL)
1	Safer Cooking Tips (French)
2	Clip, Retainer (3)
3	Bracket, Mounting
4	Cooktop (Black/Stainless)
6	Trim, Cooktop Left (Stainless)
6	Trim, Cooktop Right (Stainless)
7	Gasket (2)
8	Light, Indicator (Hot Surface)
9	WP9759944 Whirlpool Thermostat
10	WP9756821 Whirlpool Support
11	Rail, Element (2) (Center (1))
12	WP8273993 Whirlpool Surface Element
12	WPW10248257 Whirlpool Surface Element
12	ELMNT-SURF
13	Frame, Cooktop Front
14	SCREW
15	Thermostat SPST (205)
16	W10061760 Whirlpool Screw
17	Bracket, Ind. Lamp
18	Backsplash
19	9759094 Whirlpool Spring
20	Bracket, Rear Sprt
21	Rail, Element (3)
22	WP486754 Whirlpool Compactor Screw
23	Cover, Cktp Rear
24	Gasket, Backsplash
25	Glass, Backsplash
26	Panel, Backsplash
