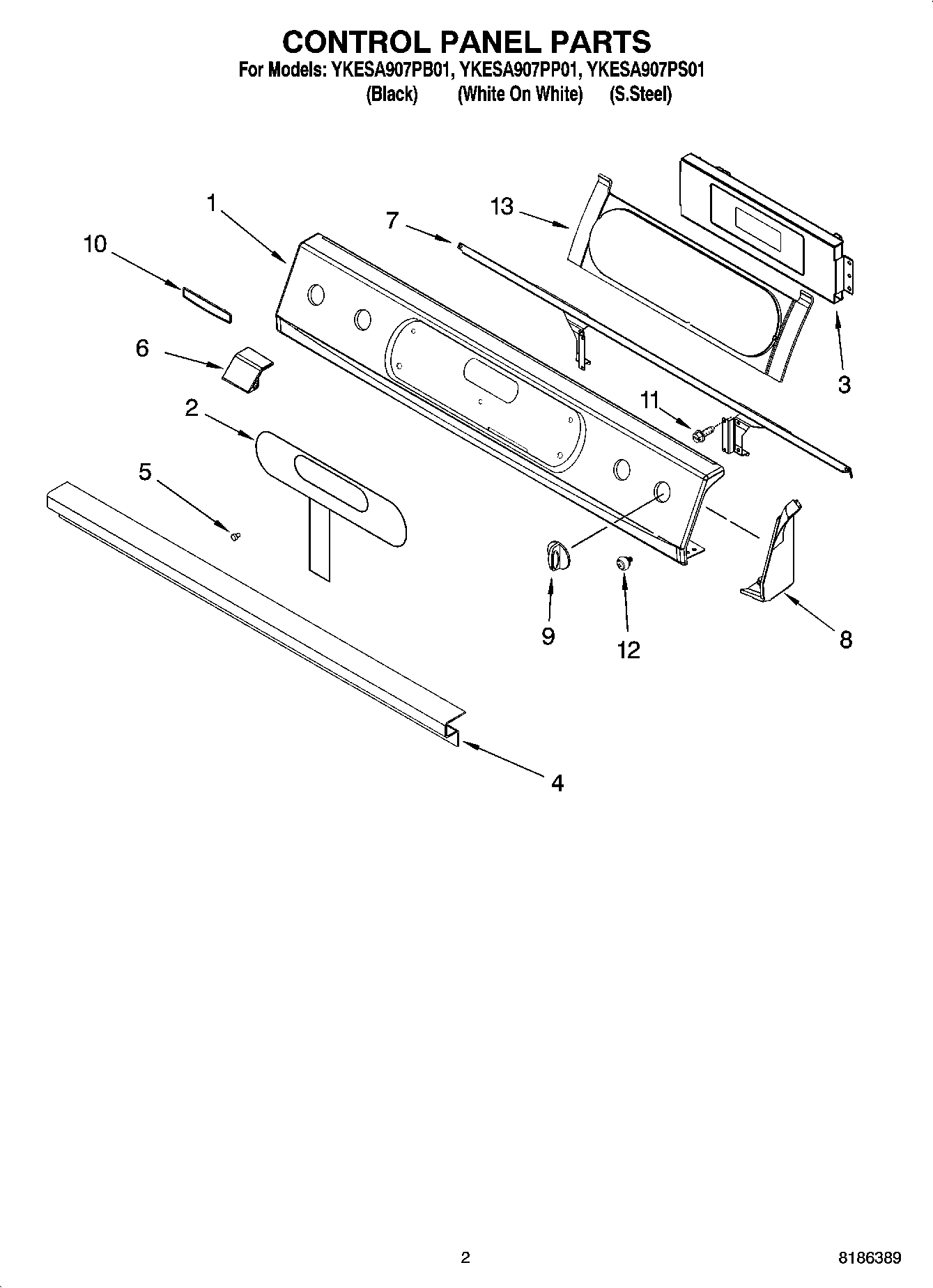

YKESA907PB01 02 – CONTROL PANEL PARTS

Products

Position	Product
1	Control Panel (White)
1	Control Panel (Biscuit)
1	Control Panel (Black)
1	Control Panel (S.Steel)
2	WP3400832 Whirlpool Screw
2	WP9756595ES Whirlpool Membrane Switch
2	Membrane Switch (Black)
2	Membrane Switch (Biscuit)
2	Membrane Switch (White)
3	Control, Interface
3	Screw
4	Bracket, Console
4	Screw (4)
5	WP3196068 Whirlpool Light Lens
6	Insert, Console (R.Hand)
6	Insert, Console (L.Hand)
7	Bracket, User Interface
8	Endcap (White LH)
8	Endcap (Cashmere Metal LH)
8	Endcap (Black LH)
8	Endcap (White RH)
8	Endcap (Cashmere Metal RH)
8	Endcap (Black RH)
8	3196172 Whirlpool Oven Screw
9	Knob (Black)
9	Knob (BIscuit)
9	Knob (White)
9	Knob (Cashmere Metal)
10	Palnut
10	Nameplate (White)
10	Nameplate (Biscuit)
10	Nameplate (Black)
11	WP486579 Whirlpool Air Conditioner Screw
12	Bushing
13	Insert, Membrane
