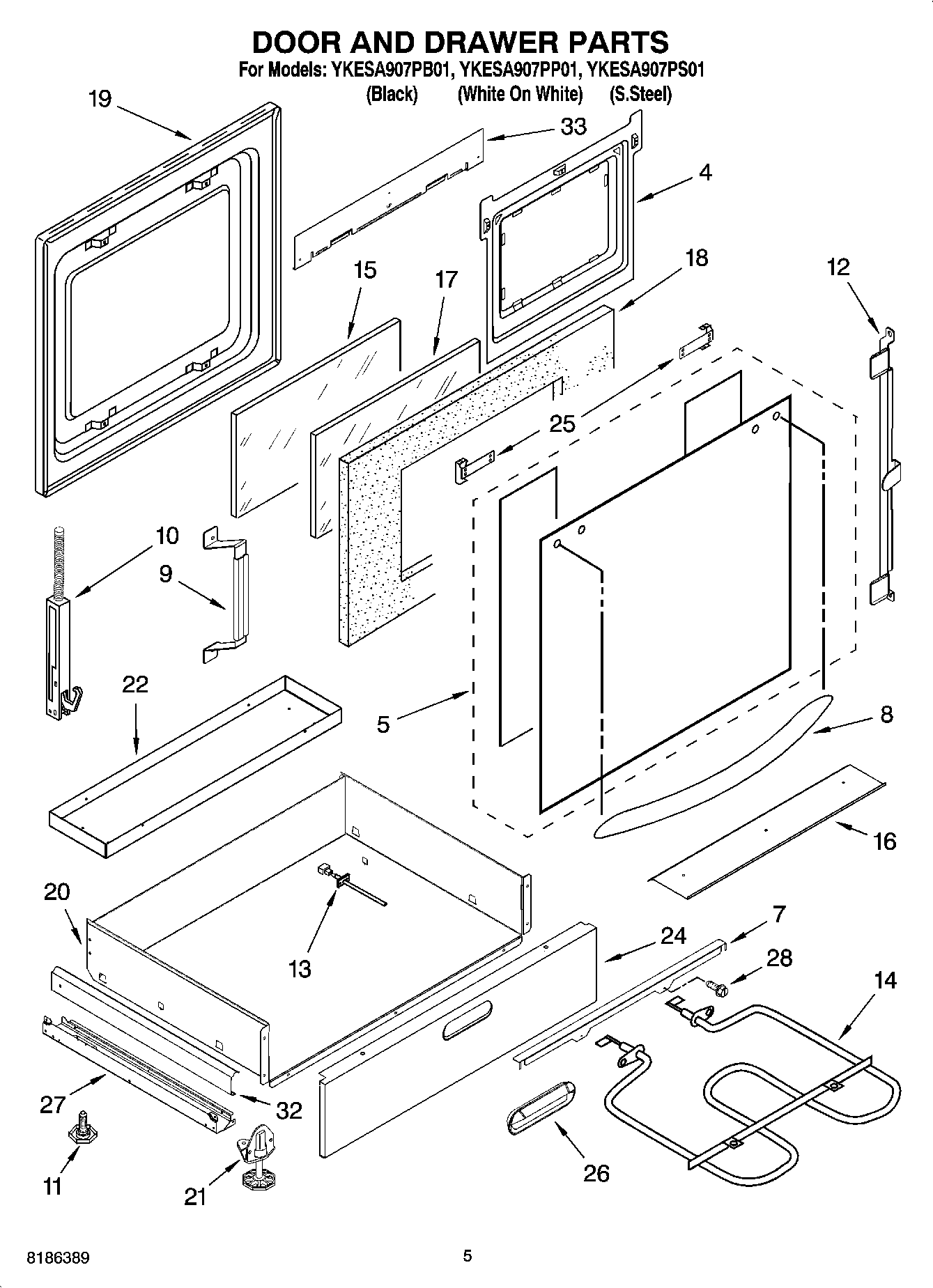

YKESA907PB01 04 – DOOR AND DRAWER PARTS

Products

Position	Product
4	WP4457132 Whirlpool Retainer
5	Glass, Door Front (White)
5	Glass, Door Front (Black)
5	Glass, Door Front (S.Steel)
7	Support, Element
8	Handle, Door (S.Steel)
8	Handle, Door (White)
8	Handle, Door (Black)
9	Bracket, Central
10	WP9760579 Whirlpool Right Door Hinge
10	HINGE-DOOR LH/SS DOOR SPRING
11	WPW10058460 Whirlpool Appliance Levelling Leg
12	WP9759229 Whirlpool Mounting Bracket
13	WP3196557 Whirlpool Screw
13	WP8274149 Whirlpool Sensor Assembly
14	9760775 Whirlpool Oven Warm Element
14	WP4449809 Whirlpool Screw
15	WP9757706 Whirlpool Door Inner Glass
16	4457114 Whirlpool Oven Heat Shield
17	WP4449263 Whirlpool Inner Door Glass
18	WP4451722 Whirlpool Door Insulation Assembly
19	WP9759413 Whirlpool Door Liner
20	Drawer Assy
21	WP3196037 Whirlpool Leveling Foot
21	WP4449743 Whirlpool Screw
22	Panel, Drawer
24	Front, Drawer (S.Steel)
24	Front, Drawer (Black)
24	Front, Drawer (White)
25	Bracket, Handle (R.Hand)
25	Bracket, Handle (L.Hand)
25	WP8533988 Whirlpool Screw Fastener
26	Handle, Drawer (Black)
26	Handle, Drawer (White)
26	Handle, Drawer (S.Steel)
27	Side, Base (R.Side)
27	Side, Base (L.Side)
28	SCREW
32	WPW10155632 Whirlpool Slide Drawer Assembly
32	WPW10155633 Whirlpool Drawer Slide Rail
33	Shield, Heat Top
