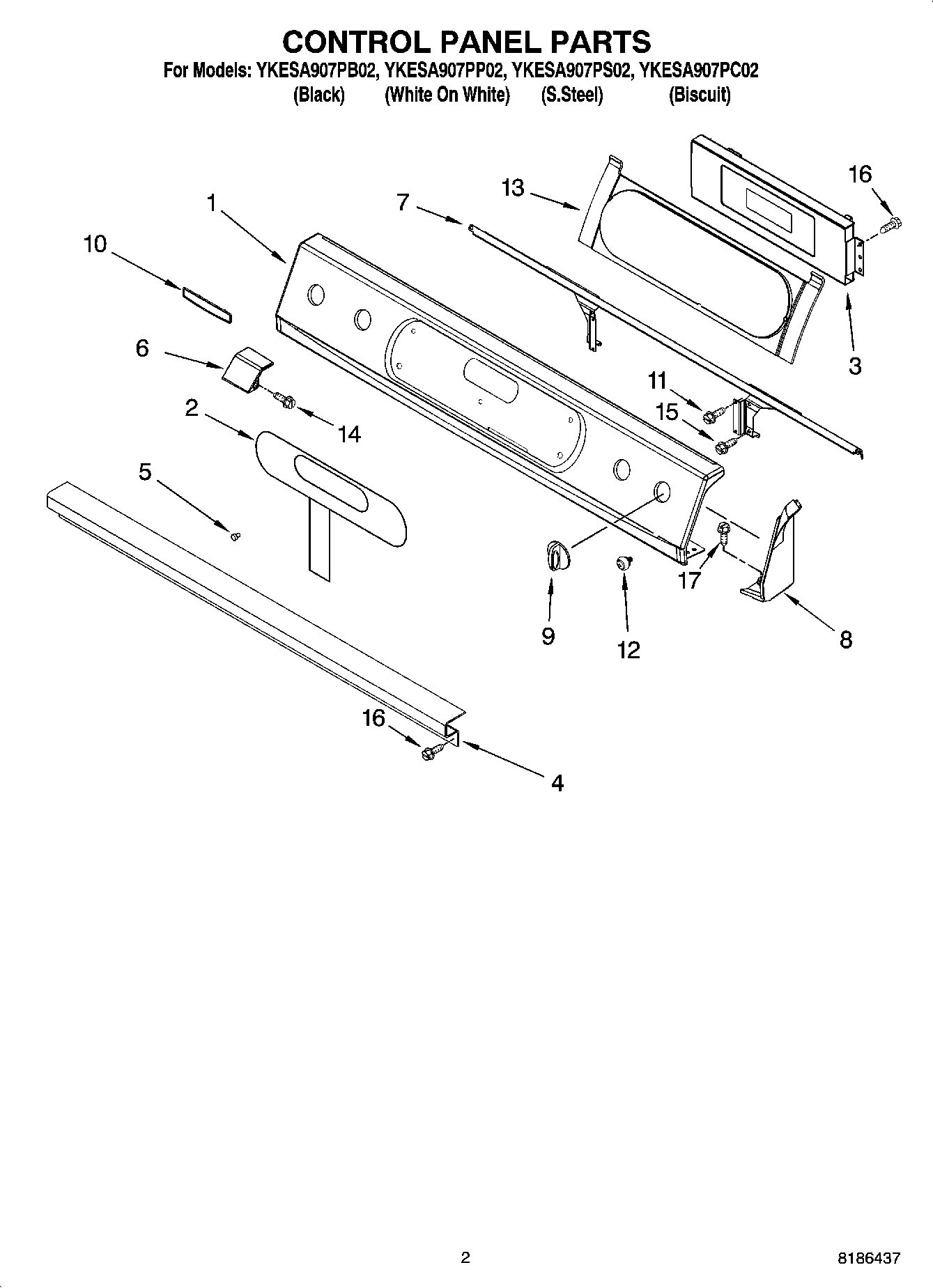

YKESA907PB02 02 – CONTROL PANEL PARTS

Products

Position	Product
1	Control Panel (White)
1	Control Panel (S.Steel)
1	Control Panel (Biscuit)
1	Control Panel (Black)
2	WP9756595ES Whirlpool Membrane Switch
2	Membrane Switch (Black)
2	Membrane Switch (Biscuit)
2	Membrane Switch (White)
3	Control, Interface
4	Bracket, Console
5	WP3196068 Whirlpool Light Lens
6	Insert, Console (L.Hand)
6	Insert, Console (R.Hand)
7	Bracket, User Interface
8	Endcap (White LH)
8	Endcap (Cashmere Metal LH)
8	Endcap (Black RH)
8	Endcap (Cashmere Metal RH)
8	Endcap (White RH)
8	Endcap (Biscuit LH)
8	Endcap (Black LH)
8	Endcap (Biscuit RH)
9	Knob (Black)
9	Knob (BIscuit)
9	Knob (White)
9	Knob (Cashmere Metal)
10	Palnut
10	Nameplate (White)
10	Nameplate (Biscuit)
10	Nameplate (Black)
11	WP486579 Whirlpool Air Conditioner Screw
12	9757778 Whirlpool Oven Bushing
13	Insert, Membrane
15	WP4449745 Whirlpool Screw
16	WP3196557 Whirlpool Screw
17	3196172 Whirlpool Oven Screw
