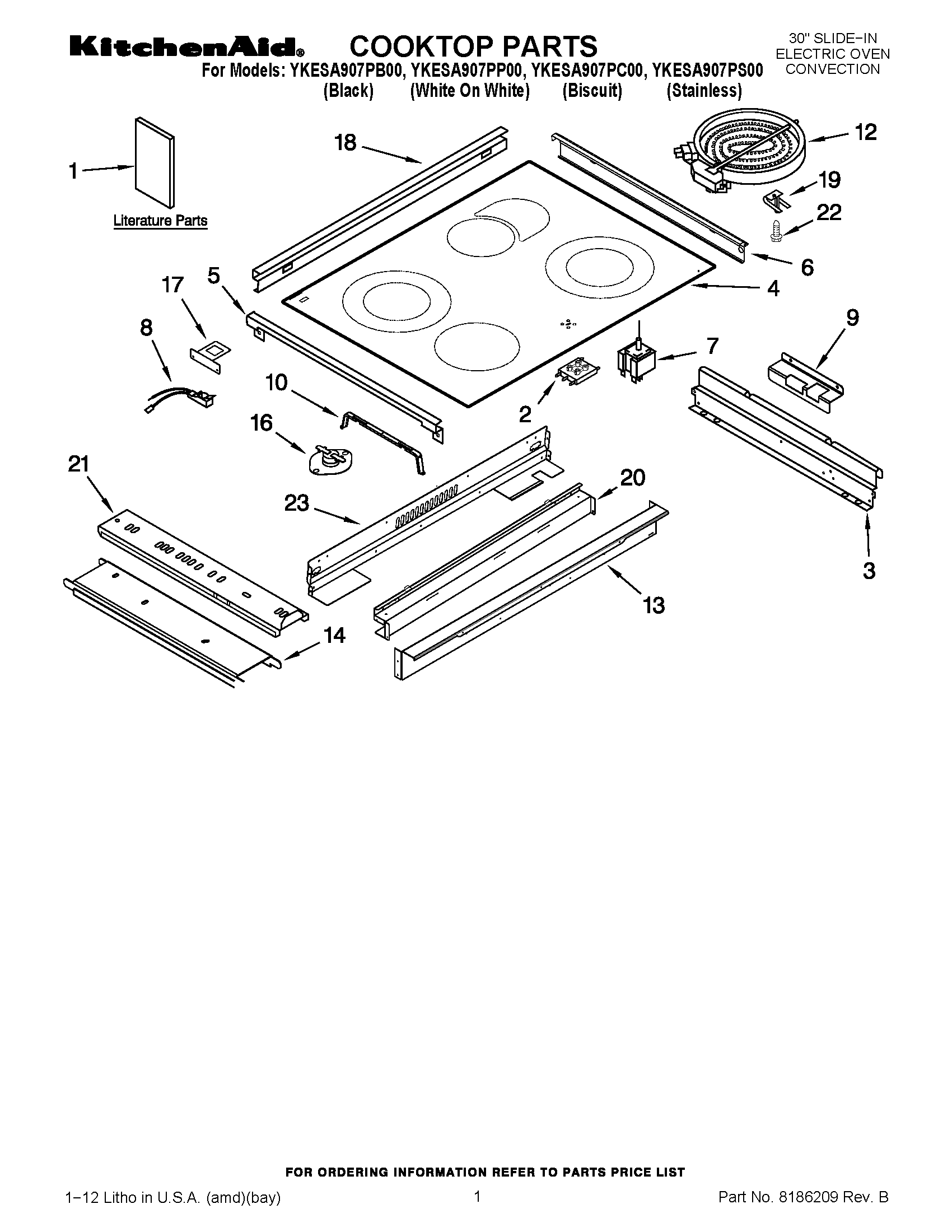

YKESA907PC00 01 – COOKTOP PARTS

Products

Position	Product
1	Anti-Tip Instruct.
1	Use & Care Guide (French)
1	Safe Cooking Tips
1	Tech Sheet
1	Use & Care Guide
1	Installation Instructions
2	Light, Indicator (Hot Surface)
3	Bracket, Mounting
4	Cooktop (White)
4	Cooktop (S.Steel)
4	Cooktop (Black)
4	Cooktop (Biscuit)
4	Gasket
5	Clip, Ceran (2)
6	Trim-CkTop, SI (Black LH)
6	Trim-CkTop, SI (White LH)
6	Trim-CkTop, SI (White RH)
6	Trim-CkTop, SI (S.Steel RH)
6	TRIM, COOKTOP (RIGHT) (BISCUIT)
6	TRIM, COOKTOP (LEFT) (BISCUIT)
6	Trim-CkTop, SI (Black RH)
6	Trim-CkTop, SI (S.Steel LH)
7	Switch, Infinite (LF, RR, LR)
7	Switch, Infinite (RF)
8	Light, Indicator
9	Support (R.Hand)
9	Support (L.Hand)
10	WP4449809 Whirlpool Screw
10	WP9756821 Whirlpool Support
12	W10823698 Whirlpool Surface Element Right Rear
12	W10823730 Whirlpool Surface Element
12	W10823692 Whirlpool Dual Radiant Element
13	Bracket, Front Support
14	Rail, Element (2) (Center (1))
16	WP9759944 Whirlpool Thermostat
17	Bracket, Ind. Lamp
18	W10491985 Whirlpool Screw
18	Trim, Cooktop Rear (White)
18	Trim, Cooktop Rear (S.Steel)
18	Trim, Cooktop Rear (Black)
18	Trim. Cooktop Rear (Biscuit)
19	Spring, Locator
20	Bracket, Rear Sprt
20	WP3196557 Whirlpool Screw
21	Rail, Element (2)
23	Cover
23	Screw (4)
