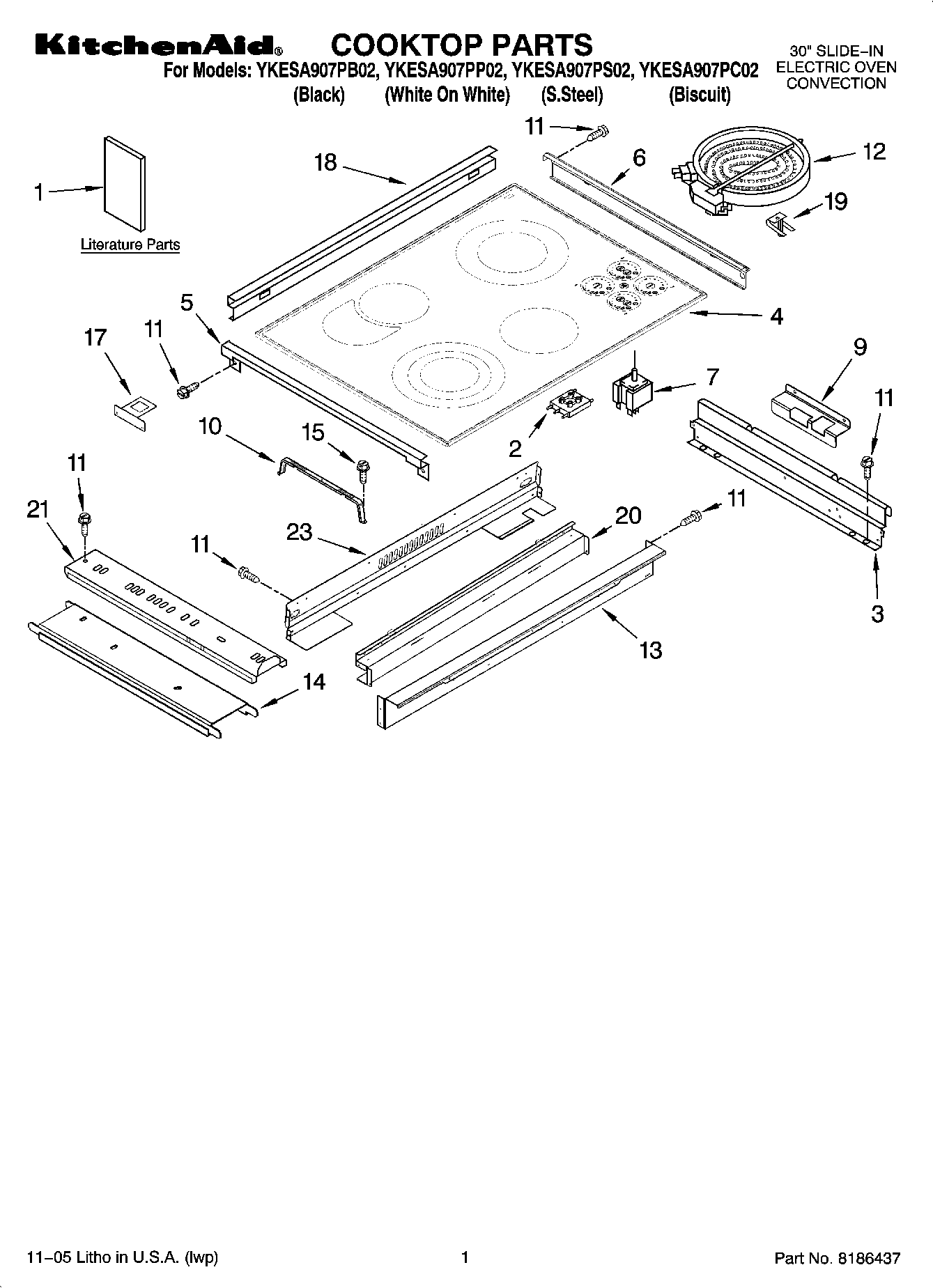

YKESA907PC02 01 – COOKTOP PARTS

YKESA907PC02 01 – COOKTOP PARTS

Written by

in

YKESA907PC02 01 – COOKTOP PARTS

Products

PositionProduct
1Safe Cooking Tips (French)
1Use & Care Guide (French)
1Guide, Easy Set (French)
1Use & Care Guide
1Installation Instructions
1Tech Sheet
1Anti-Tip Instruct.
1Guide, Easy Set
1Safe Cooking Tips
2Light, Indicator (Hot Surface)
3Bracket, Mounting
4Cooktop (S.Steel)
4Cooktop (White)
4Gasket
4Cooktop (Biscuit)
4Cooktop (Black)
5Clip, Ceran (2)
6Trim-CkTop, SI (S.Steel RH)
6Trim-CkTop, SI (Black RH)
6Trim-CkTop, SI (White RH)
6Trim-CkTop, SI (S.Steel LH)
6Trim-CkTop, SI (White LH)
6Trim-CkTop, SI (Black LH)
6Trim-CkTop, SI (Biscuit LH)
6Trim-CkTop, SI (Biscuit RH)
7WP9763759 Whirlpool Appliance Infinite Switch
7WP9763760 Whirlpool Infinite Switch
9Support (L.Hand)
9Support (R.Hand)
10WP9756821 Whirlpool Support
12W10823730 Whirlpool Surface Element
12W10823692 Whirlpool Dual Radiant Element
12W10823698 Whirlpool Surface Element Right Rear
13Bracket, Front Support
14Rail, Element (2) (Center (1))
15WP4449809 Whirlpool Screw
17Bracket, Ind. Lamp
18Trim, Cooktop Rear (Biscuit)
18Trim. Cooktop Rear (S.Steel)
18Trim, Cooktop Rear (Black)
18Trim, Cooktop Rear (White)
18W10491985 Whirlpool Screw
199759094 Whirlpool Spring
20WP3196557 Whirlpool Screw
20Bracket, Rear Sprt
21Rail, Element (2) (Side (3))
23Cover, Cktp Rear
