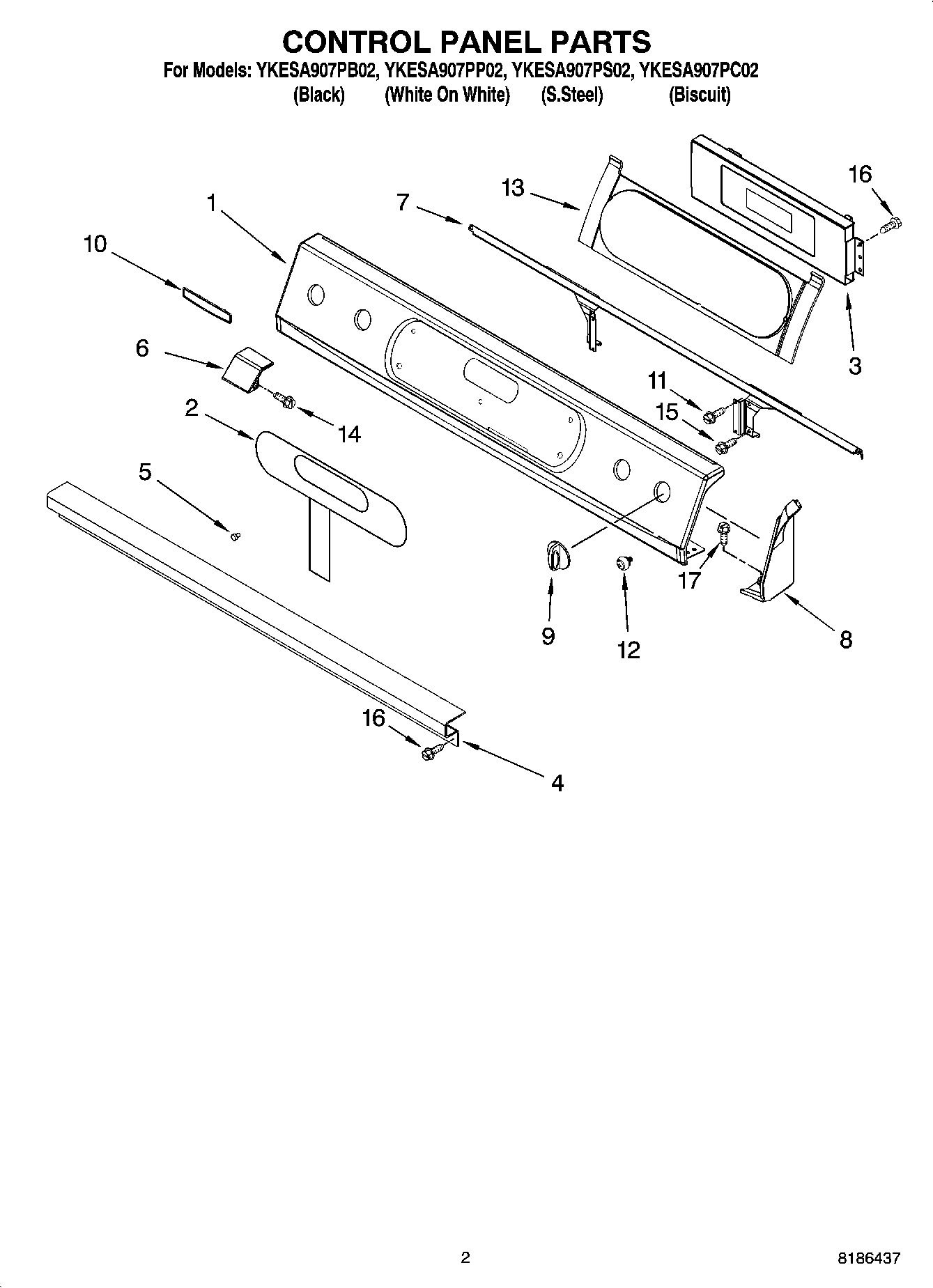

YKESA907PC02 02 – CONTROL PANEL PARTS

YKESA907PC02 02 – CONTROL PANEL PARTS

Written by

in

YKESA907PC02 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Control Panel (White)
1Control Panel (S.Steel)
1Control Panel (Biscuit)
1Control Panel (Black)
2WP9756595ES Whirlpool Membrane Switch
2Membrane Switch (Black)
2Membrane Switch (Biscuit)
2Membrane Switch (White)
3Control, Interface
4Bracket, Console
5WP3196068 Whirlpool Light Lens
6Insert, Console (L.Hand)
6Insert, Console (R.Hand)
7Bracket, User Interface
8Endcap (White LH)
8Endcap (Cashmere Metal LH)
8Endcap (Black RH)
8Endcap (Cashmere Metal RH)
8Endcap (White RH)
8Endcap (Biscuit LH)
8Endcap (Black LH)
8Endcap (Biscuit RH)
9Knob (Black)
9Knob (BIscuit)
9Knob (White)
9Knob (Cashmere Metal)
10Palnut
10Nameplate (White)
10Nameplate (Biscuit)
10Nameplate (Black)
11WP486579 Whirlpool Air Conditioner Screw
129757778 Whirlpool Oven Bushing
13Insert, Membrane
15WP4449745 Whirlpool Screw
16WP3196557 Whirlpool Screw
173196172 Whirlpool Oven Screw
