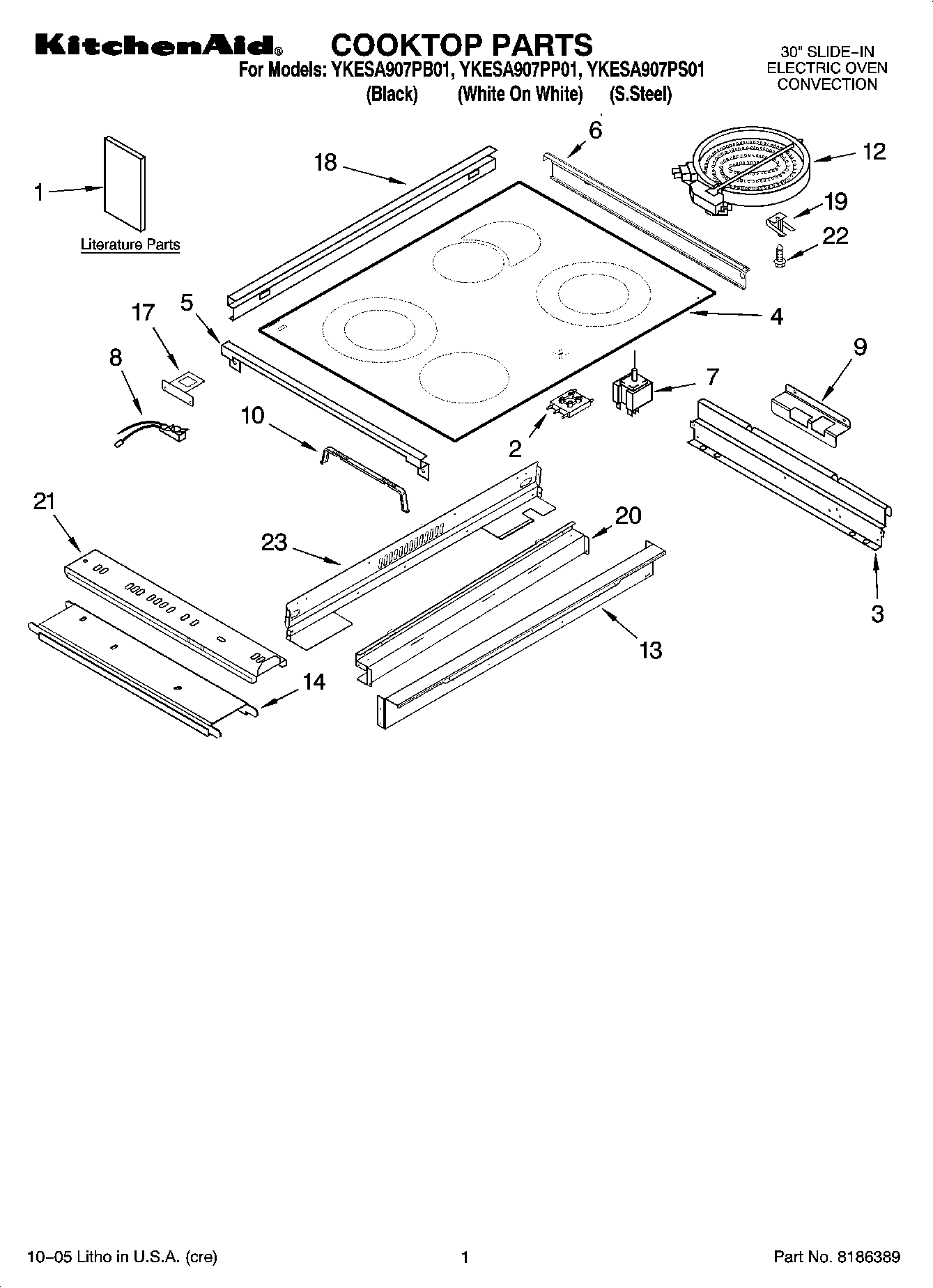

YKESA907PP01 01 – COOKTOP PARTS

YKESA907PP01 01 – COOKTOP PARTS

Written by

in

YKESA907PP01 01 – COOKTOP PARTS

Products

PositionProduct
1Installation Instructions
1Anti-Tip Instruct.
1Guide, Easy Set
1Safe Cooking Tips
1Safe Cooking Tips (French)
1Tech Sheet
1Use & Care Guide
1Guide, Easy Set (French)
1Use & Care Guide (French)
2Light, Indicator (Hot Surface)
3Bracket, Mounting
4Cooktop (S.Steel)
4Cooktop (Biscuit)
4Cooktop (Black)
4Gasket
4Cooktop (White)
5Clip, Ceran (2)
6Trim-CkTop, SI (White RH)
6Trim-CkTop, SI (Black LH)
6Trim-CkTop, SI (S.Steel LH)
6Trim-CkTop, SI (Black RH)
6Trim-CkTop, SI (White LH)
6Trim-CkTop, SI (S.Steel RH)
7Switch, Infinite (LF, RR, LR)
7Switch, Infinite (RF)
8Light, Indicator
9Support (L.Hand)
9Support (R.Hand)
10WP9756821 Whirlpool Support
10WP4449809 Whirlpool Screw
12W10823730 Whirlpool Surface Element
12W10823698 Whirlpool Surface Element Right Rear
12W10823692 Whirlpool Dual Radiant Element
13Bracket, Front Support
14Rail, Element (2) (Center (1))
17Bracket, Ind. Lamp
18Trim, Cooktop Rear (Black)
18Trim, Cooktop Rear (White)
18W10491985 Whirlpool Screw
18Trim. Cooktop Rear (S.Steel)
199759094 Whirlpool Spring
20WP3196557 Whirlpool Screw
20Bracket, Rear Sprt
21Rail, Element (2)
23Screw (4)
23Cover, Cktp Rear
