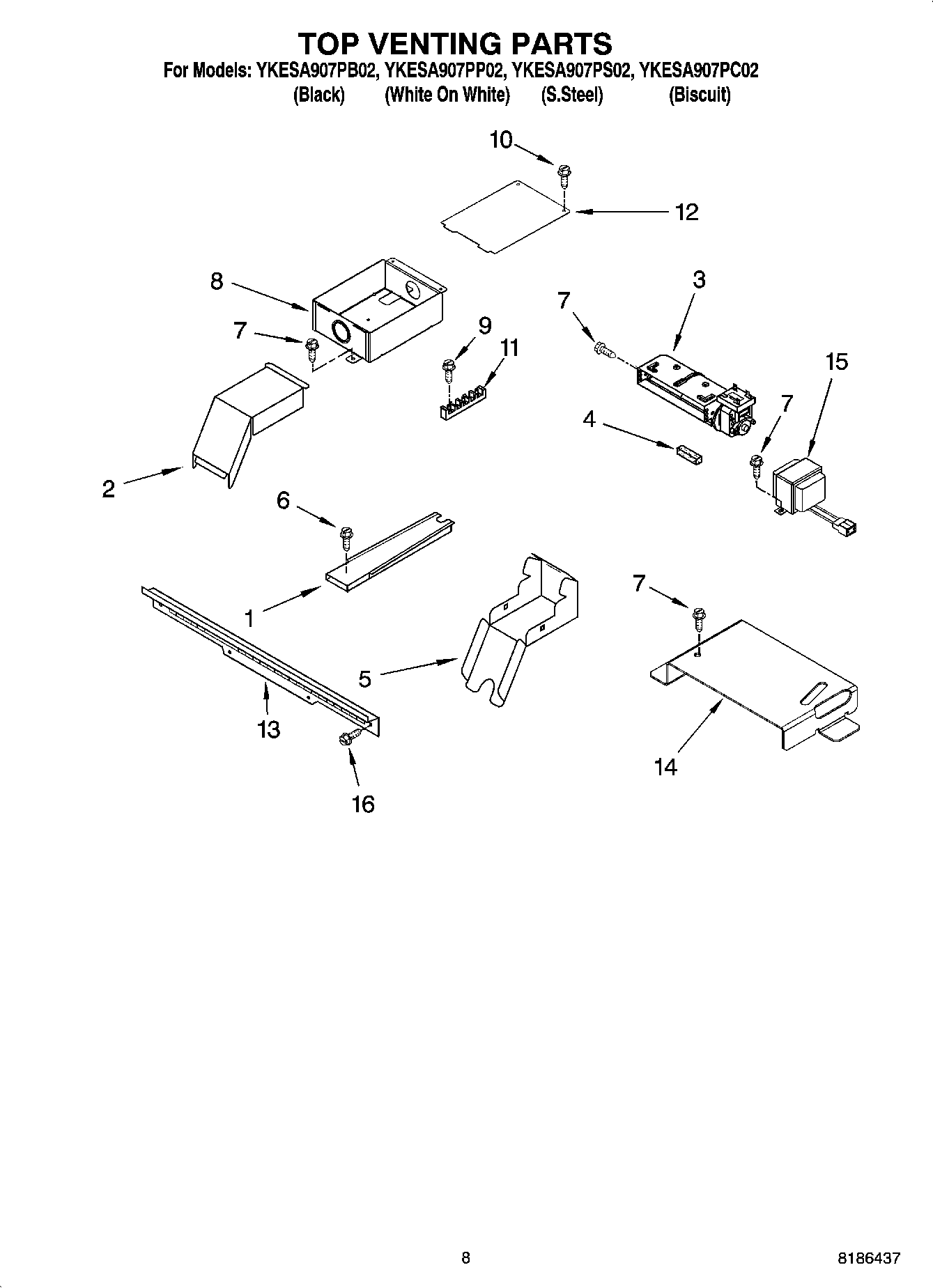

YKESA907PS02 06 – TOP VENTING PARTS, OPTIONAL PARTS

Products

Position	Product
	WIRING HARNESS PAR
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 150 c Yellow)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Blue)
	WP261869 Whirlpool Microwave Paint
	242831 Whirlpool Oven Wire
	WPL 9760531
	Wire (14 Ga. 200 c Brown)
	SPLICING WIRES–25FT. LENGTH
	ADHESIVE
	Conduit
	Cord, Power
	WP9759877 Whirlpool Retainer
	261900 Whirlpool Microwave Spray
	WPL ARI138192A
	WPL 591014
	WPL 9762523
	Harness,
	Harness, Wire
	4448664 Whirlpool Oven Mounting Bracket
	WP112432 Whirlpool Nut Assembly
	Wire, 25` Roll (Red 14 Ga.)
	350930 Whirlpool White Spray Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	WP4449809 Whirlpool Screw
	Wire, 25` Roll (Black 14 Ga.)
	WP3400015 Whirlpool Screw
	4450800 Whirlpool Oven Screw
	285006 Whirlpool Spray
	Clip, Ground Wire
	72032 Whirlpool Touch Up Paint Black
	WP482338 Whirlpool Refrigerator Adhesive
	814381 Whirlpool Pin
	Spacer, Harness
	WP4448950 Whirlpool Screw
	W11447673 Whirlpool Range Tip Anchor
1	4451759 Whirlpool Oven Exhaust Vent
2	4455178 Whirlpool Oven Top Elbow
3	WP4455352 Whirlpool Mounting Bracket
3	W10810687 Whirlpool Blower Assembly
4	W10491987 Whirlpool Foam Seal
5	4455177 Whirlpool Oven Bottom Elbow
6	Screw
8	Box, Terminal
9	Screw
10	W10491985 Whirlpool Screw
11	WP8203546 Whirlpool Terminal Block
12	Cover, Terminal Box
13	Vent, (Control Panel)
14	WP9757829 Whirlpool Mounting Bracket
15	Transformer
16	WP4450038 Whirlpool Screw
