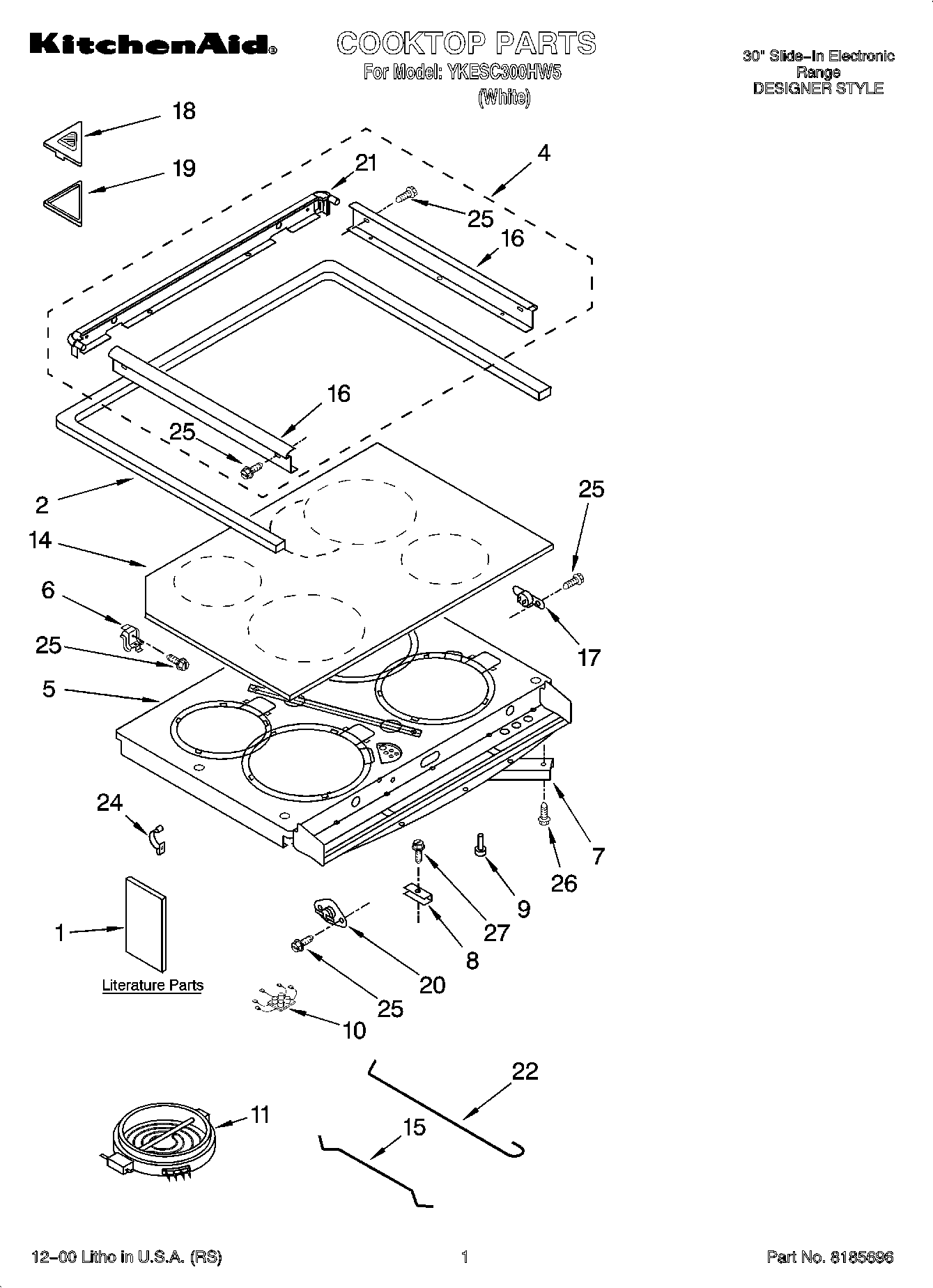

YKESC300HW5 01 – COOKTOP PARTS

YKESC300HW5 01 – COOKTOP PARTS

Written by

in

YKESC300HW5 01 – COOKTOP PARTS

Products

PositionProduct
1Literature Parts (Use & Care Guide (French))
1Literature Parts (Wiring Diagram)
1Literature Parts (Installation Instructions)
1SMART & EASY GUIDE (FRENCH)
1Literature Parts (Use & Care Guide)
1WPL LIT9753027
1WPL LIT9752775
1Literature Parts (Smart & Easy Guide)
2Gasket, Cooktop
4Frame, Cooktop (White)
5Support, Element
6Washer, Pivot
6Bracket, Pivot
7Brace, Support
8Support Clips (4)
9238614 Whirlpool Bumper Hinge
10Hot Light
11W10823699 Whirlpool Right Front Surface Element
11W10823697 Whirlpool Surface Element
11W10823692 Whirlpool Dual Radiant Element
11W10823698 Whirlpool Surface Element Right Rear
14Cooktop, Ceran (White)
15Rod, Small Ceran Element
16Trim, Side Frame (White)
17Thermostat SPST (205)
18Cover, Vent
19Gasket, Vent Cover
20WP9759944 Whirlpool Thermostat
21Trim, Rear (Includes End Caps) (White)
22Rod, Large Ceran Element
248528351 Whirlpool Clip
25WP4159387 Whirlpool Compactor Screw
26Screw (4) 10 x 1/2
27Screw, 10-16 x 1
