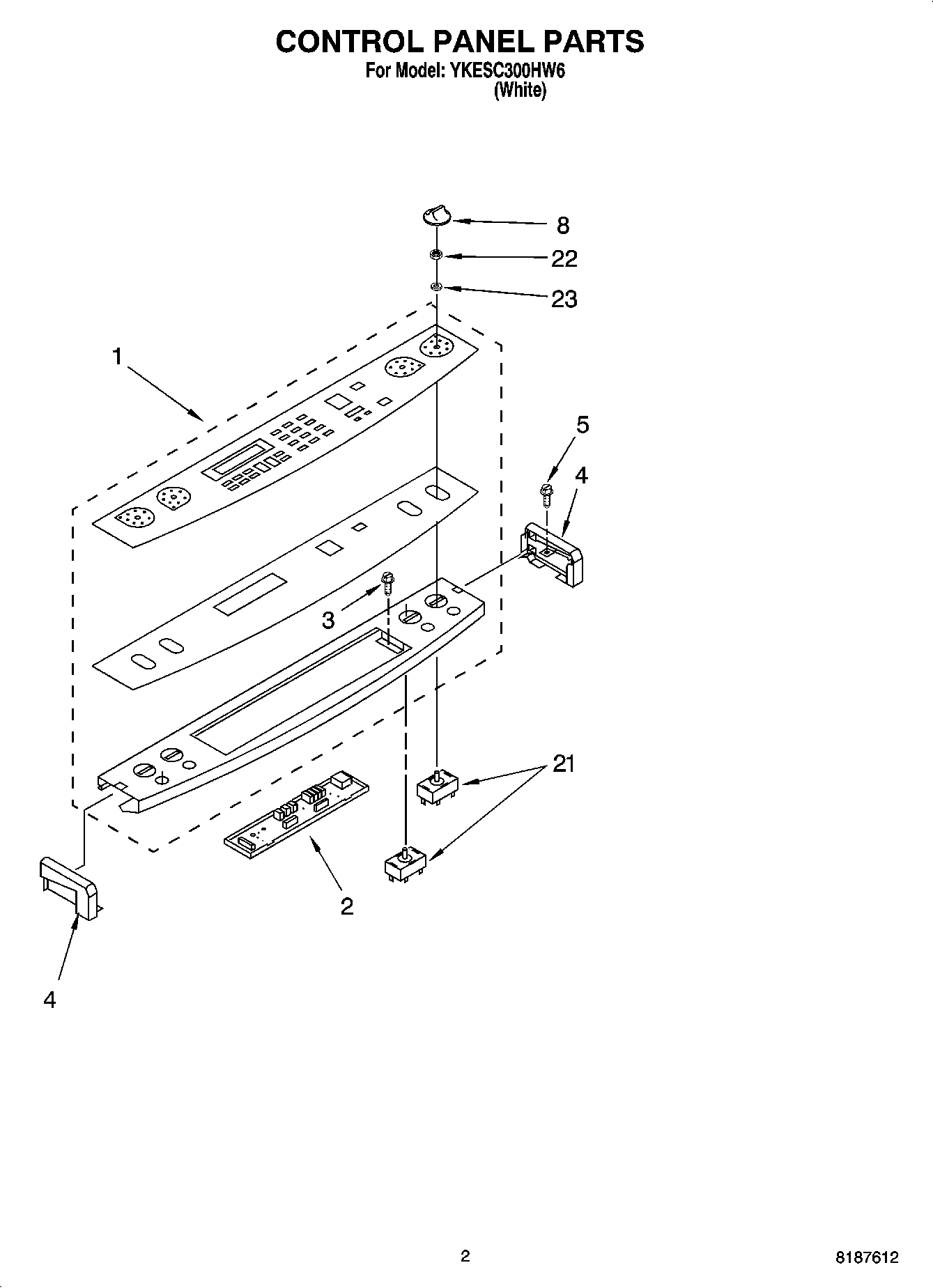

YKESC300HW6 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Console, Glass (White)
2Timer, Electronic
3Screw
4(End Cap Left Hand) (White)
4End Cap (Right Hand) (White)
5WP4159387 Whirlpool Compactor Screw
8WP9750372FW Whirlpool Knob Assembly
21Switch, Infinite (2100-2600W, LF)
21Switch, Infinite (1700W, RF)
21Switch, Infinite (1250-1500W, LR)
21WP9755175 Whirlpool Infinite Switch
22Nut, Mounting (Single Element)
22Nut, Mounting (Dual Element)
23Seal, Switch (4)
